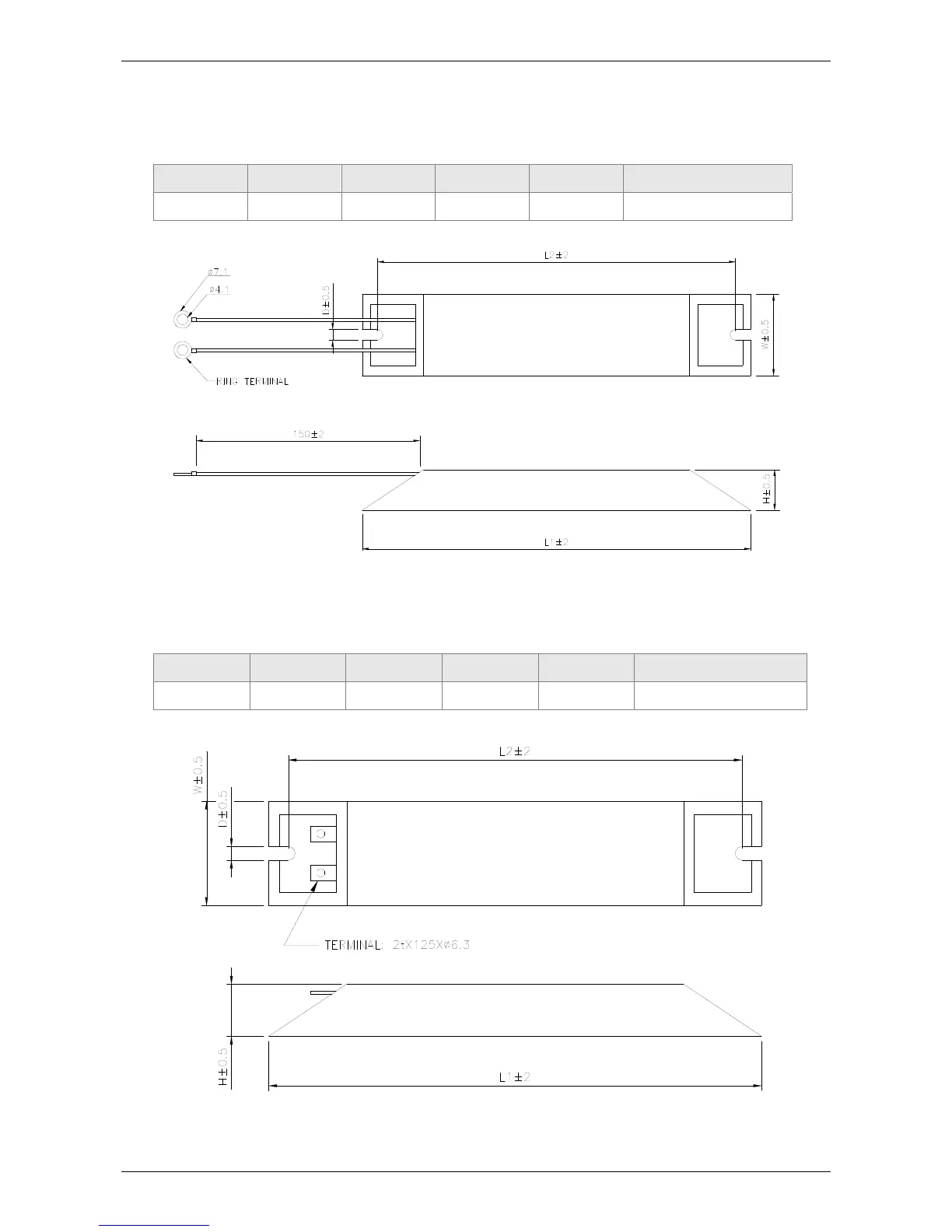

Dimensions of Regenerative Resistor
Delta Part Number：BR400W040 (400W 40Ω)
L1 L2 H D W MAX. WEIGHT (g)
265 250 30 5.3 60 930
Delta Part Number：BR1K0W020 (1kW 20Ω)
L1 L2 H D W MAX. WEIGHT (g)
400 385 50 5.3 100 2800

Delta ASDA-A2 Specifications

General

Control Mode	Position, Speed, Torque
Model	ASDA-A2 Series
Operating Voltage	200 ~ 230VAC / 380 ~ 480VAC
Power Supply	200-230VAC ±10%, single-phase
Communication Interface	RS-485, CANopen
Feedback	Incremental encoder, Absolute encoder
Protection	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	0°C
Storage Temperature	-20°C
Humidity	20% to 90% RH (non-condensing)
Position Control Mode Features	Electronic Cam
Weight	Varies depending on the model. Please refer to the specific model's datasheet.
