11.4 Overload Features
Definition of overload protection
The overload protection is to prevent the motor in overheat status.
Cause of overload
1) When the motor operates over the rated torque, the operation time is too long
2) The inertia ratio is set too big and frequently accelerate / decelerate
3) Connection error between the power cable and encoder wiring
4) Servo gain setting error and cause resonance of the motor
5) The motor with brake operates without releasing the brake

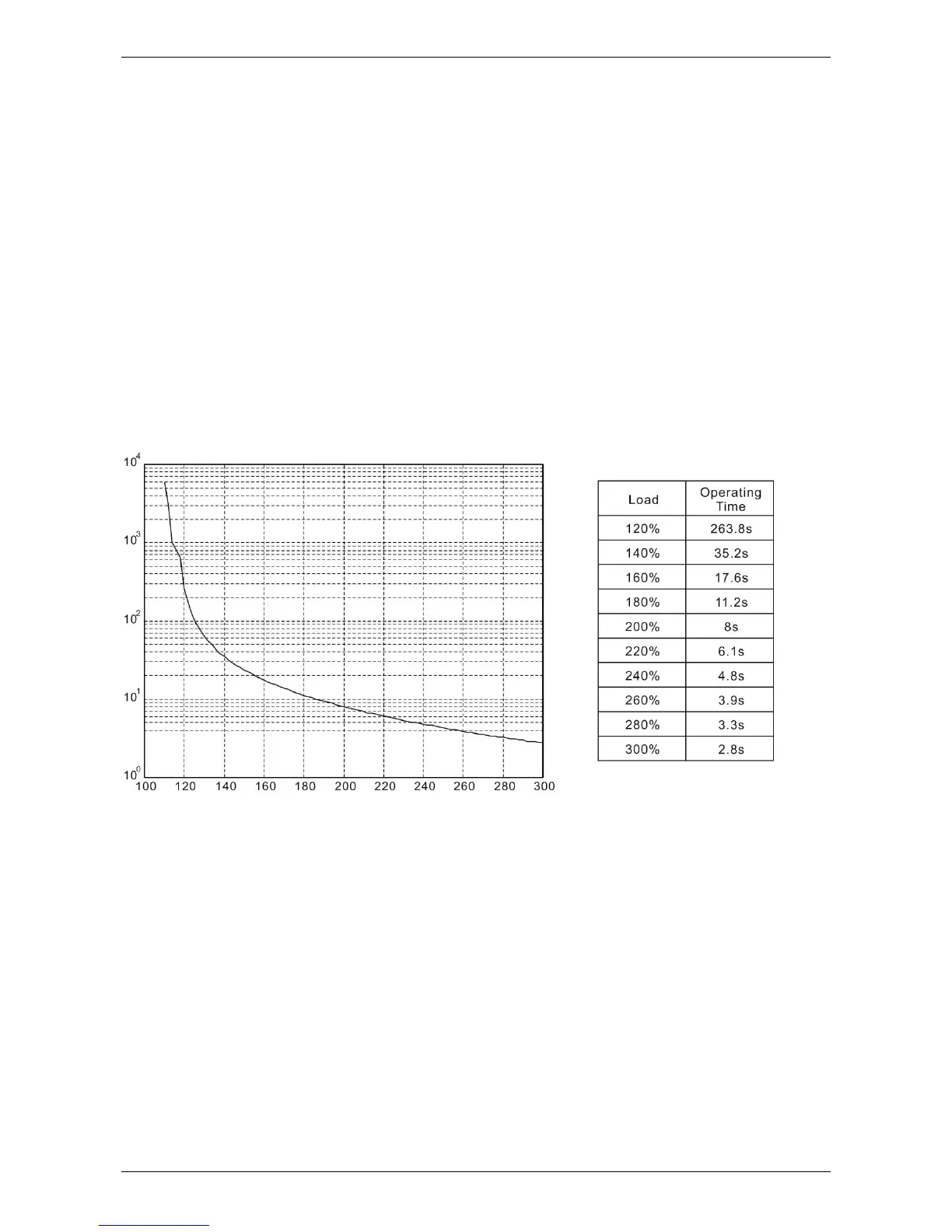

The graph of load and operating time
Low Inertia Series (ECMA C1, J1 Series)

Delta ASDA-A2 Specifications

General

Control Mode	Position, Speed, Torque
Model	ASDA-A2 Series
Operating Voltage	200 ~ 230VAC / 380 ~ 480VAC
Power Supply	200-230VAC ±10%, single-phase
Communication Interface	RS-485, CANopen
Feedback	Incremental encoder, Absolute encoder
Protection	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	0°C
Storage Temperature	-20°C
Humidity	20% to 90% RH (non-condensing)
Position Control Mode Features	Electronic Cam
Weight	Varies depending on the model. Please refer to the specific model's datasheet.
