Delta ASDA-A2 User Manual

Chapter 2 Installation ASDA-A2
Revision February, 2017 2-3

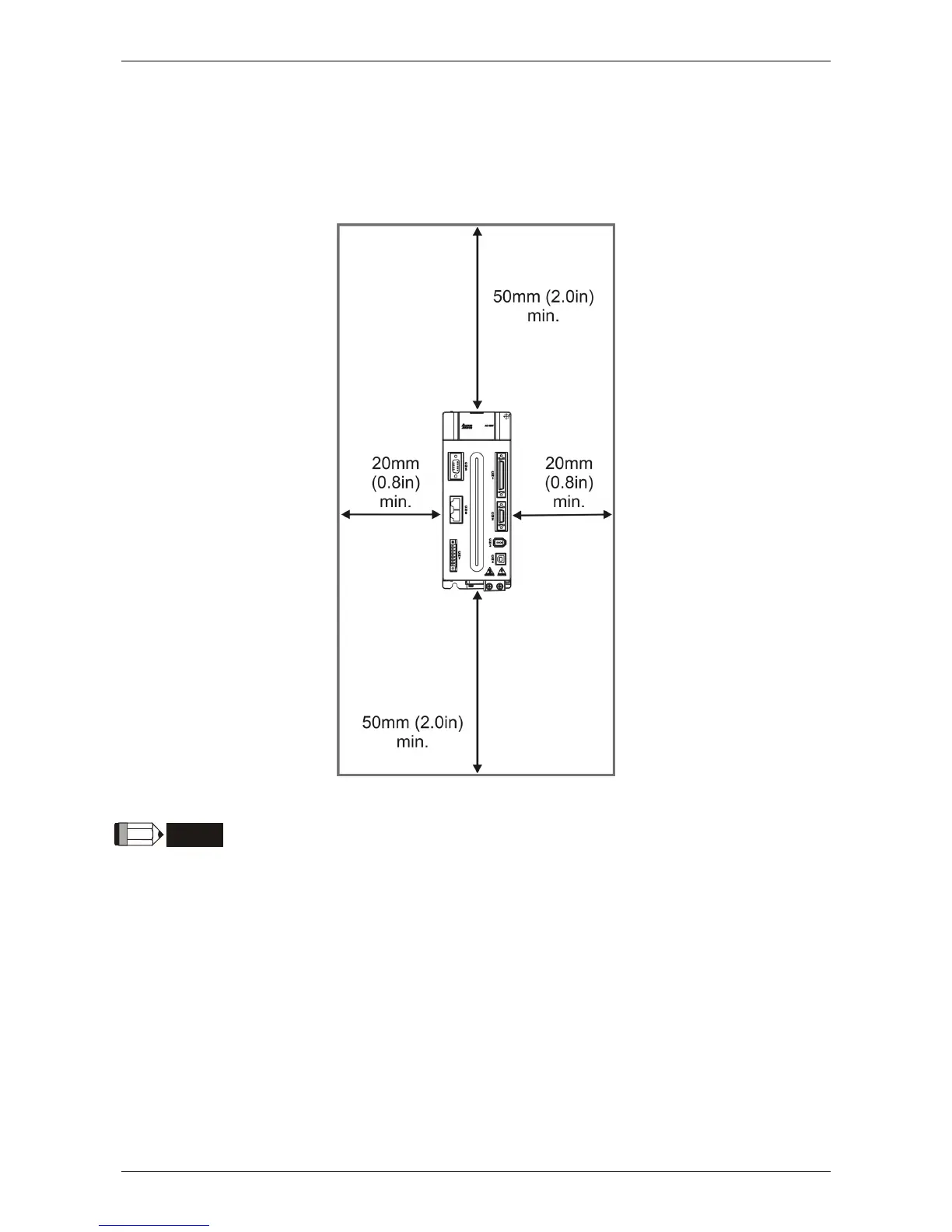

Scheme of Installation:
In order to have smaller wind resistance of the fan and increase the ventilation, please follow the
suggested clearance value when installing one or more than one servo drives. (Refer to the
following diagrams)
NOTE
The above diagrams are not in equal proportion. Please refer to the
annotation.

Delta ASDA-A2 Specifications

General

Control Mode	Position, Speed, Torque
Model	ASDA-A2 Series
Operating Voltage	200 ~ 230VAC / 380 ~ 480VAC
Power Supply	200-230VAC ±10%, single-phase
Communication Interface	RS-485, CANopen
Feedback	Incremental encoder, Absolute encoder
Protection	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	0°C
Storage Temperature	-20°C
Humidity	20% to 90% RH (non-condensing)
Position Control Mode Features	Electronic Cam
Weight	Varies depending on the model. Please refer to the specific model's datasheet.
