Delta ASDA-A2 User Manual

ASDA-A2 Chapter 6 Control Mode of Operation
Revision February, 2017 6-13

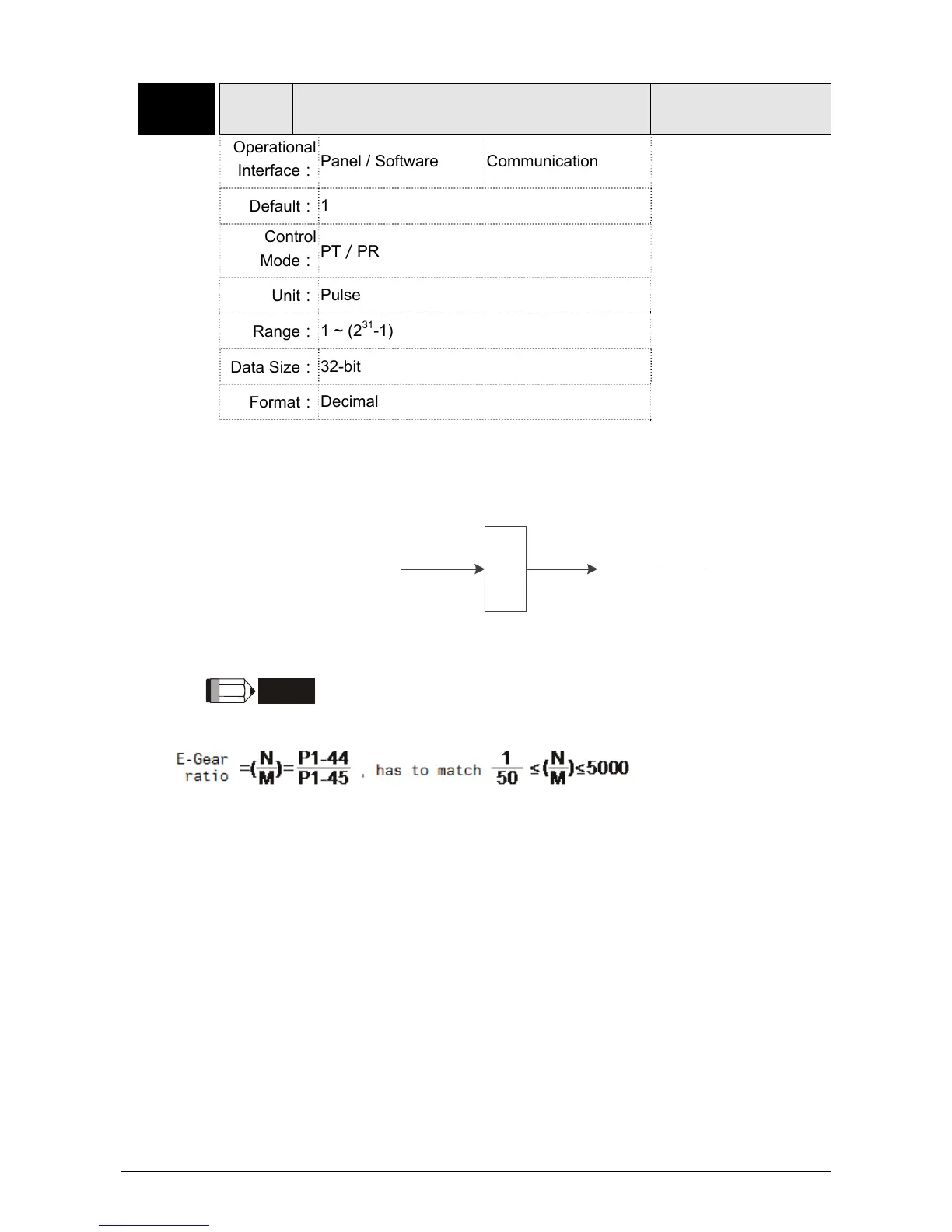

P1-45 GR2 Gear Ratio (Denominator) (M)
Address: 015AH
015BH
Operational
Interface：
Panel / Software Communication
Related Section:
6.2.5
Default：
1
Control
Mode：
PT／PR
Unit：
Pulse
Range：
1 ~ (2
31
-1)
Data Size：
32-bit
Format：
Decimal
Settings：
If the setting is wrong, the servo motor will easily have sudden
unintended acceleration.
Please follow the rules for setting:
The setting of pulse input:
Range of command pulse input: 1／50＜Nx／M＜25600
NOTE
1） The setting value cannot be changed when Servo ON neither in
PT nor in PR mode.
Electronic gear provides simple ratio change of travel distance. The high electronic gear ratio
would cause the position command to be the stepped command. S-curve or low-pass filter can
be used to improve the situation. When electronic gear ratio is set to 1, the motor will turn one
cycle for every 10000PUU. When electronic gear ratio is changed to 0.5, then every two pulses
from the command will be refer to one PUU of motor encoder.
Pulse
input
f1
N
M
Position
command
f2
f2 = f1 x

N
M

Delta ASDA-A2 Specifications

General

Control Mode	Position, Speed, Torque
Model	ASDA-A2 Series
Operating Voltage	200 ~ 230VAC / 380 ~ 480VAC
Power Supply	200-230VAC ±10%, single-phase
Communication Interface	RS-485, CANopen
Feedback	Incremental encoder, Absolute encoder
Protection	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	0°C
Storage Temperature	-20°C
Humidity	20% to 90% RH (non-condensing)
Position Control Mode Features	Electronic Cam
Weight	Varies depending on the model. Please refer to the specific model's datasheet.
