417-01-18 Exterior Lighting 417-01-18
DIAGNOSIS AND TESTING (CONTINUED)
CONDITIONS
DETAILS/RESULTS/ACTIONS

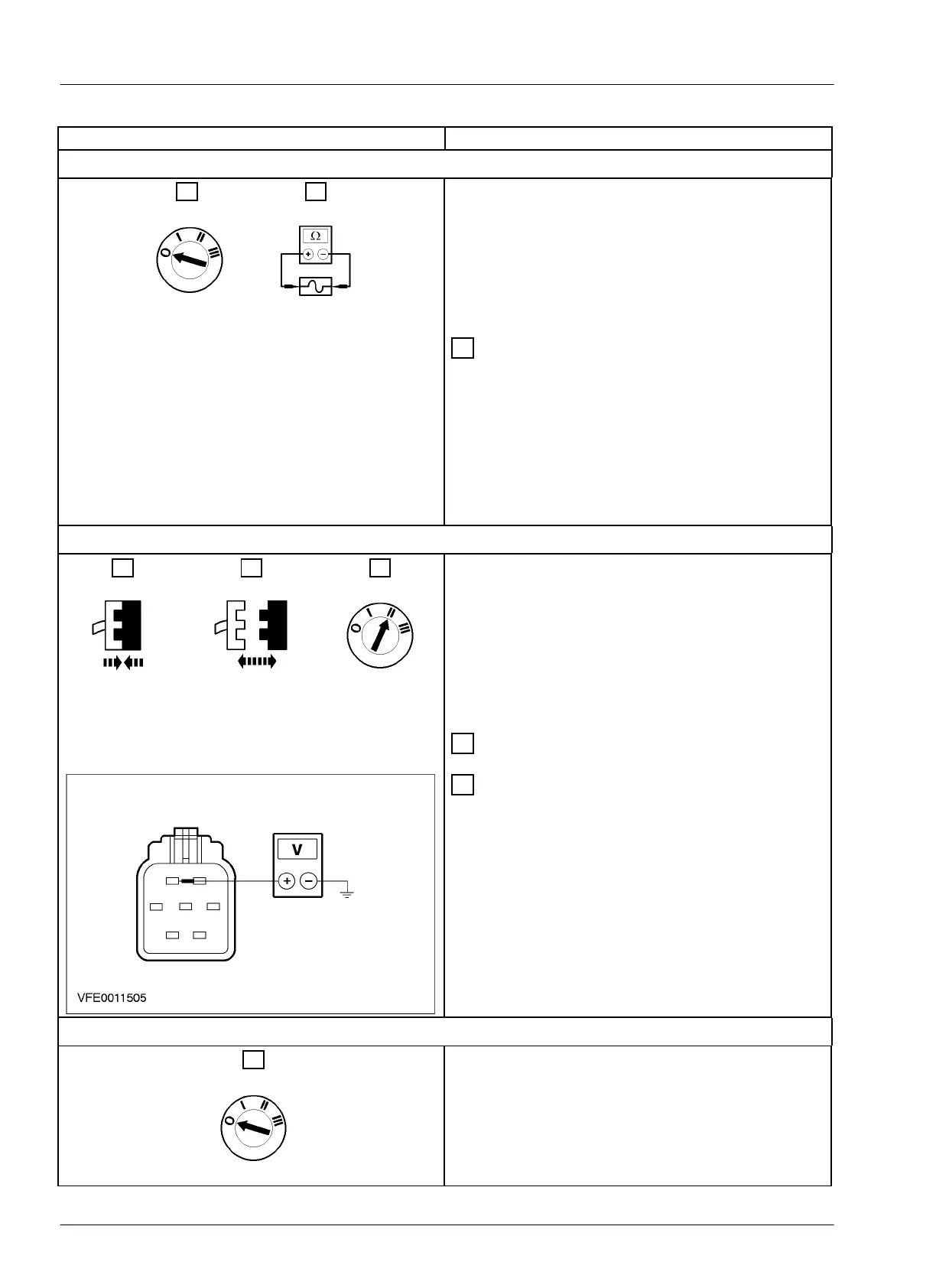

E2: CHECK THE FUSE F21
1.
2.
Fuse F21 (CJB)
3 Check the fuse F21 (10 A).
• Is the fuse OK?
Yes
GO TO E3
No
INSTALL a new fuse F21. If the fuse blows
again, LOCATE and REPAIR the short cir-
cuit by using the wiring diagrams. TEST the
system for normal operation.
E3: CHECK THE POWER SUPPLY OF HEADLAMP, LEFT-HAND SIDE
1.
Fuse F21 (CJB)
2.
Headlamp, left-hand
side C45
3.
4 Turn the multifunction switch to the LOW
BEAM and HIGH BEAM position.
5 Measure the voltage between headlamp, left-
hand side, connector C45, pin 1, circuit 14S-
LE15 (VT/BK), harness side and ground.
• Is battery voltage indicated?
Yes
GO TO E4
No
GO TO E5
E4: CHECK THE GROUND CONNECTION OF HEADLAMP, LEFT-HAND SIDE
1.
E9418 EN 07/2001 2002 Bantam
