303-01D-130 Engine — 1.8L Diesel - Endura DE 303-01D-130
ASSEMBLY (CONTINUED)
E6005 EN 09/2001 2002 Bantam

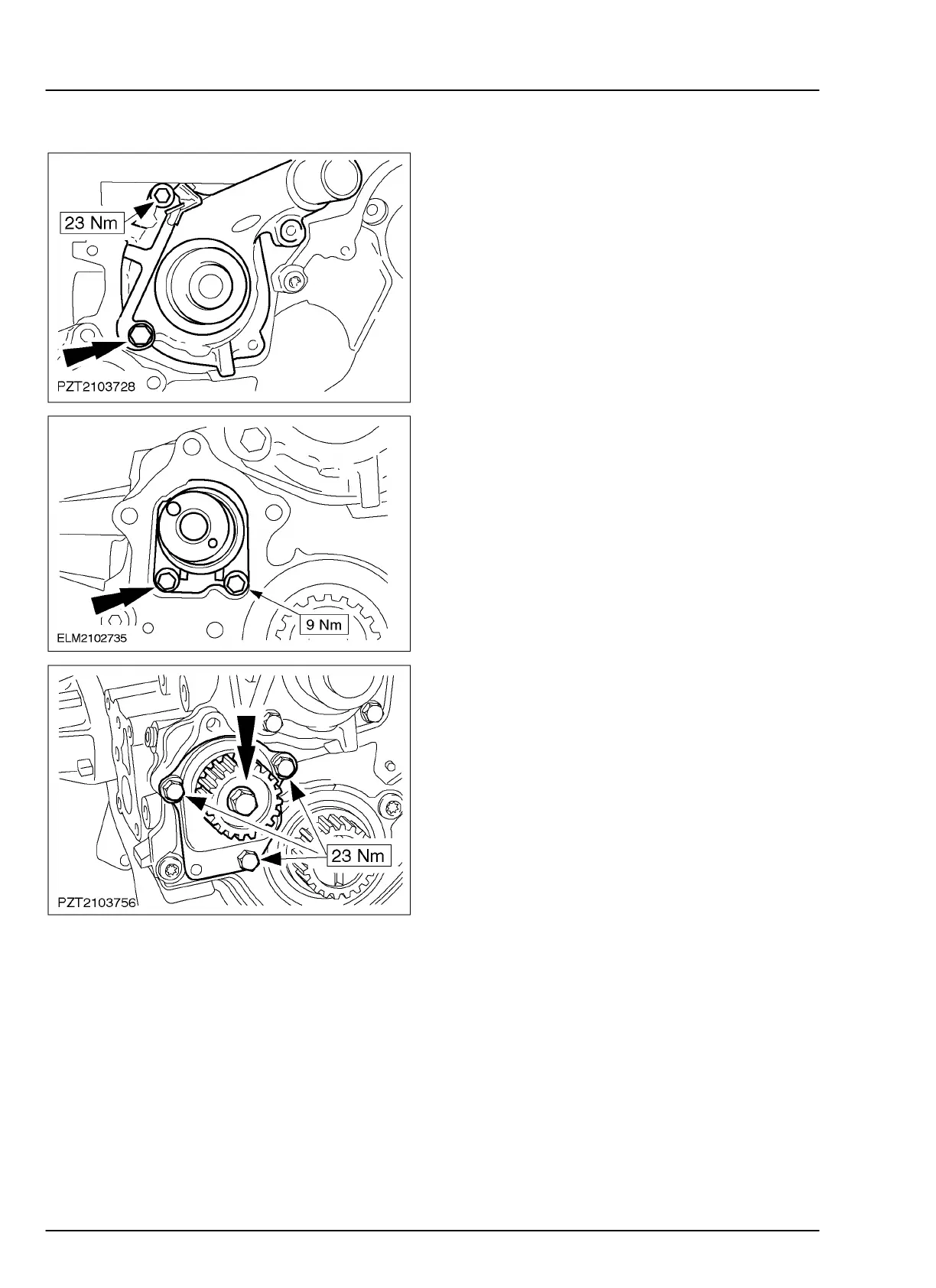

29. Install the coolant pump.
• Place the coolant pump, together with a
new gasket, and the bracket for the spring
of the timing belt tensioning pulley, in the
installation position.
• Tighten the bolts.
30. Install the auxiliary shaft with the thrust
plate.
• Lubricate the auxiliary shaft, the bearing
bush in the cylinder block and the thrust
plate with engine oil.
NOTE: The lubricating grooves on the thrust
plate must face outwards.
• Fit the auxiliary shaft together with the
thrust plate.
• Tighten the thrust plate bolts.
31. NOTE: Do not tighten the bolt of the
auxiliary shaft timing belt pulley.
NOTE: The auxiliary shaft guide pin and the
corresponding hole in the timing belt pulley must
line up.
Install the auxiliary shaft oil seal housing.
• Lubricate the end of the auxiliary shaft
with engine oil.
• Slide the new oil seal housing with the
integrated oil seal and the support ring
onto the end of the auxiliary shaft.
• Tighten the bolts of the oil seal housing.
• After securing the oil seal housing,
detach the support ring and check that the
seal is seated correctly.
32. Install the auxiliary shaft timing belt pulley.
