303-01D-137 Engine — 1.8L Diesel - Endura DE 303-01D-137
ASSEMBLY (CONTINUED)
E6005 EN 09/2001 2002 Bantam
Engines with mechanical timing belt tensioner

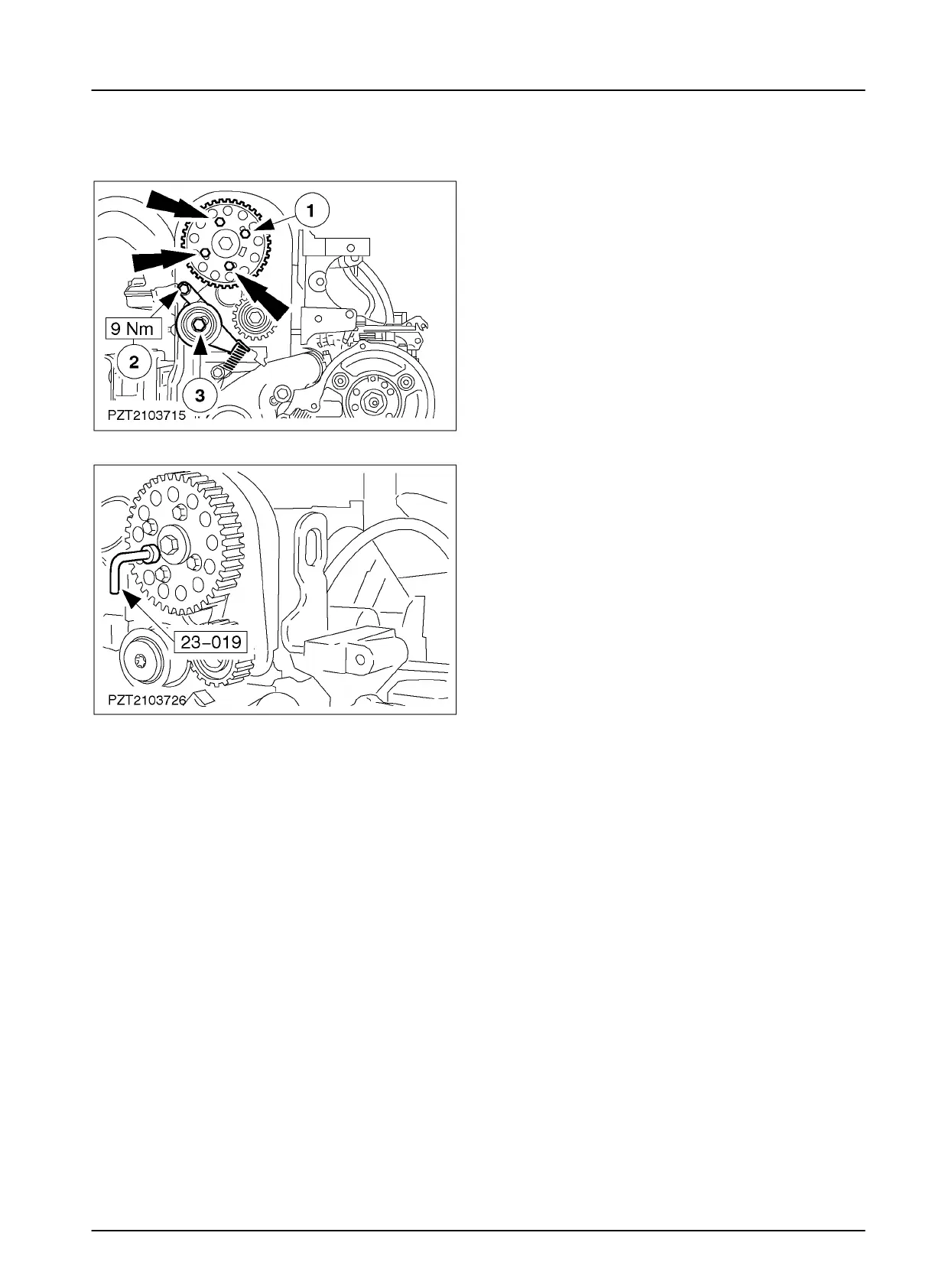

55. Fit the camshaft timing belt pulley and
timing belt tensioner.
NOTE: Do not tighten the bolts of the camshaft
timing belt pulley.
1. Fit the camshaft timing belt pulley.
2. Fit the timing belt tensioner (two bolts).
3. Squeeze the springs of the timing belt
tensioner together and fix in place with the
clamping bolt.
Engines with mechanical timing belt tensioner.
56. Align the camshaft timing belt pulley.
• Align the camshaft timing belt pulley by
inserting the timing pin through the cutout
in the pulley and the hole in the cylinder
head.
