303-01D-145 Engine — 1.8L Diesel - Endura DE 303-01D-145
ASSEMBLY (CONTINUED)
E6005 EN 09/2001 2002 Bantam

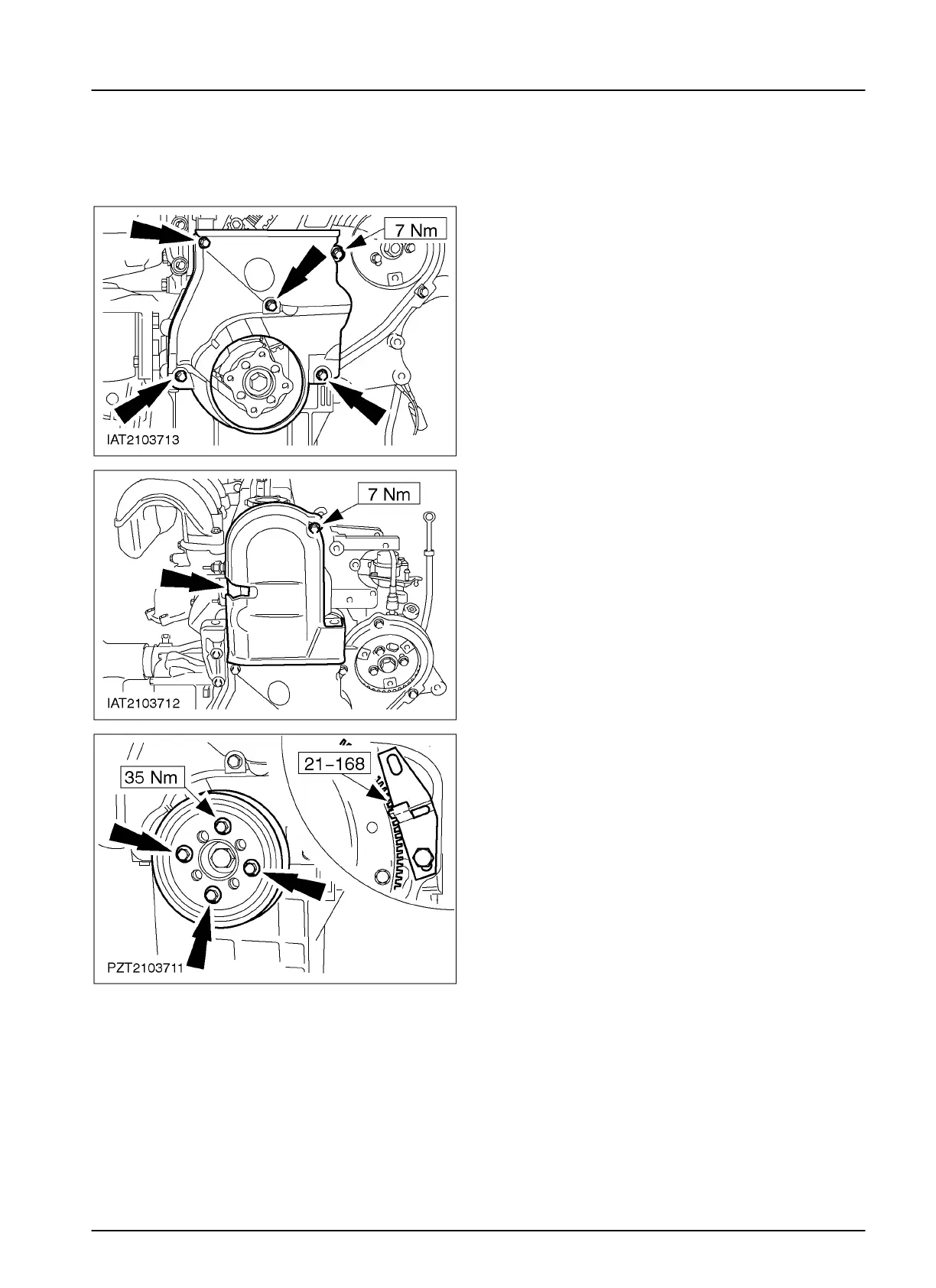

78. Tighten the bolt of the auxiliary shaft timing
belt pulley.
79. Fit the lower timing belt cover.
80. Fit the upper timing belt cover.
81. Fit the crankshaft pulley/vibration damper.
• Then remove Special Tool 21-168.
