303-04D-12 Fuel Charging and Controls — 1.8L Diesel Engine 303-04D-12
REMOVAL AND INSTALLATION (CONTINUED)
E6448 EN 09/2001 2002 Bantam

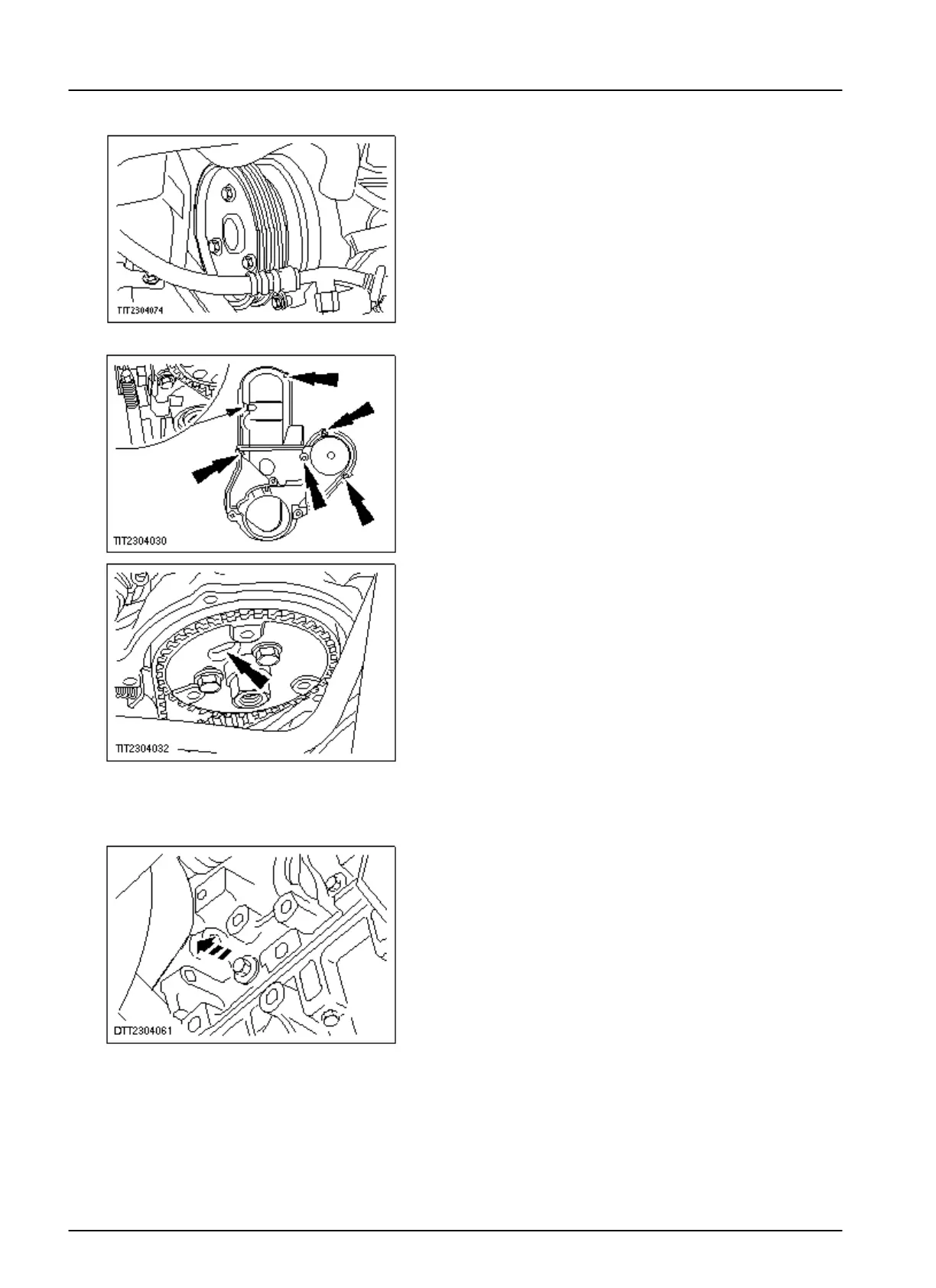

14. Remove the power steering pump pulley.
All vehicles
15. Remove the timing belt cover.
16. Turn the engine clockwise until the slot in
the fuel injection pump pulley reaches the
11 o'clock position.
17. Raise and support the vehicle. For
additional information,
refer to Section 100-02.
18. Remove the blanking plug from the cylinder
block. (Generator bracket shown removed
for clarity).
To Next Page
