303-04D-20 Fuel Charging and Controls — 1.8L Diesel Engine 303-04D-20
REMOVAL AND INSTALLATION (CONTINUED)
E6448 EN 09/2001 2002 Bantam

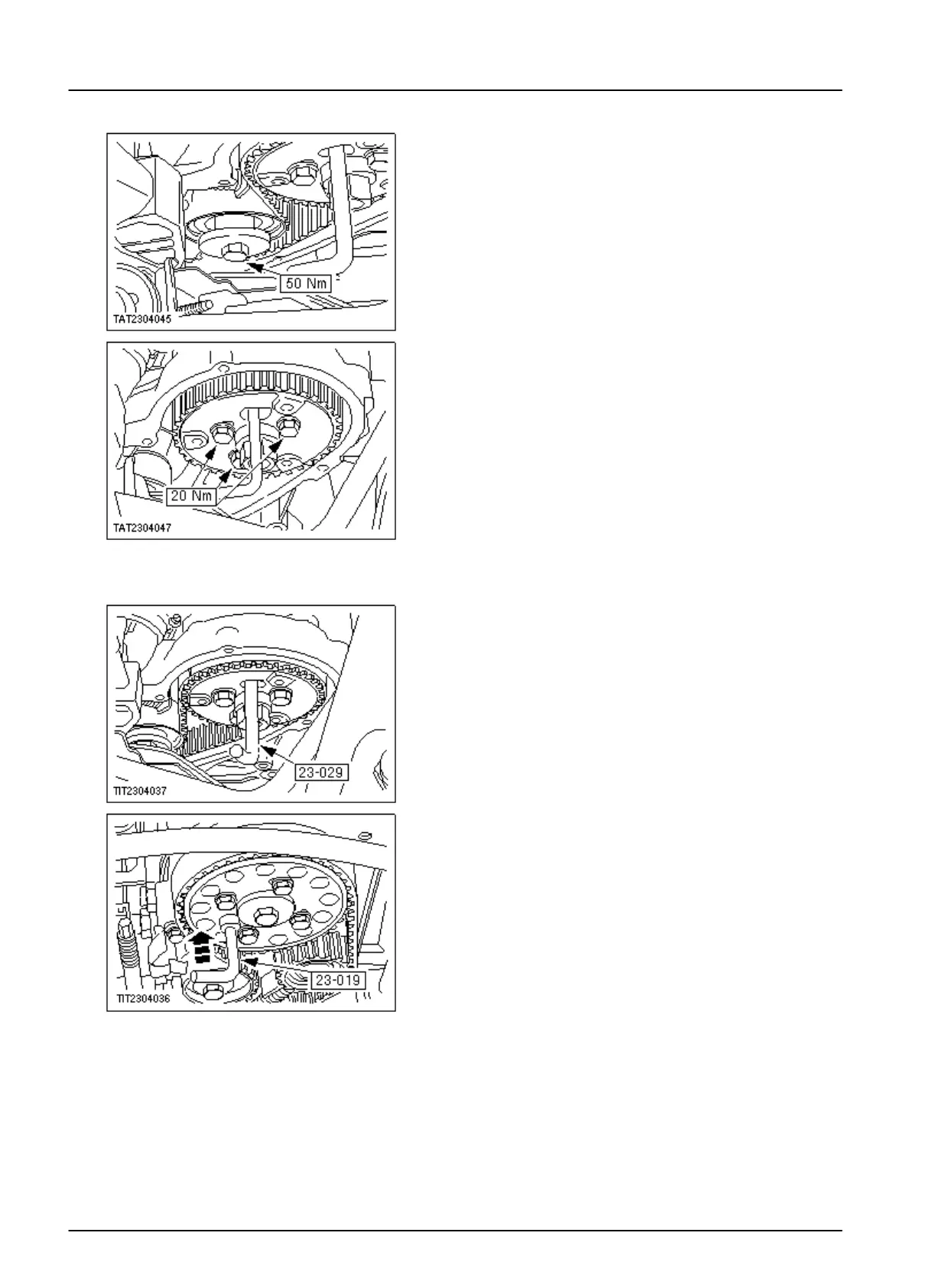

11. Tighten the fuel injection pump drive belt
tensioner bolt.
12. Tighten the fuel injection pump pulley
retaining bolts.
• Make sure that the elongated holes in
the fuel injection pump pulley are
centralized with the retaining bolts.
13. Install a new timing belt. For additional
information,
refer to Section 301-01C.
14. Remove the special tool from the fuel
injection pump.
15. Remove the special tool from the camshaft.
16. Raise and support the vehicle.
For additional information,
refer to Section 100-02.
