2 Alarm Log Function Configuration Procedure
13-12 WindO/I-NV4 User’s Manual
14
Click OK.

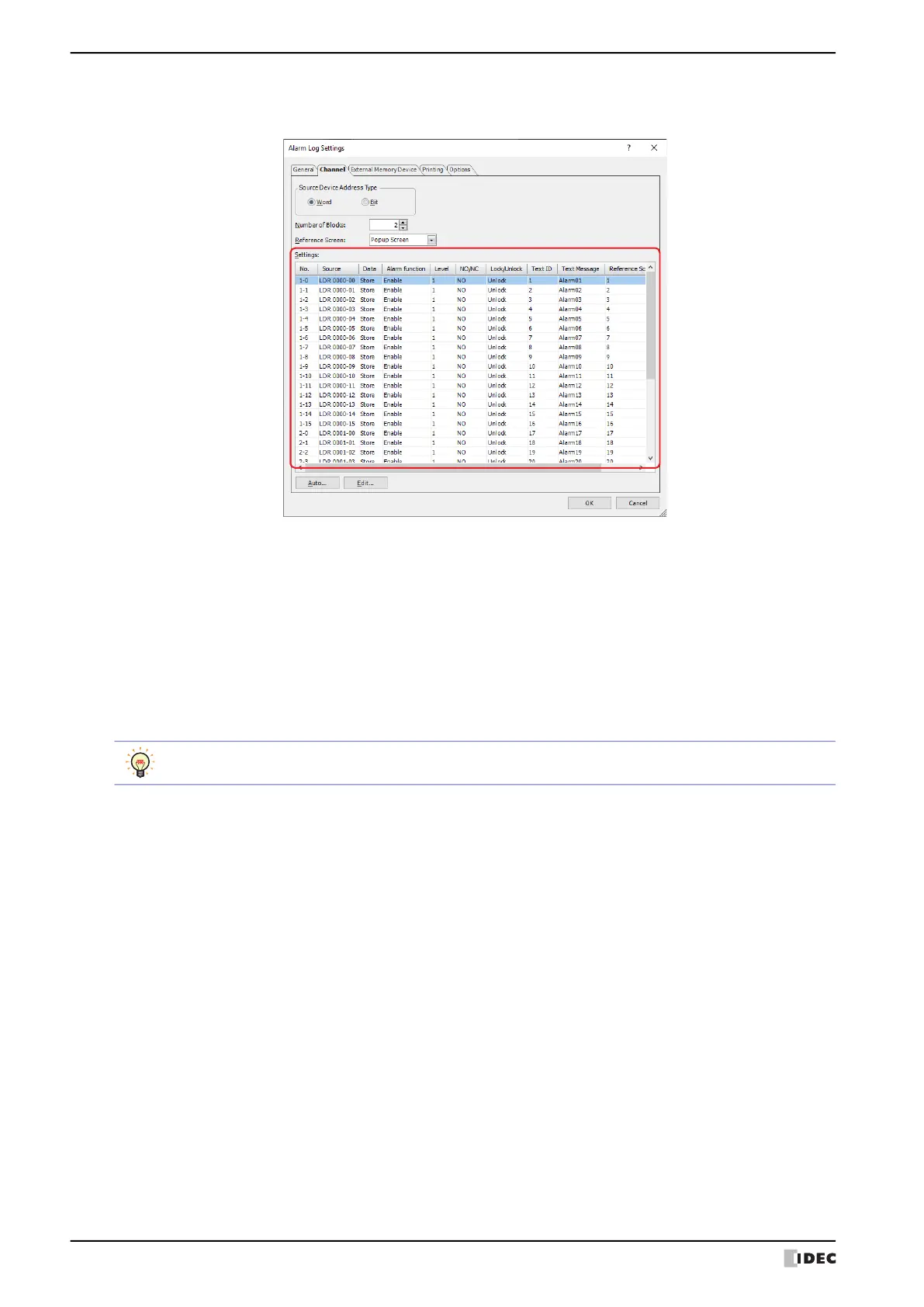

The device addresses to monitor and the messages are batch configured and displayed in Settings.
15
Click OK.
The Alarm Log Settings dialog box closes.
This concludes configuring the device addresses to monitor and the alarm detection condition.
Next, configure the functions to execute using saved data and detected alarms.
“4.1 Displaying Saved Data with the Alarm Log Display” on page 13-31
“4.2 Displaying Registered Messages with the Alarm List Display According to the Active Alarm” on page 13-33
“4.3 Make a Sound of the Buzzer and Flash the Screen when an Alarm has Occurred” on page 13-36
“4.4 Saving the Data as a CSV File” on page 13-38
To use the Alarm Log settings configured on the project on another project, save it as a file, and then import
it to a project. Right-click the Alarm Log Settings on the Project window to export or import the file.
To Next Page
