WindO/I-NV4 User’s Manual 26-13
3 Simulator
26
Simulator Function

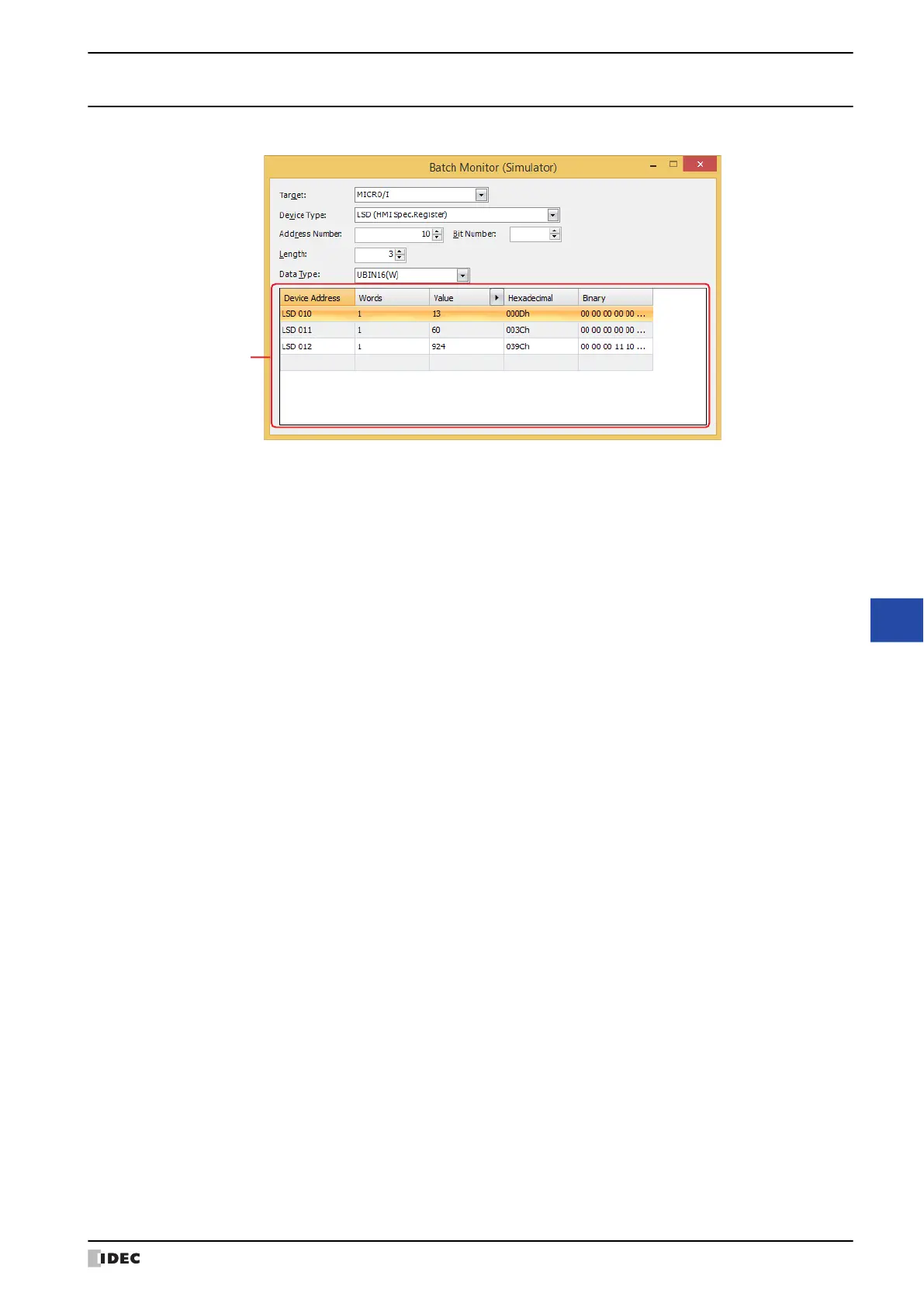

3.4 Batch Monitor
Displays sequential addresses as a batch.
■ Target
Select the device that includes the device address that will be set from MICRO/I or External Device (External
Device ID): (External Device Name).
You can configure the External Device ID and the external device name in the Communications Driver Network
tab on the Project Settings dialog box. For details, refer to Chapter 4 “3.4 Communication Driver Network Tab” on
page 4-52.
■ Device Type
Selects the device type.
The list only shows device types that can be used.
■ Address Number
Specify the address. The range that can be set varies based on the device type selected.
■ Bit Number
Specify the bit (0 to 15) of the word device when a word device is selected in Device.
■ Length
Specifies the number of device addresses displayed in the list (Bit number of the word device: 1 to 16, Bit Device or
Word Device: 1 to 1000).
■ Data Type
Selects the data format of the displayed value. For details, refer to Chapter 2 “1.1 Available Data” on page 2-1.
(Monitor)
To Next Page
