5 Module Configuration Dialog Box
30-30 WindO/I-NV4 User’s Manual
This section describes the Module Configuration dialog box to configure the settings for the expansion module.
5.1 Overview
The MICRO/I is capable of using the expansion modules described in “1.2 Applicable Expansion Modules” on page 30-
2. To use an expansion module, insert the expansion module to be connected to MICRO/I on the Module
Configuration dialog box.
●

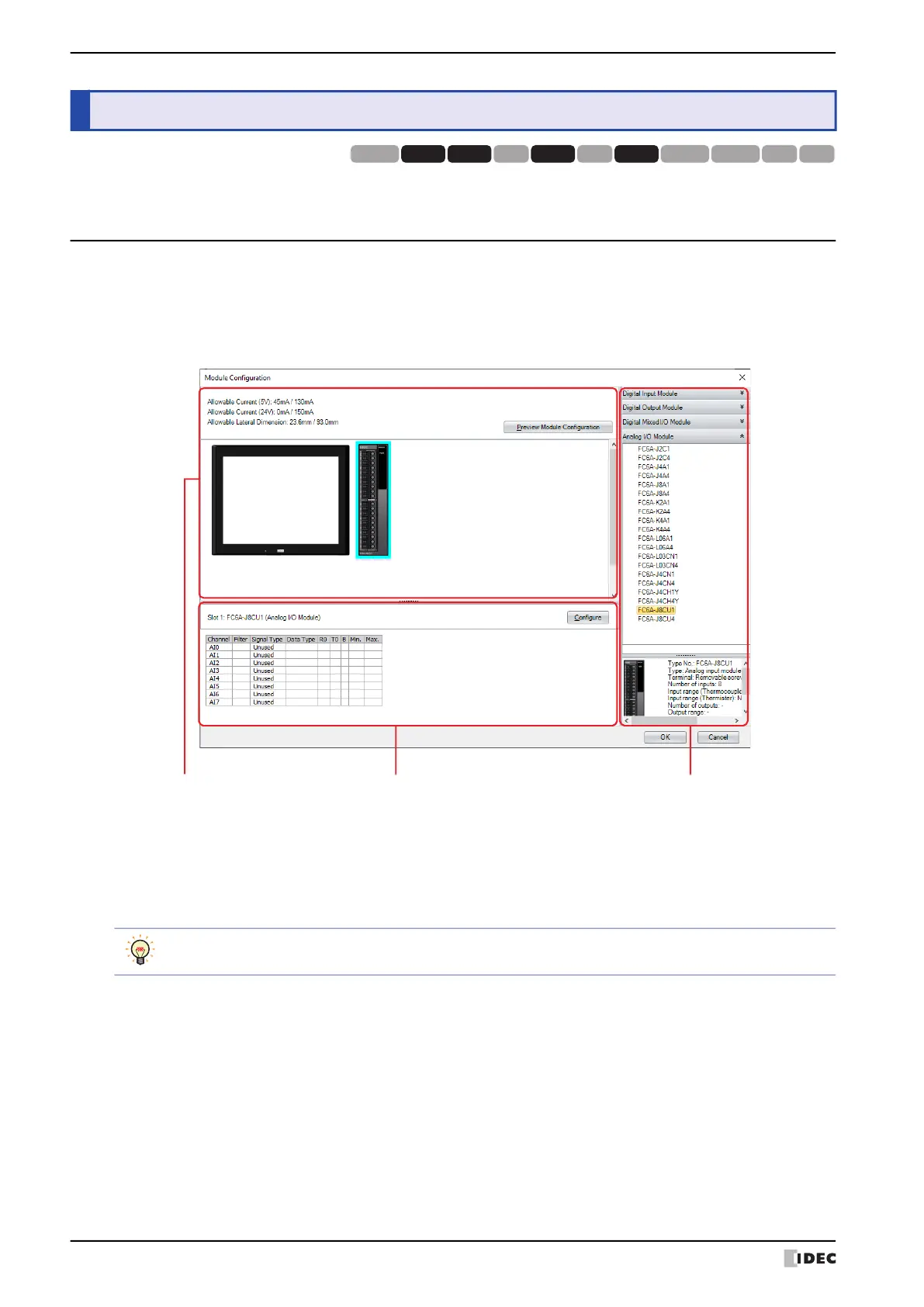

Module Configuration Dialog Box
The module configuration can be created by selecting the expansion modules to use in the expansion modules list and
dragging and dropping them to the module configuration area.
5 Module Configuration Dialog Box
HG3G
HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T
HG4G HG1G HG1P
HG2J-7U
Module Configuration Area: Displays the configuration of connected expansion modules.
Preview Module Configuration: Previews the image of the CPU module and expansion
module set in the module configuration area. Click this
button to display the Preview Module Configuration
dialog box.
Parameter Reference Area Expansion Module List
Module Configuration Area
You can copy the previewed image to the clipboard by clicking the Copy to clipboard button on the
Preview Module Configuration dialog box.
Expansion Module List: Displays a list of expansion modules that can be connected to the MICRO/I.
Parameter Reference Area: Displays the parameters that are configured for the expansion modules.
Configure: Configure each parameter of the expansion module. Click this button to
display the configuration dialog box that corresponds to the expansion
module.
To Next Page
