7 BACnet Communication
3-108 WindO/I-NV4 User’s Manual

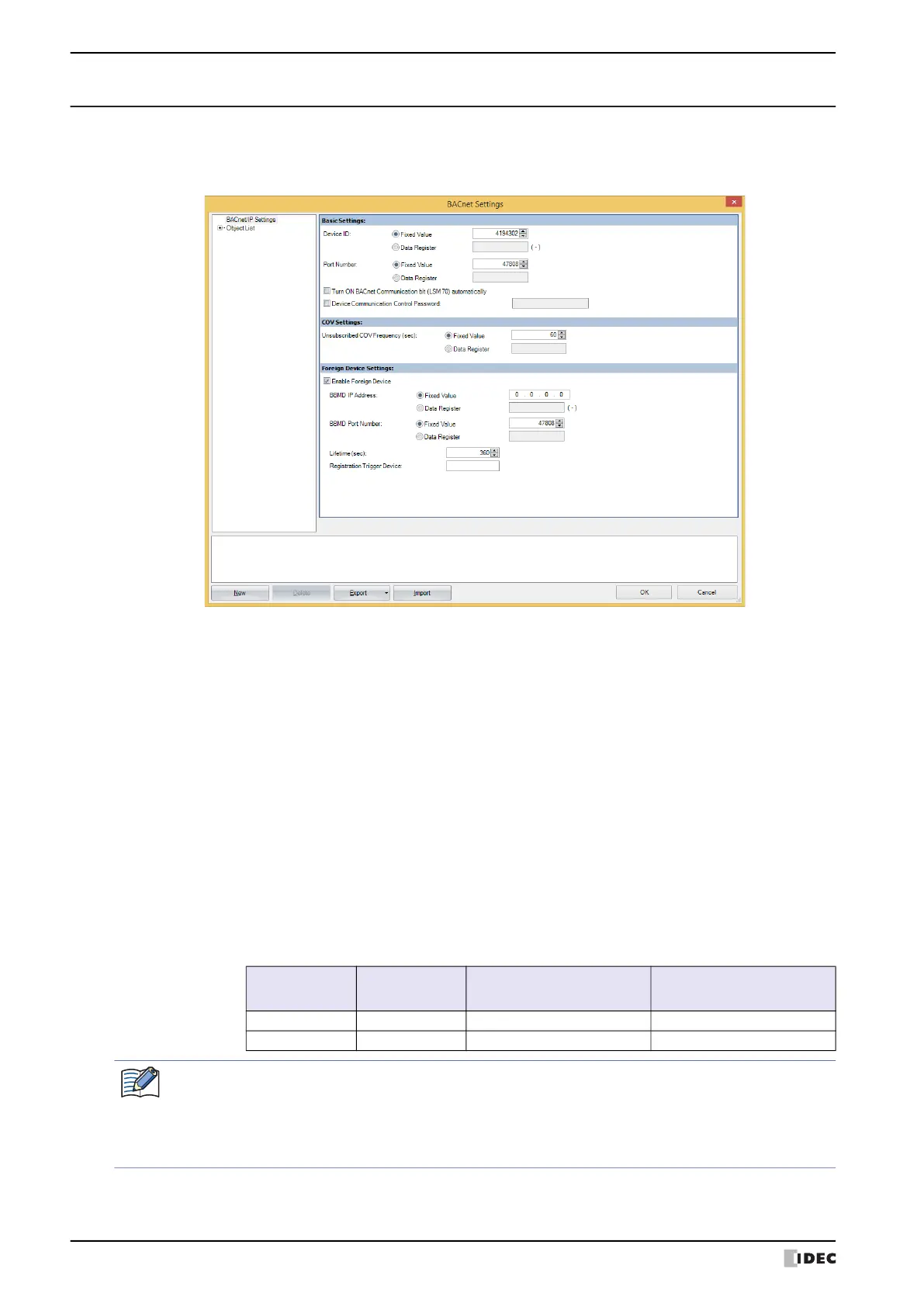

7.7 BACnet Settings Dialog Box
This section describes items on the BACnet Settings dialog box.
●
BACnet/IP Settings
■ Basic Settings
*1 For Present_Value, refer to “7.8 Objects” on page 3-124 and “Present_Value” on page 3-132.
*2 For Status_Flags, refer to “7.8 Objects” on page 3-124 and “Status_Flags” on page 3-145.
Device ID: The assigned ID used to identify BACnet devices on the BACnet/IP network. Configures the
device ID in the range from 1 to 4,194,302.
Fixed Value: Specifies the Device ID as a constant. (Default: 4194301)
Data Register: Specifies the Device ID as a value of word device.
This option uses 2 words of address numbers starting from the specified
data register.
Port Number: Configures the port number for performing BACnet Communication. Configures the port number
in the range from 0 to 65,535.
Fixed Value: Specifies the port number as a constant. (Default: 47808)
Data Register: Specifies the port number as a value of word device.
Turn ON BACnet Communication bit (LSM70) automatically:
Configures whether or not to set 1 to the HMI Special Internal Relay LSM70 (BACnet
Communication Bit) in the END processing of the first scan when starting operation.
LSM70 Status BACnet/IP
Present_Value
*1
and
Device Address Value
Overridden Flag in
Status_Flags
*2
1 Enabled Bound FALSE
0 Disabled Not bound —
When the following operations are performed, the value of the HMI Special Internal Relay LSM70 (BACnet
Communication Bit) changes to 0.
• Downloads the project data.
• Turns off the MICRO/I.
• Switches to System Mode.
To Next Page
