1 Web Server Function
28-12 WindO/I-NV4 User’s Manual
1.6 Custom Web Page
The Custom Web Page is the web page which you create by the Web Page Editor. Downloads the created web page
file to the external memory device inserted in the MICRO/I, and accesses the MICRO/I from a web browser terminal
to browse it.
●
Web Page Editor
Use the Web Page Editor to create a Custom Web Page.
Works on the Web Page Editor
The Web Page Editor works on an web browser. The recommended web browser is as follows:
• Google Chrome 47 or later
• Mozilla Firefox 42 or later
• Microsoft Internet Explorer 11
●
Creating Custom Web Page
This example describes the case of pressing the Switch 1 turns on the Lamp 1. In this case, the HMI Internal Relay
LM0 have been used in the current project.
*1 USB flash drive inserted in USB1 for HG2J-7U, SD memory card for HG5G/4G/3G/2G-V, HG4G/3G and HG2G-5F,
USB flash drive for HG2G-5T and HG1G/1P
Custom web pages are downloaded to external memory
*1
. The external memory
*1
must be inserted before
downloading.
To browse the Custom Web Page on the web terminal, select the Use Custom Web Page check box under
the Web Server tab of th
e Project Settings dia
log box. If the display speed of custom web pages is slow,
change the value of Execute Interval on the Web Server tab in the Project Settings dialog box.
• The recommended web browser must be set for default web browser before using the Web Page Editor.
• We confirm that up to 100 pages of the Custom Web Page can be created by using the Web Page Editor.

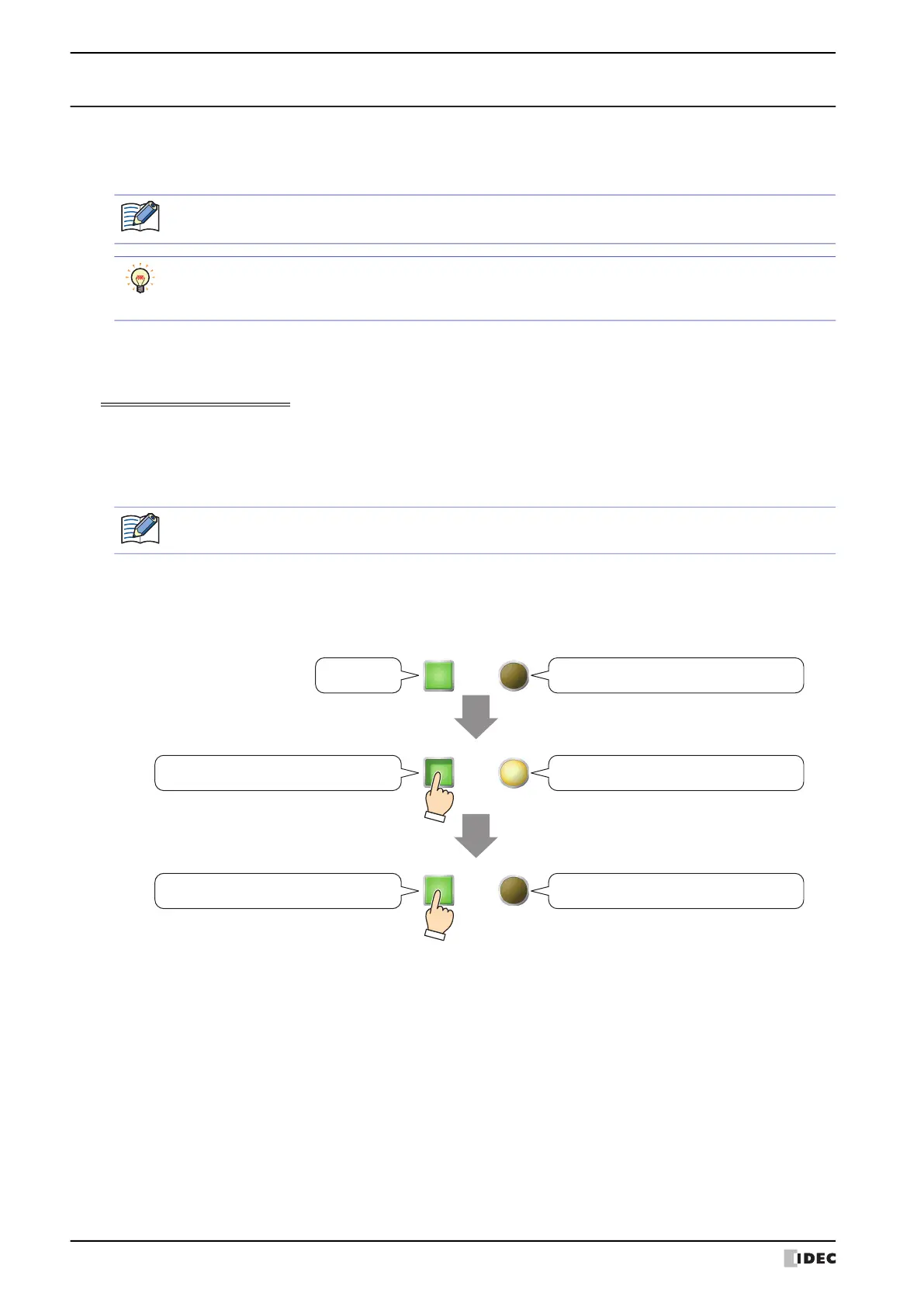

Press
Press
Switch 1 Lamp1
When LM0 is 1, Lamp displays ON graphic.
Pressing the switch sets LM0 to 1.
Initial image (Displays OFF graphic)Initial image
When LM0 is 0, Lamp displays OFF graphic.
Pressing the switch sets LM0 to 0.
To Next Page
