4 Video Display
10-84 WindO/I-NV4 User’s Manual

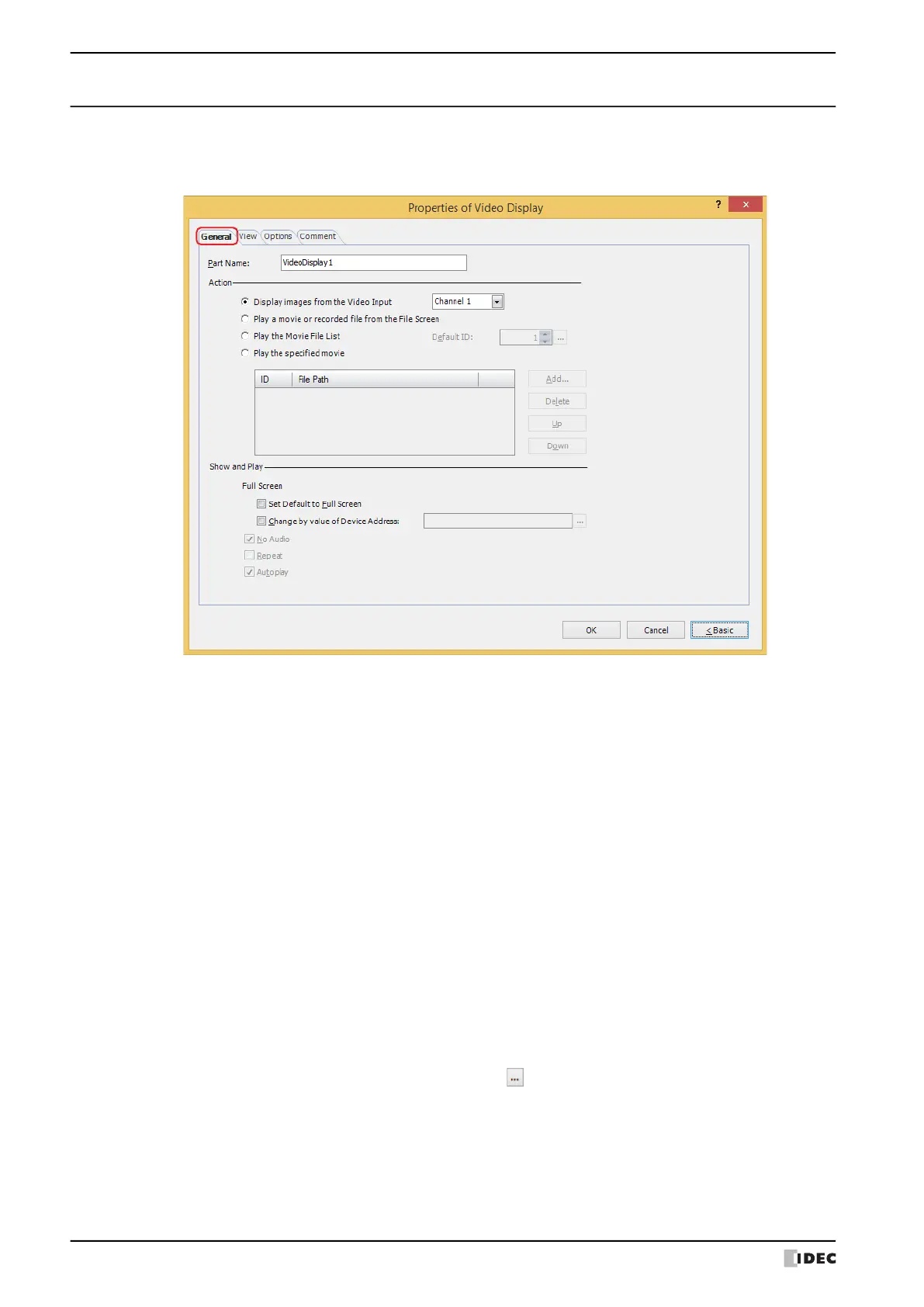

4.3 Properties of Video Display Dialog Box
This section describes items and buttons on the properties dialog box.
●
General Tab
■ Part Name
Enter a name for the part. Maximum number is 20 characters.
■ Action
Select the content to execute on the Video Display from the following.
*1 Recording sound function is for HG4G/3G only
*2 HG5G/4G/3G-V only
Display images from the Video Input:
Displays images from the video interface and outputs sound
*1
from the audio
interface.
(Channel)
*2
:
Selects Channel 1 or Channel 2 to display one of the images
from the video interface.
Play a movie or recorded file from the File Screen:
Selects and plays files using the File Screen. For details, refer to “4.4 File
Screen” on page 10-92.
Play the Movie File List: Plays movie files in order of ID number on the movie file list.
It is a list of movie files that have been registered in the Multimedia Function
settings. You cannot change the order when you play files. For details, refer
to Chapter 22 “Multimedia Function” on page 22-1.
Default ID: Pressing the play button specifies the ID number (1 to 64) of
the movie file to be played.
Clicking displays the Multimedia Settings dialog box.
Select an ID number from the movie file list.
