WindO/I-NV4 User’s Manual 16-3
2 Data Storage Area Configuration Procedure
16
Data Storage Area
This section describes the configuration procedure for the data storage area.

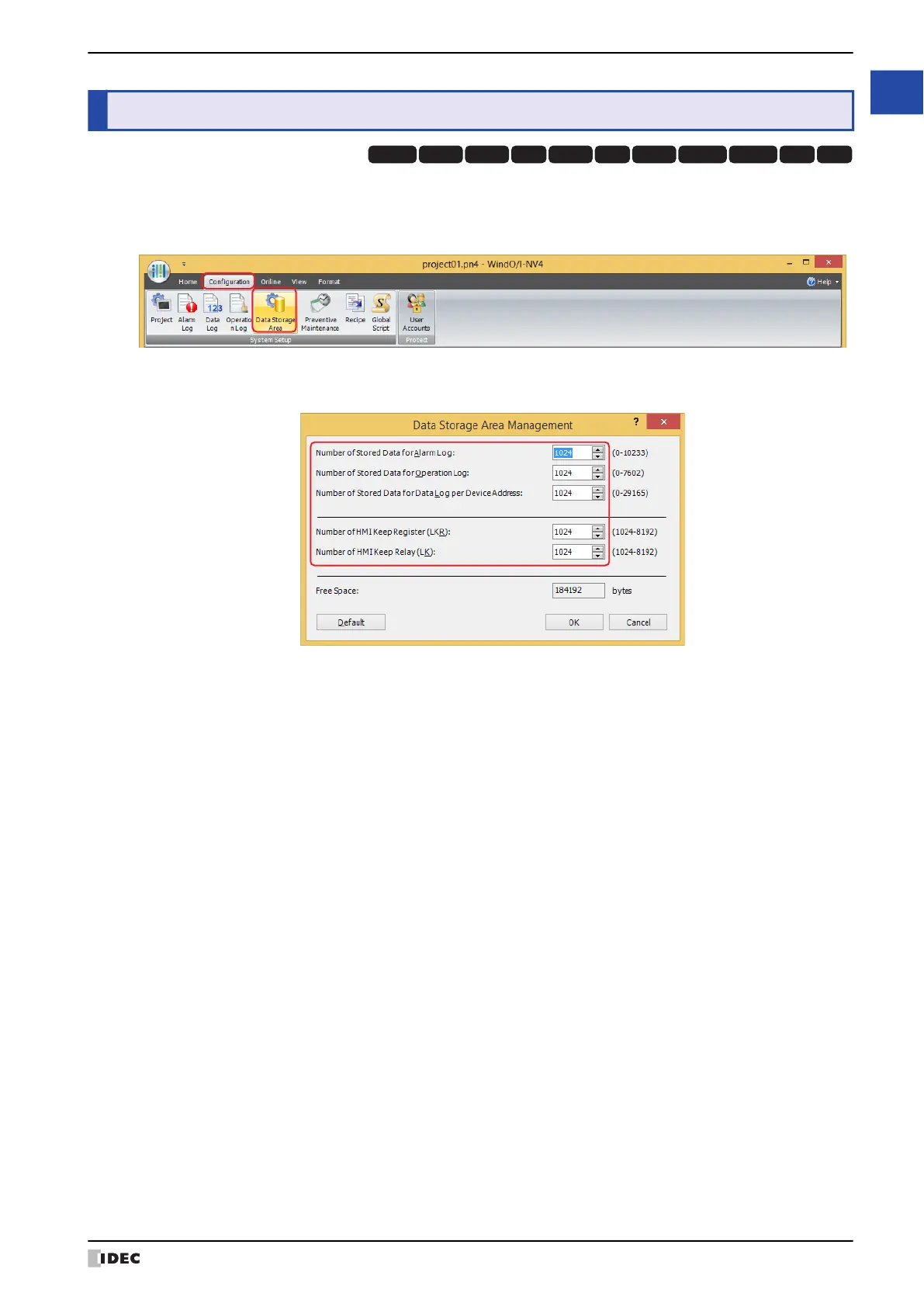

1 On the Configuration tab, in the System Setup group, click Data Storage Area.
The Data Storage Area Management dialog box is displayed.
2 Specify the amount of Alarm Log data to save in the data storage area in Number of Stored Data for Alarm Log
(HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F: 0 to 11660, HG2J-7U, HG2G-5T, HG1G/1P: 0 to 5520).
3 Specify the amount of Operation Log data to save in the data storage area in Number of Stored Data for
Operation Log (HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F: 0 to 8330, HG2J-7U, HG2G-5T, HG1G/1P: 0 to 3945).
4 Specify the amount of Data Log data per device address to save in the data storage area in Number of Stored Data
for Data Log per Device Address (HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F: 0 to 29165, HG2J-7U, HG2G-5T,
HG1G/1P: 0 to 13808).
5 Specify the number of HMI Keep Register (LKR) addresses in Number of HMI Keep Register (LKR) (1024 to
8192).
6 Specify the number of HMI Keep Relay (LK) addresses in Number of HMI Keep Relay (LK) (1024 to 8192).
7 Click OK.
The Data Storage Area Management dialog box closes.
This concludes configuring the data storage area.
2 Data Storage Area Configuration Procedure
HG3G
HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T
HG4G HG1G HG1P
HG2J-7U
To Next Page
