2 Downloading

24-14 WindO/I-NV4 User’s Manual

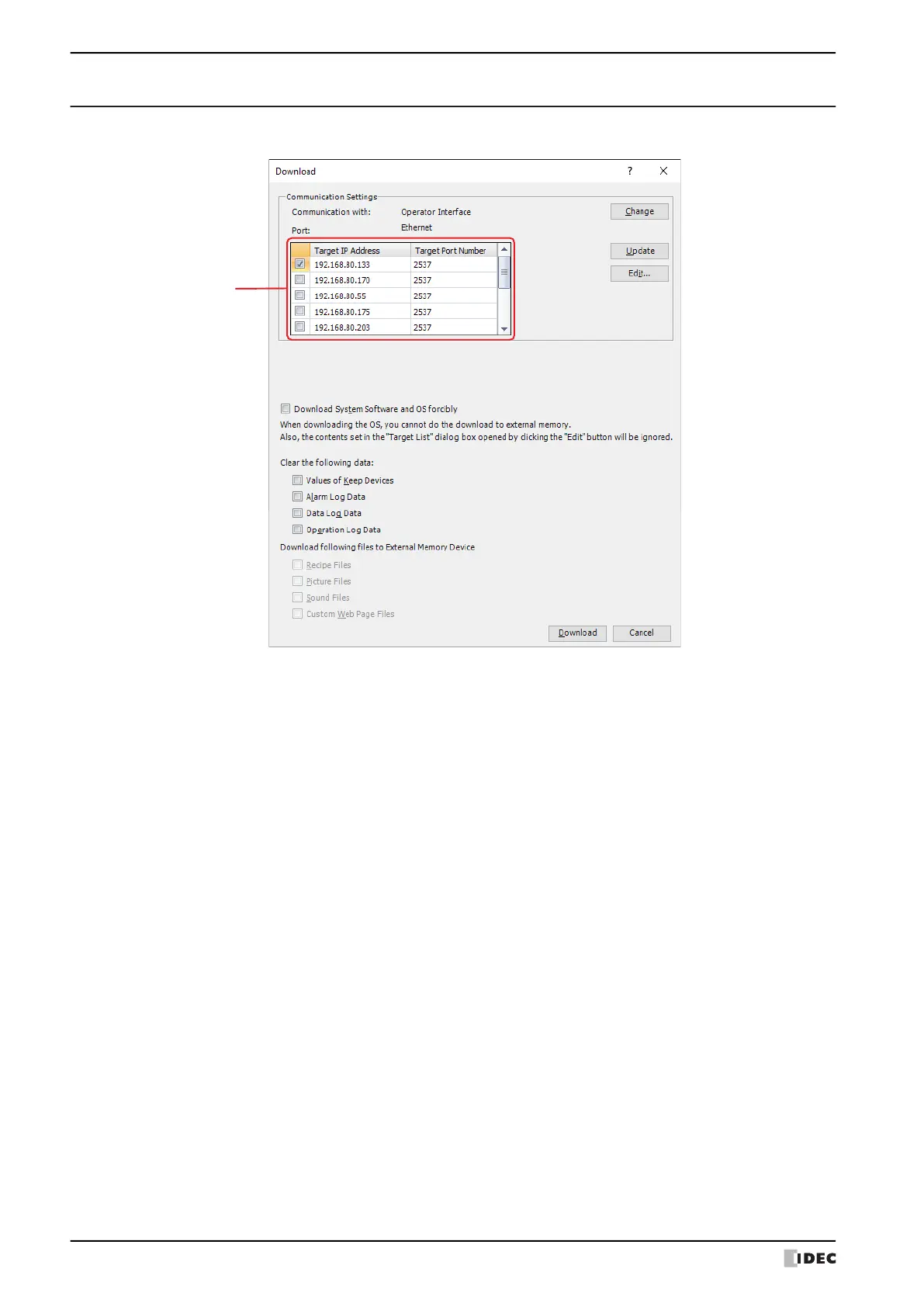

2.2 Download Dialog Box

This section describes items and buttons of the Download dialog box.

■ Communication Settings

*1 HG2J-7U only

(Target list)

Communicate with: Computer's target device is displayed.

Port: Communication port that is used by computer is displayed.

Change: Changes communication settings. Click this button to display the Communication Settings dialog

box. For details, refer to “1.3 Change Communication Settings” on page 24-5.

(Target list)

Select the check box of the target to download the project data to.

Can only be set when Communicate with is set to Operator Interface.

Target IP Address: Displays the current IP address for the MICRO/I to download the project

data to.

Target Port Number: Displays the current port number for the MICRO/I to download the project

data to.

Update: Updates the (Target list). Click this button to add Target IP Address and

Target Port Number only for the MICRO/I that responded.

Edit: Change the settings of the (Target list). Click this button to open the

Target List dialog box.

Specify the Ethernet settings (IP address, subnet mask, default gateway,

and port number) for the target MICRO/I. For details, refer to “ To

download project data” on page 24-7.
