WindO/I-NV4 User’s Manual 7-11
1 Shapes
7
Drawings
1.5 Circle/Ellipse

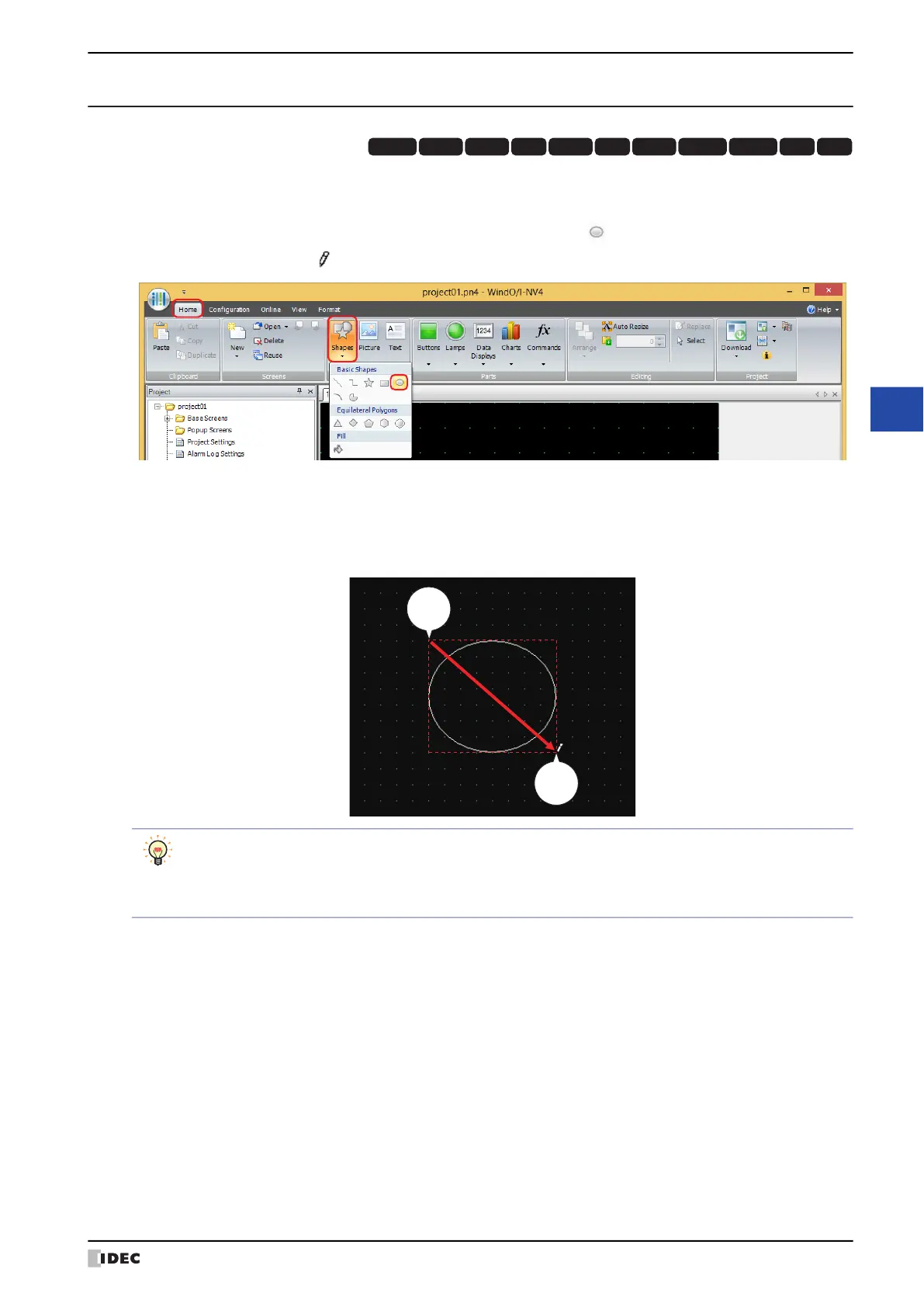

● Circle/Ellipse Drawing Procedure
This section describes the procedure for drawing circles and ellipses.
1 On the Home tab, in the Drawings group, click Shapes, and then click (Circle/Ellipse) under Basic Shapes.
The mouse cursor changes to (pencil).
2 Click and hold the mouse button at the location (start point) to start drawing the circle or ellipse on the edit screen.
3 Drag the mouse to the stop point location so that location becomes the opposite angle of the rectangle.
A circle or ellipse is drawn that inscribes the rectangle made from the opposite angles of the start point and the stop
point.
HG3G
HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T
HG4G HG1G HG1P
HG2J-7U
Stop
point
Start
point
Drag
To change the style of the drawn circle or ellipse, perform one of the following operations.
• Double click the circle or ellipse to open the Properties dialog box
• Select the circle or ellipse and select the style with Shape Style on the Format tab
• Select the circle or ellipse and open the right click menu
