4 Using Data and Detected Alarms

13-36 WindO/I-NV4 User’s Manual

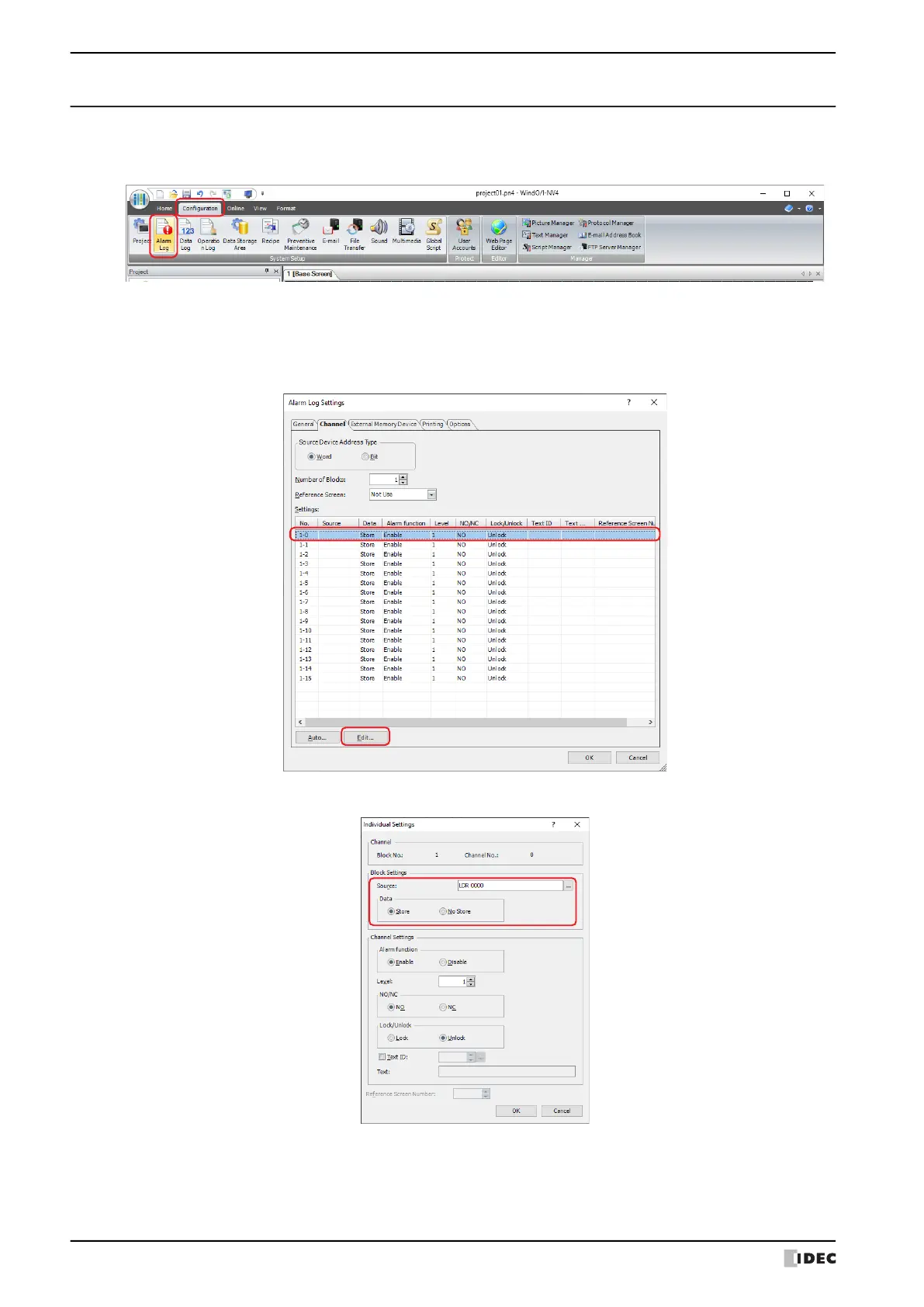

4.3 Make a Sound of the Buzzer and Flash the Screen when an Alarm has Occurred

1 On the Configuration tab, in the System Setup group, click Alarm Log.

The Alarm Log Settings dialog box is displayed.

2 Select the type of device address to monitor under Source Device Address Type on the Channel tab and specify

Number of Blocks.

3 Select the channel number to register a message to and click Edit.

The Individual Settings dialog box is displayed.

4 Specify the device address to monitor in Source and select Store under Data.

5 Select Enable under Alarm function, configure Level, NO/NC and Lock/Unlock, and click OK.

You are returned to the Alarm Log Settings dialog box.
