1 Creating and Manipulating WindO/I-NV4 Project Data
4
Project Settings
1.6 Changing Project Settings
● Changing Product Series
This section describes how to change the product series set in the project data being edited.

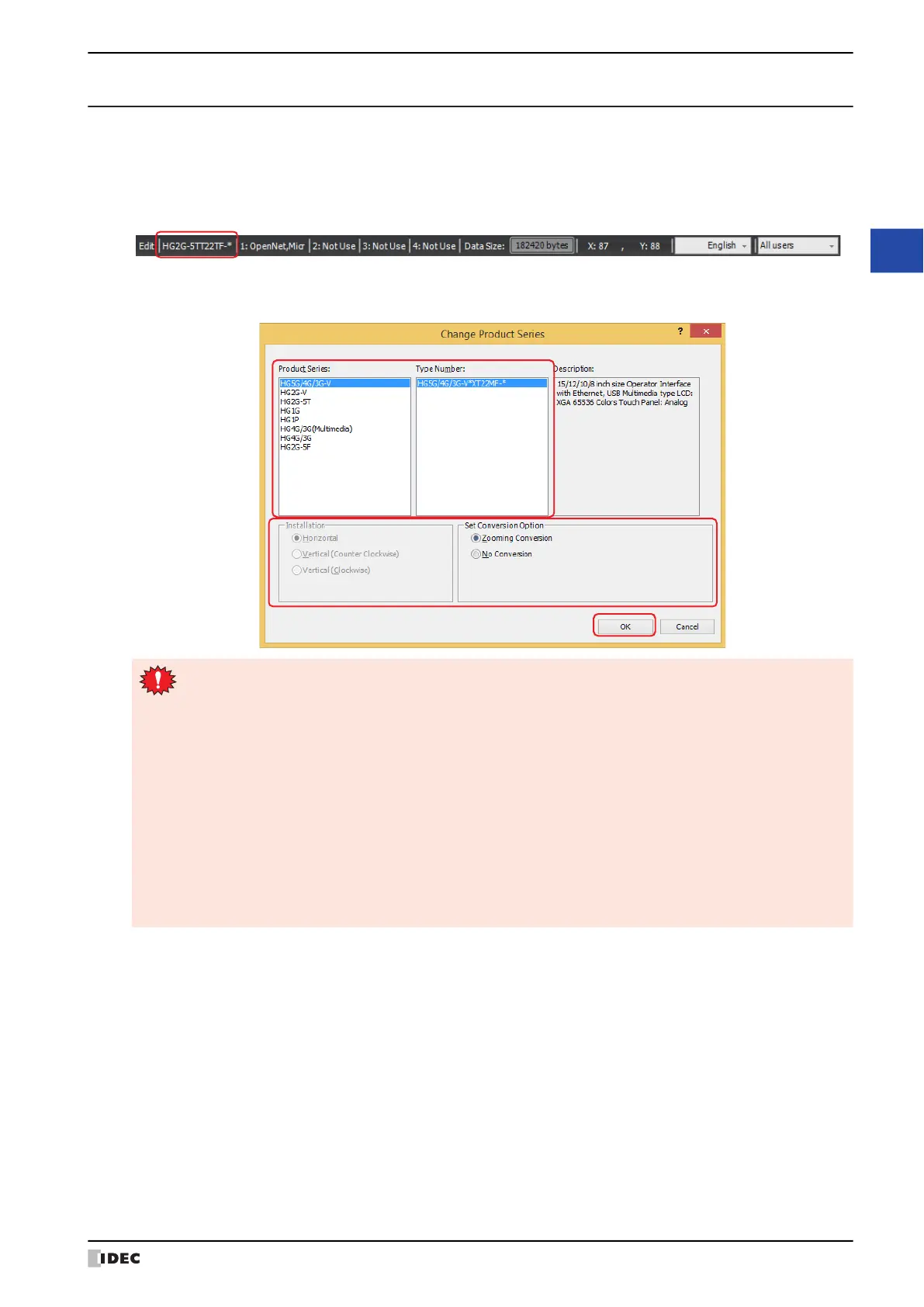

1 Click Change Product Series on the status bar.
The Change Product Series dialog box is displayed.
2 Select Product Series, Model, Installation, and Set Conversion Option, and then click OK.
The Save As dialog box is displayed.
• HG2J-7U project data cannot be converted to HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F/-5T and HG1G/
1P's. Also HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F/-5T, HG1G/1P project data cannot be converted to
HG2J-7U's.
• HG5G/4G/3G/2G-V project data cannot be converted to HG4G/3G and HG2G-5F's.
• Color settings (color data) are not converted.
• If the Popup Screen size is larger than the Base Screen size after the Product Series is changed, the
Popup Screen size is changed to the same size as the Base Screen.
• When Zooming Conversion is selected as Set Conversion Option, note the following points:
- The coordinates and size of the object are adjusted to fit within the display area of the screen,
however, if you convert to a model with a different screen aspect ratio, you may not be able to
maintain the coordinate or size ratio.
- Text and messages are adjusted to fit within the display area of the object, however, you may not be
able to maintain the ratio because the font size setting is not in pixels.
