WindO/I-NV4 User’s Manual 10-3
1 Numerical Input
10
Data Displays

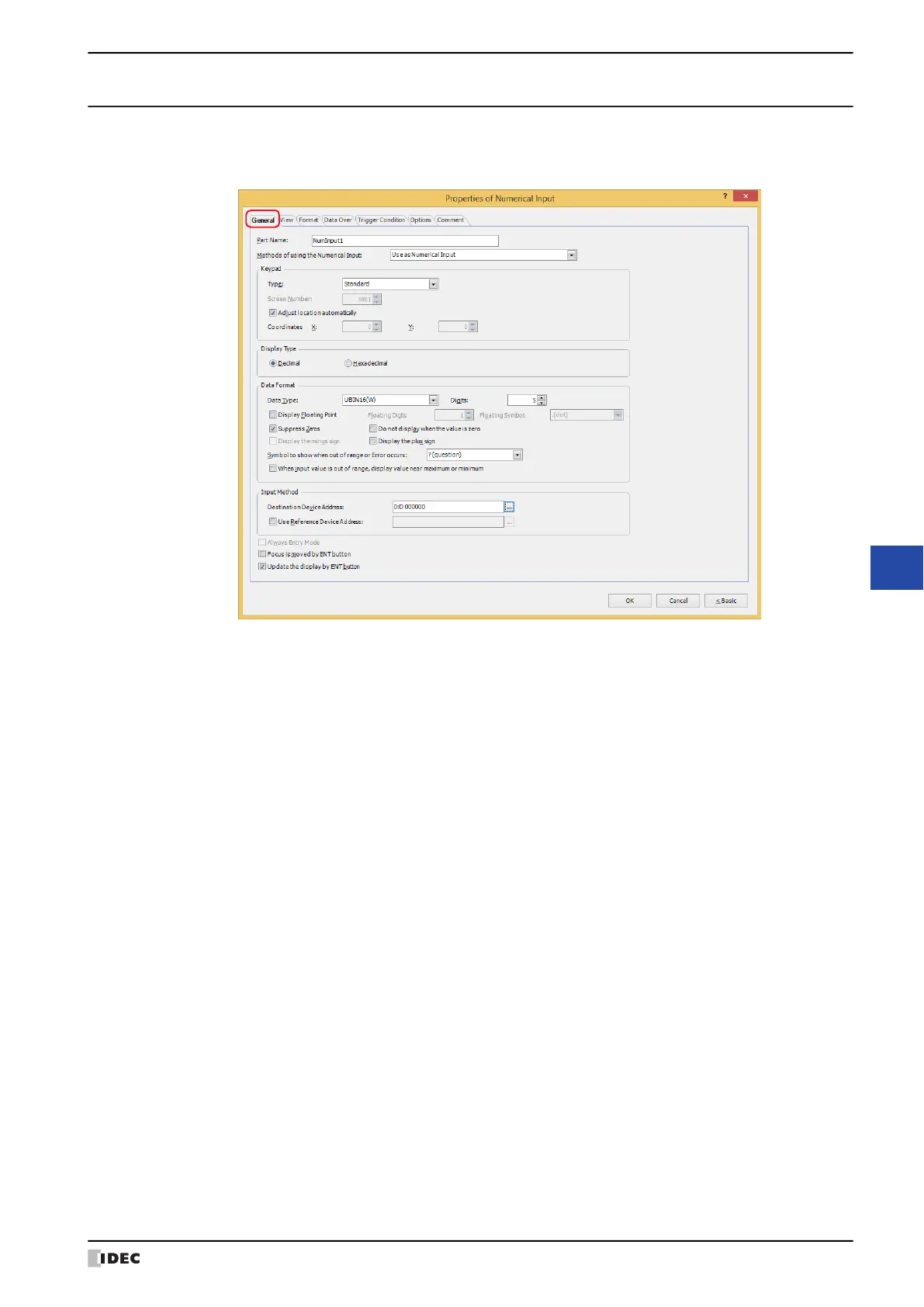

1.3 Properties of Numerical Input Dialog Box
This section describes items and buttons on the properties dialog box.
●
General Tab
■ Part Name
Enter a name for the part. The maximum number is 20 characters.
■ Methods of using the Numerical Input
Selects how to use the Numerical Input:
Use as Numerical Input: Uses the Numerical Input to enter or display values.
Use as Display for Keypad: Uses the Numerical Input as a part to display the value entered
with a Keypad.
Display the Minimum value specified with Data Over: Uses the Numerical Input as a part to display the minimum
value of a Numerical Input switched to input mode.
Display the Maximum value specified with Data Over:Uses the Numerical Input as a part to display the maximum
value of a Numerical Input switched to input mode.
To Next Page
