3 Project Settings Dialog Box
4-66 WindO/I-NV4 User’s Manual

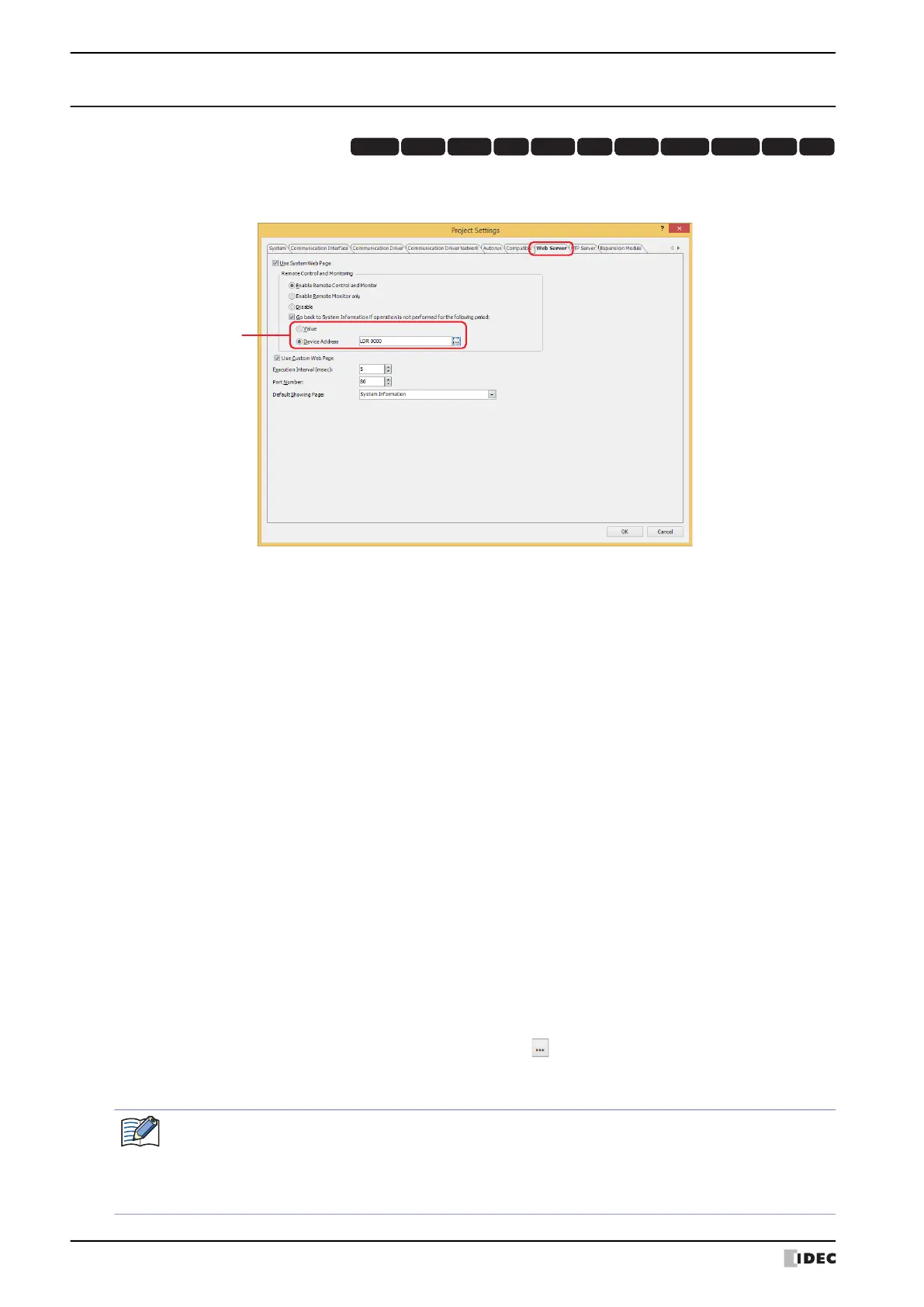

3.12 Web Server Tab
The Web Server tab configures the MICRO/I's Web Server function. For details, refer to Chapter 28 “1 Web Server
Function” on page 28-1.
■ Use System Web Page
Select this check box to access the Remote Control page, Remote Monitor page or System Detailed Information page
of MICRO/I from a web browser terminal.
HG3G
HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T
HG4G HG1G HG1P
HG2J-7U
(Data Type)
Remote Control and Monitoring
Select the functions allowed when accessing the MICRO/I from a web
browser terminal from the following.
This option can only be set when Use System Web Page is selected.
Enable Remote Control and Monitor: Displays a screenshot of the screen displayed on the MICRO/I. You can also
control the MICRO/I being monitored by clicking on the displayed screenshot.
Enable Remote Monitor only: Displays a screenshot of the screen displayed on the MICRO/I.
Disable: Displays only the detailed system information page.
Go back to System Information if operation is not performed for the following period:
Select this check box to automatically return to the homepage when no
action is performed in the Remote Control page or Remote Monitor page for
a specified time. Specify the time until the page returns to the System
Information page following the last action performed in the Remote Control
page or the Remote Monitor page.
This can only be set when Enable Remote Control and Monitor or
Enable Remote Monitor only is selected.
(Data Type): Select the data type for which the System Information
page return time is specified. Units are minutes.
Value: Use a constant value (1 to 60).
Device Address: Use a value of device address.
Click to display the Tag Editor. For the device
address configuration procedure, refer to Chapter 2
“5.1 Device Address Settings” on page 2-70.
:
If Device Address is selected for (Data Type), note the following points:
• If the value of device address is set to 61 or higher, it will be treated as 60 minutes.
• Once a network connection is established between the web browser and the MICRO/I, the timeout period
cannot be changed. The timeout period needs to be set in Device Address before a web browser access
to the MICRO/I.
To Next Page
