WindO/I-NV4 User’s Manual 21-1
21
Sound Function
This chapter describes the setup for the sound function and related MICRO/I operations.

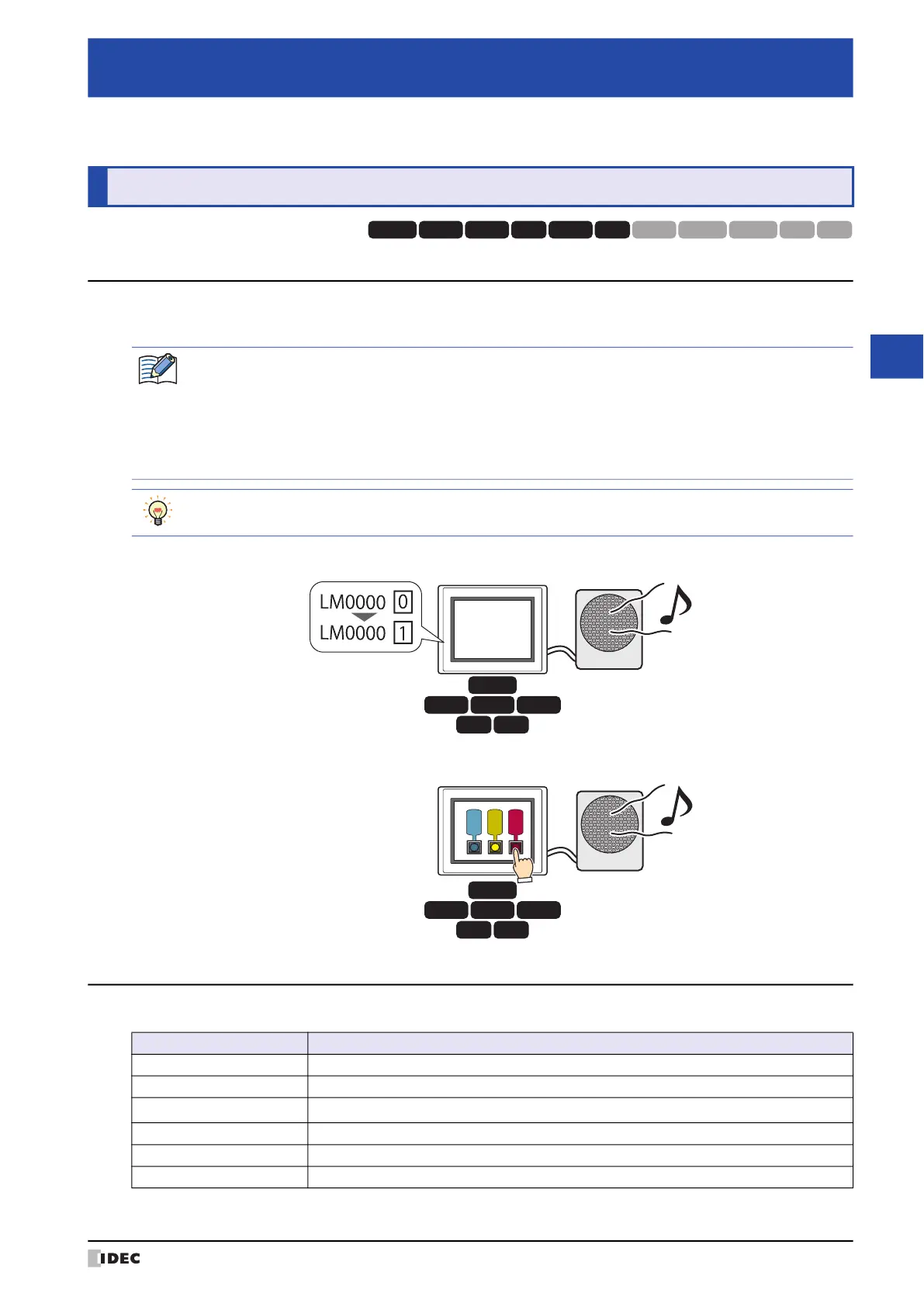

1.1 Overview - How the Sound Function is Used
The following functions can be used by connecting the HG2J-7U to a USB speaker or the MICRO/I equipped with an
audio interface (AUDIO OUT) to a speaker that supports AUDIO OUT.
• Play a sound file when an arbitrary Device Address changes to 1
• Play a sound file when the screen is pressed instead of a beep
1.2 Supported Sound Files
Sound files that meet the following specifications can be played with MICRO/I:
*1 HG2J-7U only
Chapter 21 Sound Function
1 Function and Settings
HG3G HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T HG4G HG1G HG1P HG2J-7U
When using the HG2J-7U, note the following points:
• To use the speaker, USB port must be configured. Select the USB1(USB-A) or the USB2(USB-A) in the
Interface under the Interface Configuration on the Communication Interface tab in the Project
Settings dialog box, and then select the Speaker in the Function.
• To play a sound file saved in an external memory device, configure the Speaker to the USB2(USB-A) in
the Interface under the Interface Configuration on the Communication Interface tab in the
Project Settings dialog box.
Check the IDEC web site for more information about compatible USB speakers.
MICRO/I
HG4G HG3G
HG5G-V HG4G-V HG3G-V
HG2J-7U
MICRO/I
HG4G HG3G
HG5G-V HG4G-V HG3G-V
HG2J-7U
Item Description
File format WAVE file (*.WAV)
Data format PCM
Sampling rate
8000, 11025, 12000, 16000, 24000, 22050, 32000, 44100, 48000
*1
Hz
Quantization bit rate 16-bit
Audio type Mono or stereo
File size Max. 512 kB
