Data Log Function
1.5 Using the Data

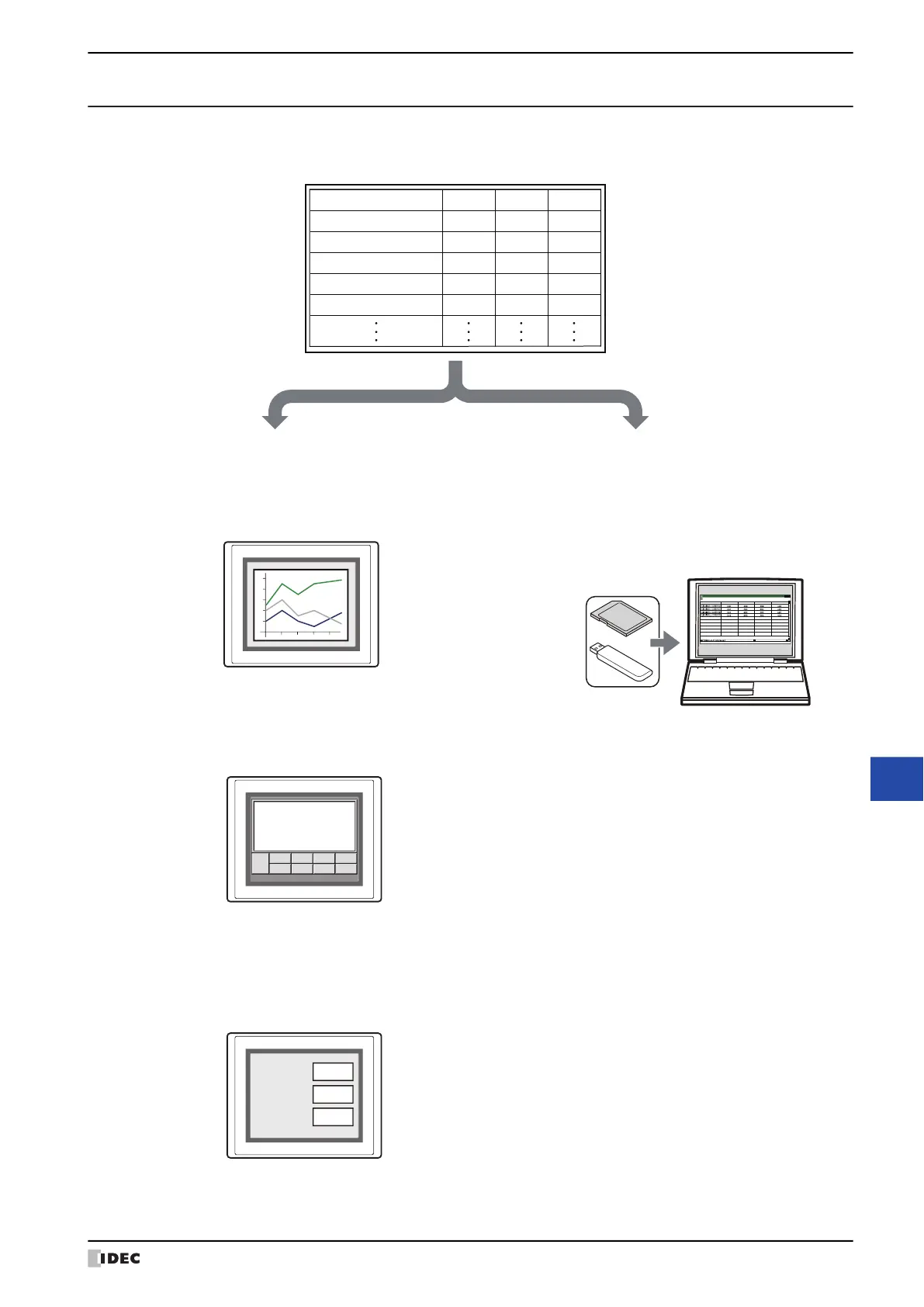

The saved data can be used in the following ways.
*1 USB flash drive inserted in USB1 for HG2J-7U, SD memory card for HG5G/4G/3G/2G-V, HG4G/3G and HG2G-5F,
USB flash drive for HG2G-5T and HG1G/1P
• Display the data in the Line Chart
Configure the data channel numbers and data
numbers and display the data in the Line Chart.
For details, refer to “4.1 Displaying the Data in the
Line Chart” on page 14-33.
• Save to and read from an external memory
device
*1
Output data from the MICRO/I to the an external
memory device as a CSV file and use it on a
computer.
For details, refer to “4.4 Saving the Data as a CSV
File” on page 14-45.
• Display the data with the Data Log Display
Lists the Data Log data saved in the data storage
area and the external memory device.
For details, refer to “4.2 Displaying Data on the
Data Log Display” on page 14-35.
• Display the data with the Numerical Input
or the Numerical Display
Copy the data to an internal device and display it
with the Numerical Input or the Numerical Display.
For details, refer to “4.3 Displaying Data as
Numerical Values” on page 14-36.
Sampling Time Data001 Data002 Data003
01/01/2011 12:00:00 20 120 201
01/01/2011 12:10:00 21 121 204
01/01/2011 12:20:00 22 122 206
01/01/2011 12:30:00 23 123 206
01/01/2011 12:40:00 24 124 210
Data Log data
To use with the MICRO/I To use with devices other than the MICRO/I
Data Log data
(CSV)
Book1
Sampling Time Data001 Data002 Data003 Data004
External Memory Device
Samplong Data and Time
Data001 Data002 Data003
2019/09/0612:00:30 20 120 201
2019/09/0612:01:30 21 121 204
2019/09/0612:02:30 22 122 206
2019/09/0612:03:30 23 123 206
2019/09/0612:04:30 24 124 210
2019/09/0612:05:30 25 125 210
2019/09/0612:06:30 26 126 218
Left
Page Left
Page Down
Up
Page Up
Left
Page Left
Operate
Down
24
124
210
Data001
Data002
Data003
