WindO/I-NV4 User’s Manual 9-19
2 Multi-State Lamp
9
Lamps

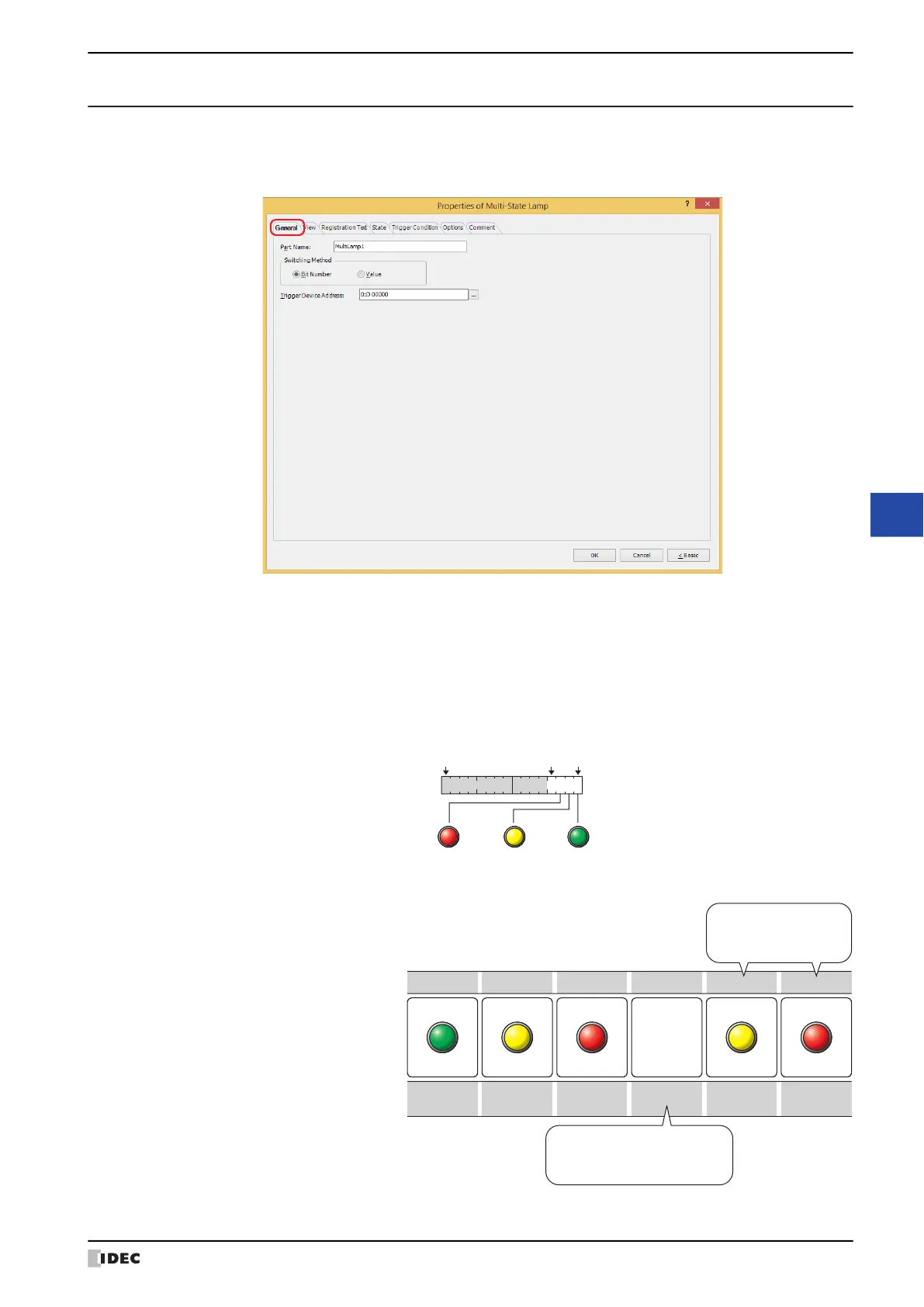

2.3 Properties of Multi-State Lamp Dialog Box
This section describes items and buttons on the properties dialog box.
●
General Tab
■ Part Name
Enter a name for the part. The maximum number is 20 characters.
■ Switching Method
Specify the method to switch drawing objects from the following:
Bit Number: Switches the drawing object displayed, according to the status of the bits.
Example 1: Bit Number is selected. The bits triggered in device address D0 corresponds to the
following pictures and the OFF state is None.
Switches the picture to display according to the status of the bits.
bit15 bit0
bit3
Value of
Trigger Device Address D0
State:
0
State:
1
State:
2
(None)
OFF
Display picture
for bit 0
Display picture
for bit 1
Display picture
for bit 2
No picture
Display picture
for bit 1
Display picture
for bit 2
0001 0010 0100
1000
1110
1100
State:
0
State:
1
State:
1
State:
2
State:
2
Picture to display
Bit state of
Trigger Device Address D0
Action
If multiple bits are 1,
display the picture for the
lowest order bit.
If all bits in the device address are
0 or if a bit with no associated
picture becomes 1, display nothing.
