WindO/I-NV4 User’s Manual 7-3
1 Shapes
7
Drawings

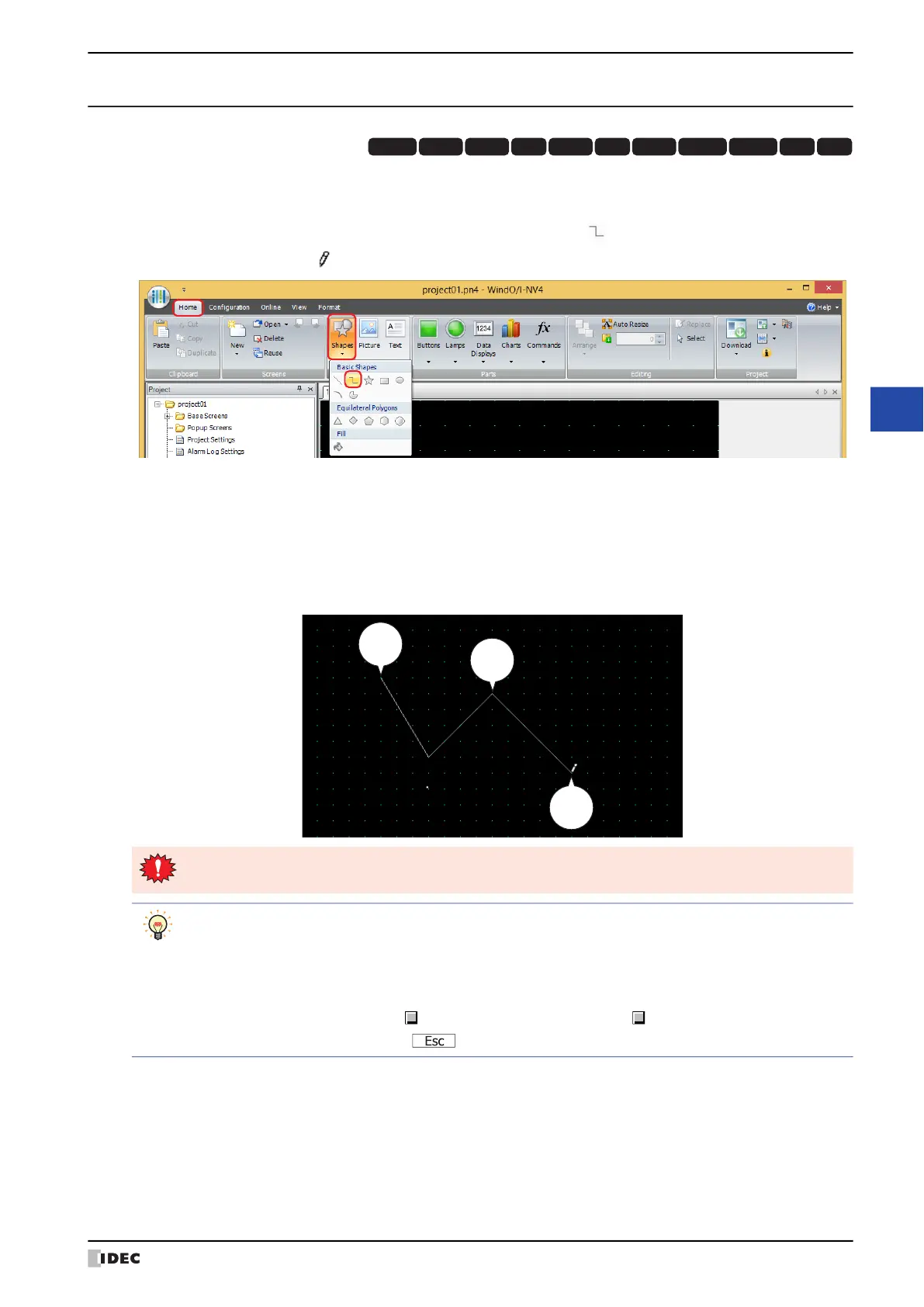

1.2 Polyline
● Polyline Drawing Procedure
This section describes the procedure for drawing polylines.
1 On the Home tab, in the Drawings group, click Shapes, and then click (Polyline) under Basic Shapes.
The mouse cursor changes to (pencil).
2 Click at the location (start point) to start drawing the polyline on the edit screen.
3 Click the end point locations in order.
A line is drawn that connects the start point and the various end point locations in the order that they were created.
4 Double click at the stop point location.
A line is drawn that connects the last end point and the stop point.
HG3G
HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T
HG4G HG1G HG1P
HG2J-7U
End
point
End
point
The maximum number of end points in a polyline, including the start point and the stop point, is 300
points.
• To change the style of the drawn polyline, perform one of the following operations.
- Double click the polyline to open the Properties dialog box
- Select the polyline and select the style with Shape Style on the Format tab
- Select the polyline and open the right click menu
• To change the start point, end points, or the stop point of the drawn polyline, select the polyline and right
click on it, then click Reshape. is displayed on the polyline. Drag to the desired location. Double
click the edit screen or press the key to finish changing the shape.
