1 Shapes
7-2 WindO/I-NV4 User’s Manual

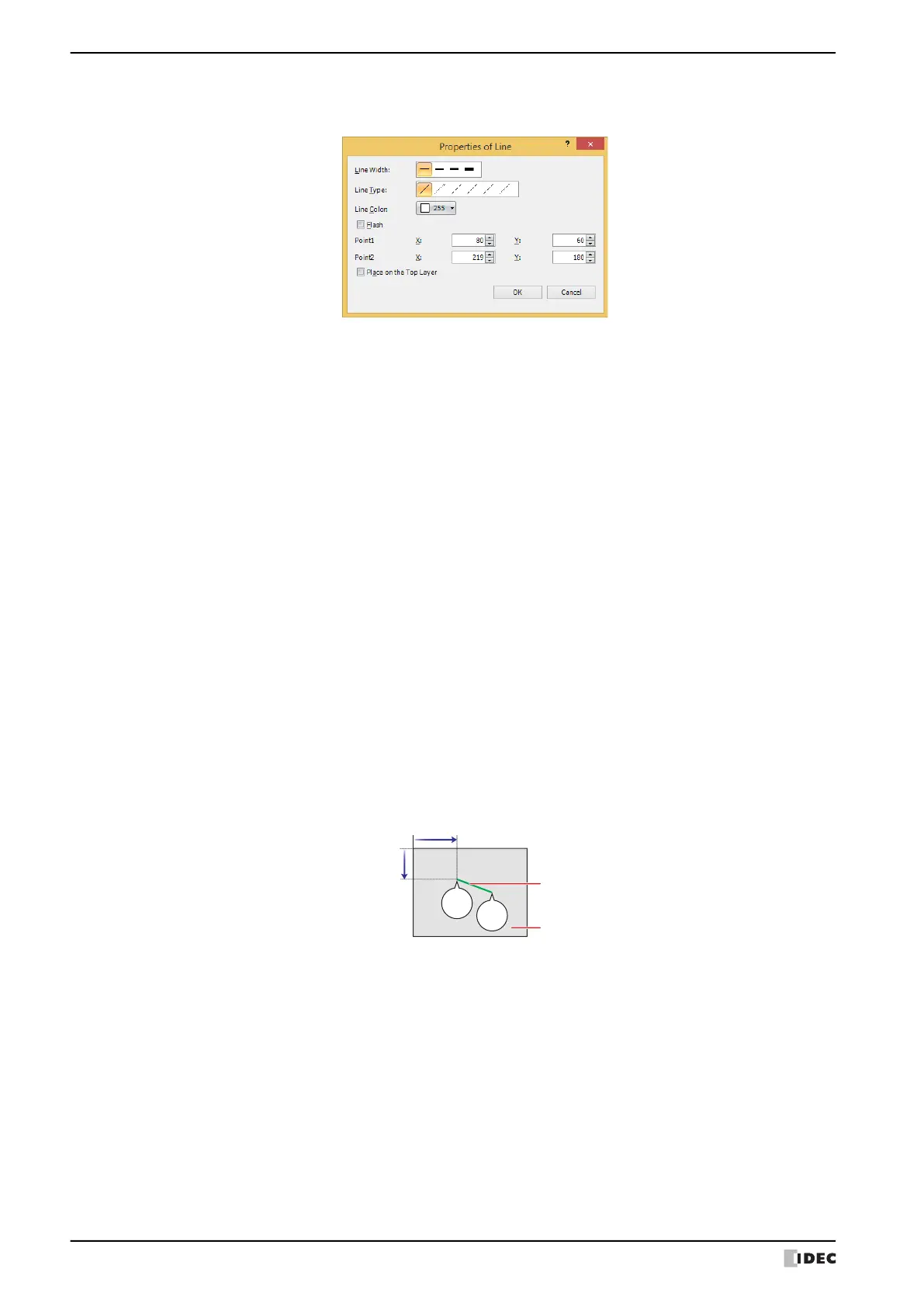

● Properties of Line Dialog Box
This section describes items and buttons in the Properties dialog box.
■ Line Width
Selects the line width for the line from the following.
1 dot, 2 dots, 3 dots, 5 dots
3 dots and 5 dots can only be configured when Solid is selected for Line Type.
■ Line Type
Selects the line type for the line from the following.
Solid, Dot, Dash, Long Dash, Long Dash Dot, Long Dash Dot Dot
Dot, Dash, Long Dash, Long Dash Dot, and Long Dash Dot Dot can only be configured when 1 dot or 2 dots
is selected for Line Width.
■ Line Color
Selects the line color for the line (color: 256 colors, monochrome: 16 shades).
Click this button to display the Color Palette. Select a color from the Color Palette.
■ Flash
Select this check box to make the line flash.
The flash interval is specified with Flashing Cycle on the System tab in the Project Settings dialog box.
■ Point1, Point2
■ Place on the Top Layer
Select this check box to display the line on the top layer. The line will have precedence when other drawings and parts
are overlapping with it. For details, refer to Chapter 6 “4 Drawings and Parts Overlapping” on page 6-5.
X, Y: Specifies the start point and stop point of the line in coordinates.
The upper-left corner of the screen is the origin.
X: 0 to (base screen horizontal size - 1)
Y: 0 to (base screen vertical size - 1)
(0, 0)
X
Y
Screen
Line
Stop
point
Start
point
