Data Displays
This chapter describes how to configure the Data Display parts and their operation on the MICRO/I.
1.1 How the Numerical Input is Used

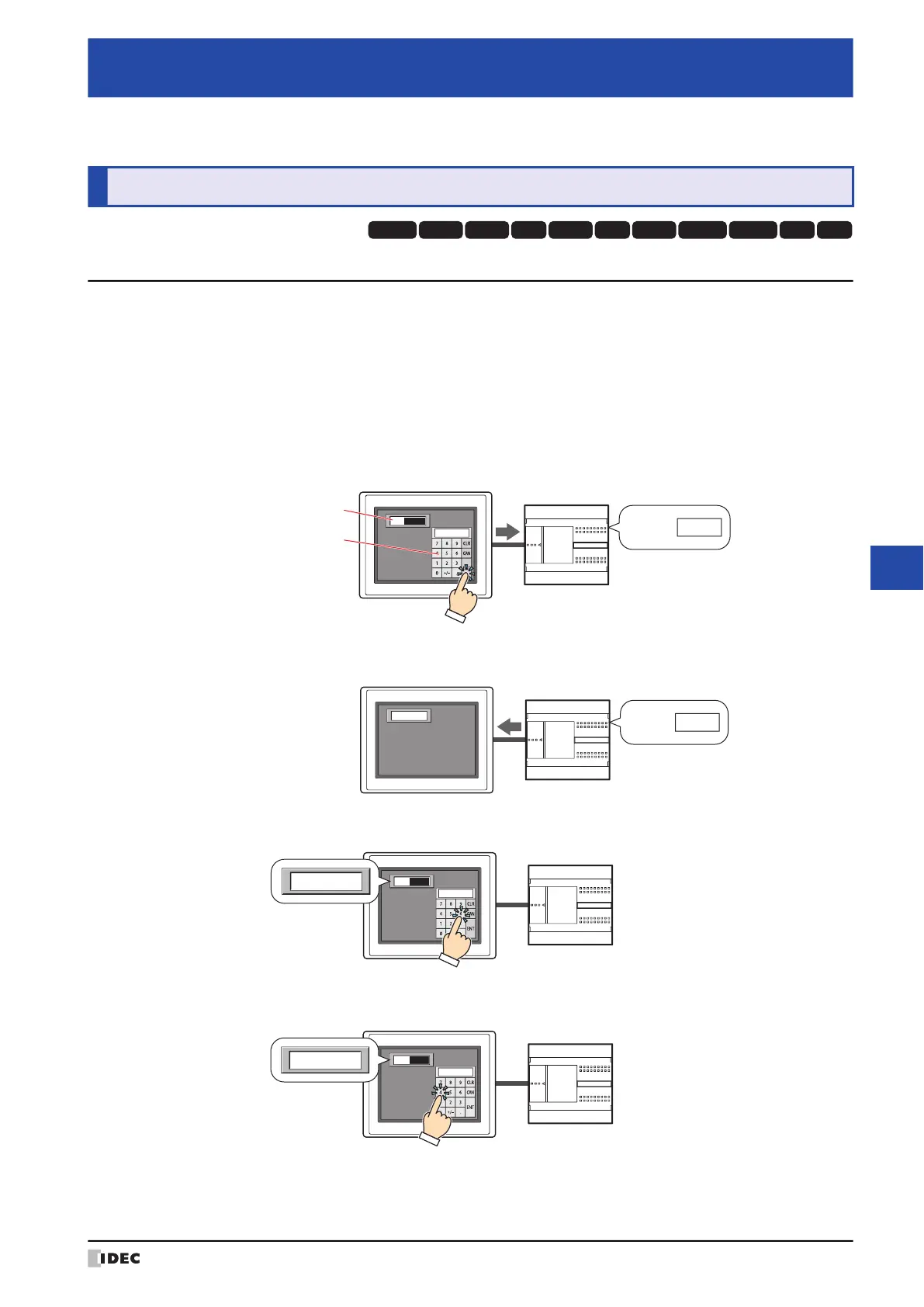

The Numerical Input features a display mode that displays the current value of a device address and an entry mode
that enters a value using the keypad or key buttons and writes that value to a device address. When the part is
displayed on the screen, the Numerical Input is in display mode. To enter a value by pressing the keypad or key
buttons, touch the Numerical Input to switch it to entry mode. In entry mode, the value of device address is displayed
until a value is entered.
The Numerical Input can perform the following functions.
• Write a value entered with the keypad or key buttons to a device address
• Display the current value of a device address
• Enter and display decimal numbers
• Display the entered value as * (asterisk)
Chapter 10 Data Displays
1 Numerical Input
HG3G HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T HG4G HG1G HG1P HG2J-7U
MICRO/I
External device
999
999
D100
：
999
Numerical Input
Standard keypad
MICRO/I
External device
1234
D100:
1234
MICRO/I
External device
12.30
45.6
12.30
MICRO/I
****
****
External device
