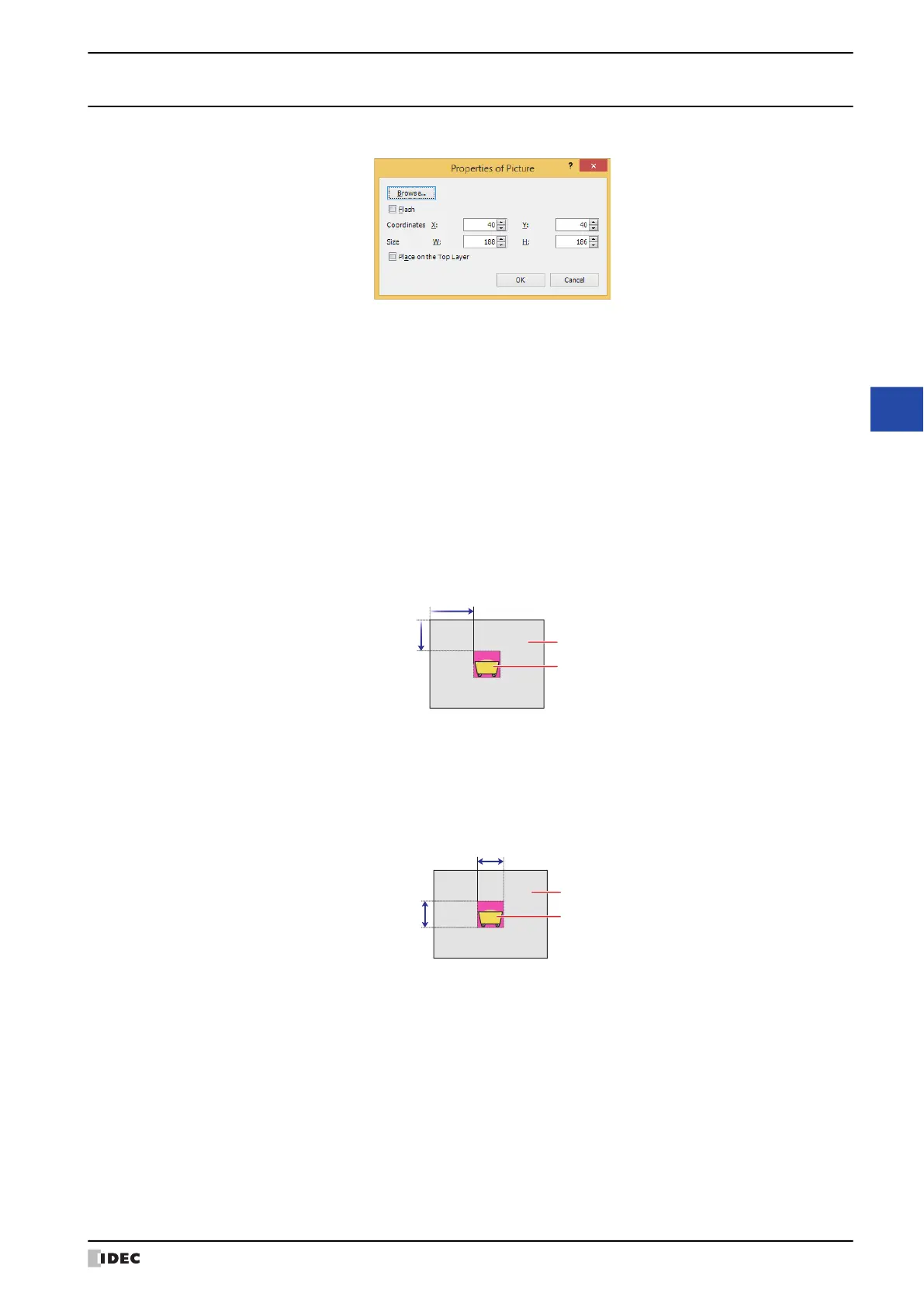

2.2 Properties of Picture Dialog Box
This section describes items and buttons in the Properties dialog box.
■ Browse
Changes the picture placed on the screen. Click this button to display Picture Manager.
■ Flash
Select this check box to make the picture flash.
The flash interval is specified with Flashing Cycle on the System tab in the Project Settings dialog box.
■ Coordinates
■ Size
■ Place on the Top Layer
Select this check box to display the picture on the top layer. The picture will have precedence when other drawings
and parts are overlapping with it. For details, refer to Chapter 6 “4 Drawings and Parts Overlapping” on page 6-5.
X, Y: Specifies the display position of the picture in coordinates.
With the upper-left corner of the screen as the origin, the upper-left corner of the rectangle that
circumscribes the picture is the X and Y coordinates.
X: 0 to (base screen horizontal size - 1)
Y: 0 to (base screen vertical size - 1)
W, H: Specifies the size of the picture in width and height.
W: 1 to (base screen horizontal size)
H: 1 to (base screen vertical size)
Width
Height
Screen
To Next Page
