IDEC WindO/I-NV4 User Manual

2 Word Write Command
12-12 WindO/I-NV4 User’s Manual

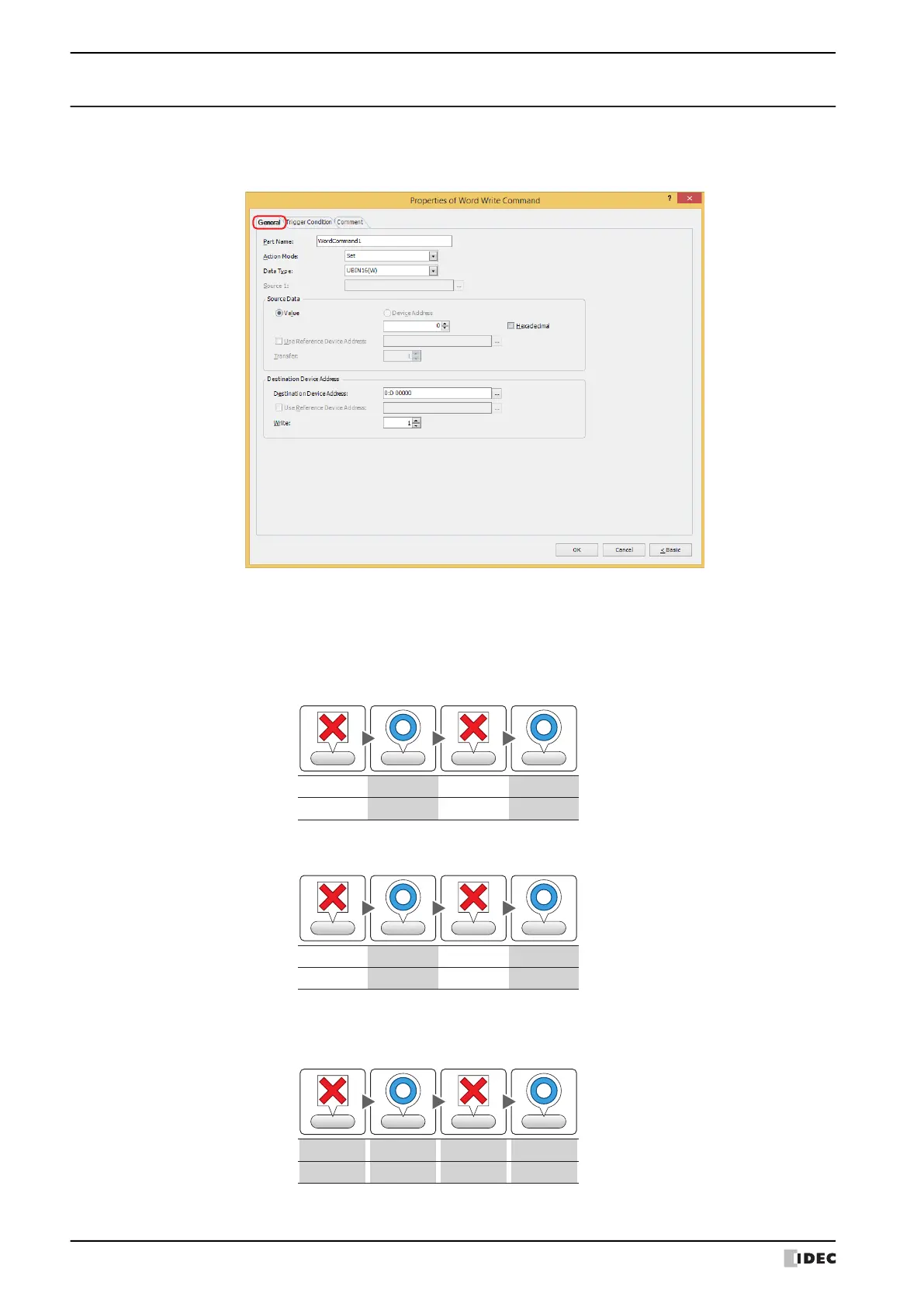

2.3 Properties of Word Write Command Dialog Box
This section describes items and buttons in the Properties dialog box.
●
General Tab
■ Part Name
Enter a name for the part. The maximum number is 20 characters.
■ Action Mode
Select the action to perform when the trigger condition is satisfied from the following:
Set: Writes a fixed value to the specified word device when the trigger condition is satisfied.
Move: Writes the value in the source device address to the destination word device when the trigger condition is
satisfied.
Momentary: Writes the fixed ON Data value to the specified word device when the trigger condition is satisfied.
Writes the fixed OFF Data value to the specified word device when the trigger condition is no longer
satisfied.
State of condition
Data written
Write
Action
Write
Value
Value
Condition Condition Condition Condition
SatisfiedSatisfiedSatisfiedNot satisfiedNot satisfiedNot satisfied SatisfiedSatisfiedSatisfied
Not satisfiedNot satisfiedNot satisfied
State of condition
Data written
Write
Action
Write
Value in
device address
Value in
device address
Condition Condition Condition Condition
SatisfiedSatisfiedSatisfiedNot satisfiedNot satisfiedNot satisfied SatisfiedSatisfiedSatisfied
Not satisfiedNot satisfiedNot satisfied
State of condition
Data written
Write
Action
OFF Data
Write
ON Data
Write
OFF Data
Write
ON Data
Condition Condition Condition Condition
SatisfiedSatisfiedSatisfiedNot satisfiedNot satisfiedNot satisfied SatisfiedSatisfiedSatisfied
Not satisfiedNot satisfiedNot satisfied
