WindO/I-NV4 User’s Manual 3-105

7 BACnet Communication

Communication

7.6 BACnet/IP Settings Procedure

This section describes the procedure for setting BACnet/IP.

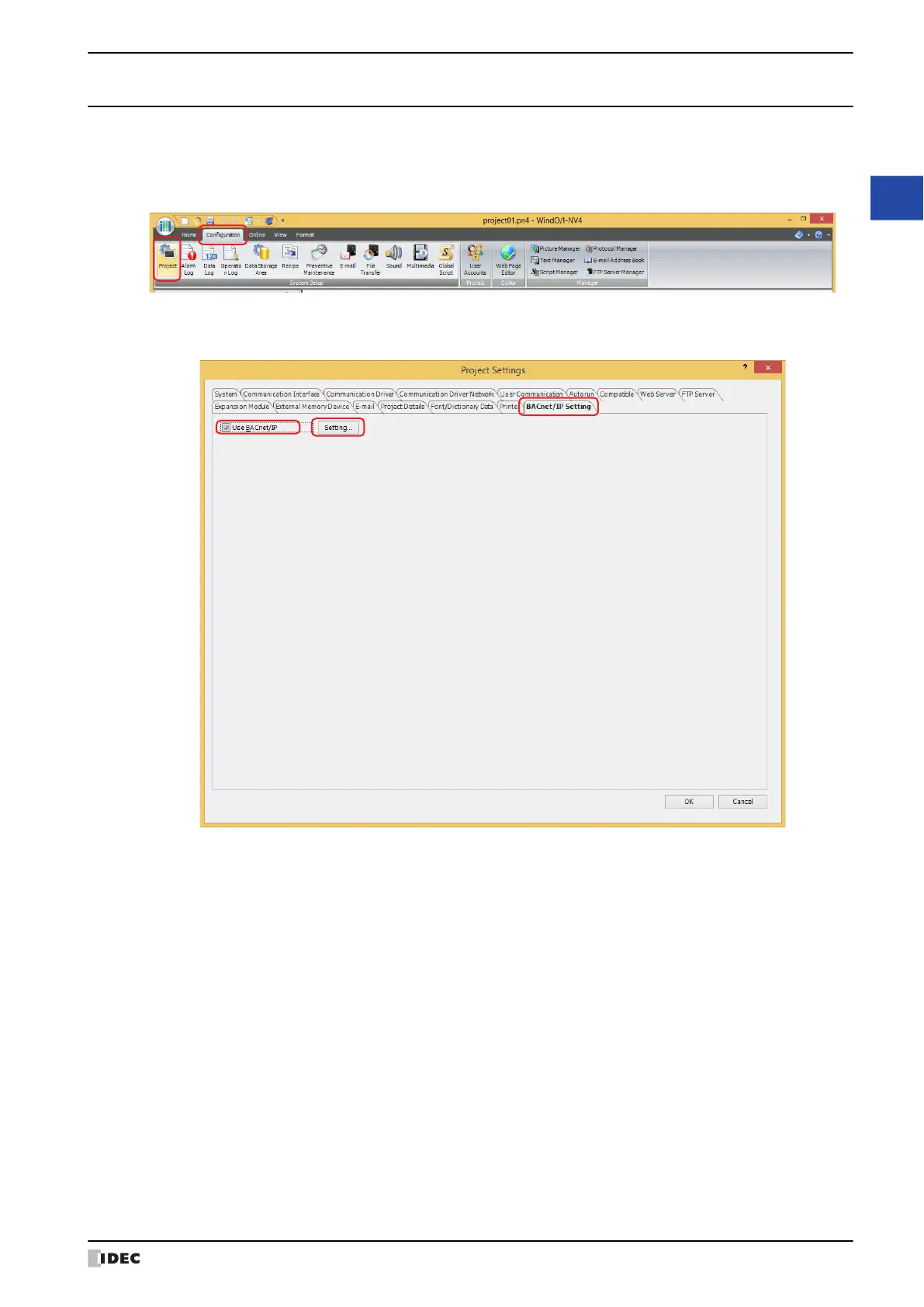

1 On the Configuration tab, in the System Setup group, click Project.

The Project Settings dialog box is displayed.

2 Click the BACnet/IP Settings tab, select the Use BACnet/IP check box and click Settings.

The BACnet Settings dialog box is displayed.

3 Configures a basic settings of BACnet/IP.

For details, refer to “BACnet/IP Settings” on page 3-108.
