2.9 USB Cable Lock Pin Attachment

When using the USB device, attach the USB Cable Lock Pin to prevent disconnecting the USB cable from the HG5G/4G/

3G/2G-V.

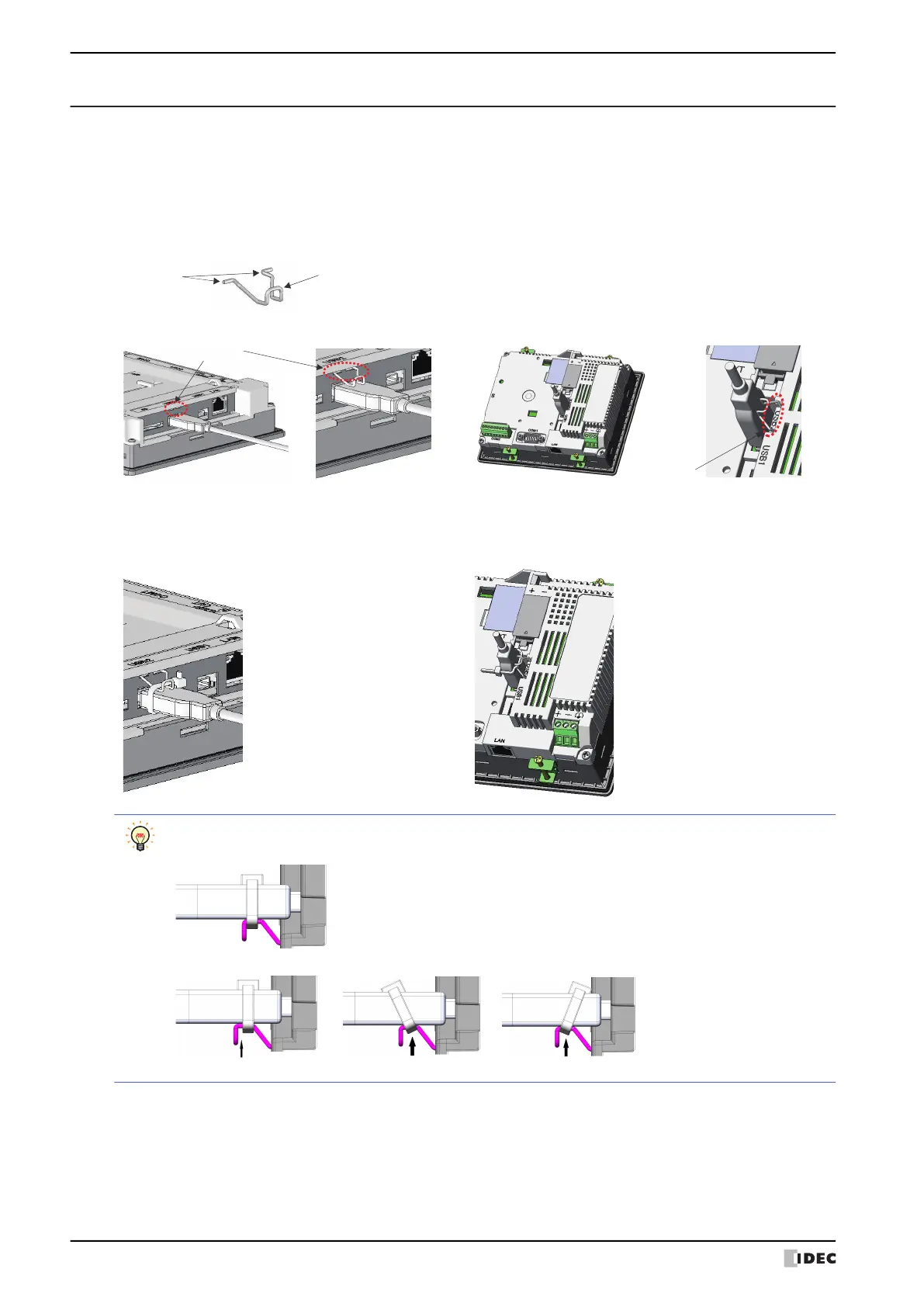

1 Insert the USB cable into the USB2 port.

2 Strain the [Edge part] of the USB Cable Lock Pin, and insert the [Edge part] to the 2 holes upper the USB2 port.

3 Fasten the USB Clamp Band around the USB cable and the [Clamp part], secure them tightly.

Clamp part

Edge part

HG5G/4G/3G-V HG2G-V

Upper Holes

HG5G/4G/3G-V

HG2G-V

Fasten the USB Clamp Band without the space between the [Clamp part] and it, and the inclination.

NG NG

With a gap

Slanted
