WindO/I-NV4 User’s Manual 35-65

4 HG2G-5T, HG1G

MICRO/I Specifications

4.9

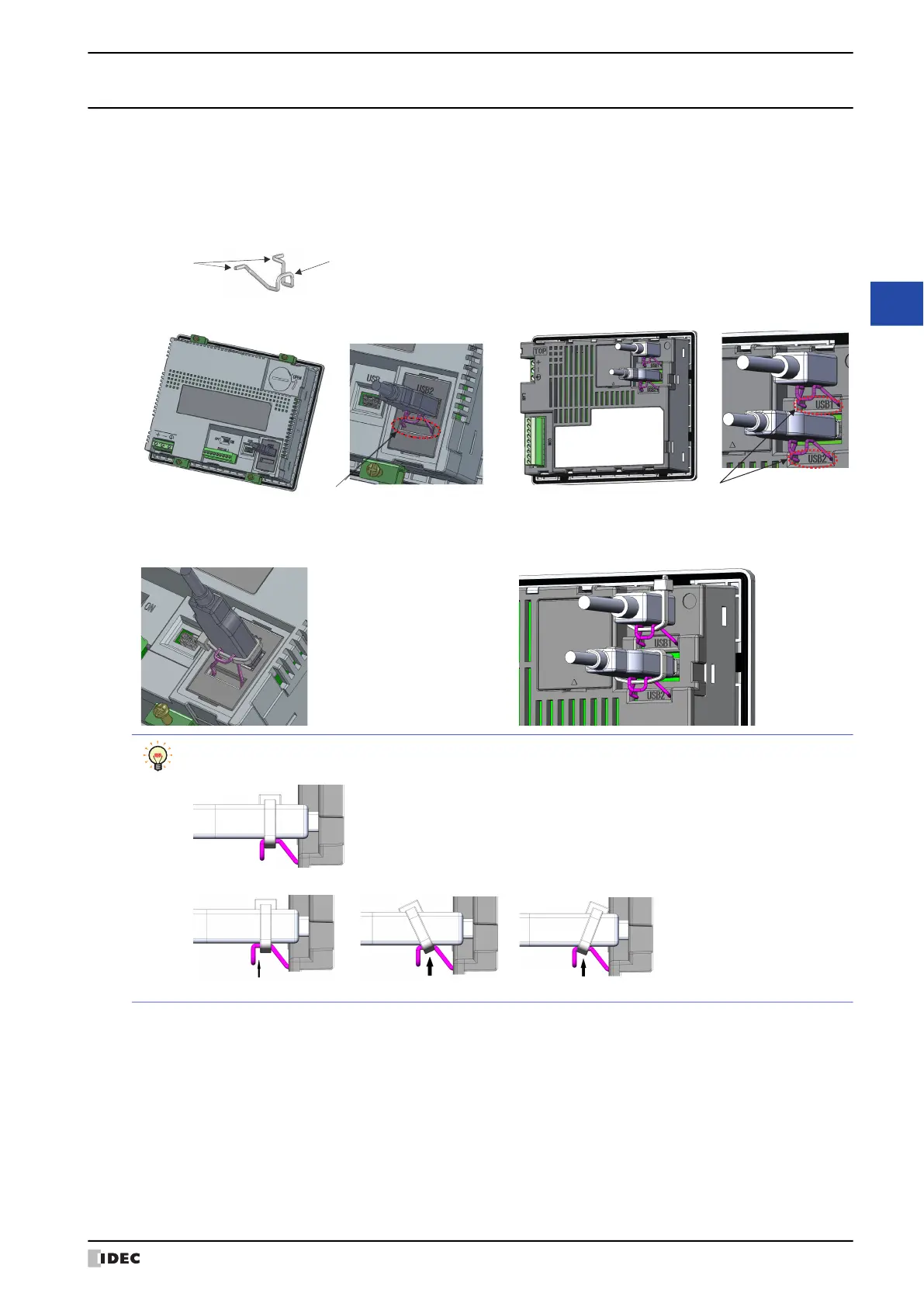

USB Cable Lock Pin Attachment

When using the USB device, attach the USB Cable Lock Pin to prevent disconnecting the USB cable from the HG2G-5T

HG1G.

1 Insert the USB cable into the USB2 port.

2 Strain the [Edge part] of the USB Cable Lock Pin, and insert the [Edge part] to the 2 holes lower the USB2 port.

3 Fasten the USB Clamp Band around the USB cable and the [Clamp part], secure them tightly.

*1 Only USB2 for HG2G-5T

Clamp part

Edge part

Lower holes

HG2G-5T HG1G

HG2G-5T

HG1G

Fasten the USB Clamp Band without the space between the [Clamp part] and it, and the inclination.

NG NG

With a gap

Slanted
