WindO/I-NV4 User’s Manual 13-33

4 Using Data and Detected Alarms

Alarm Log Function

4.2 Displaying Registered Messages with the Alarm List Display According to the Active Alarm

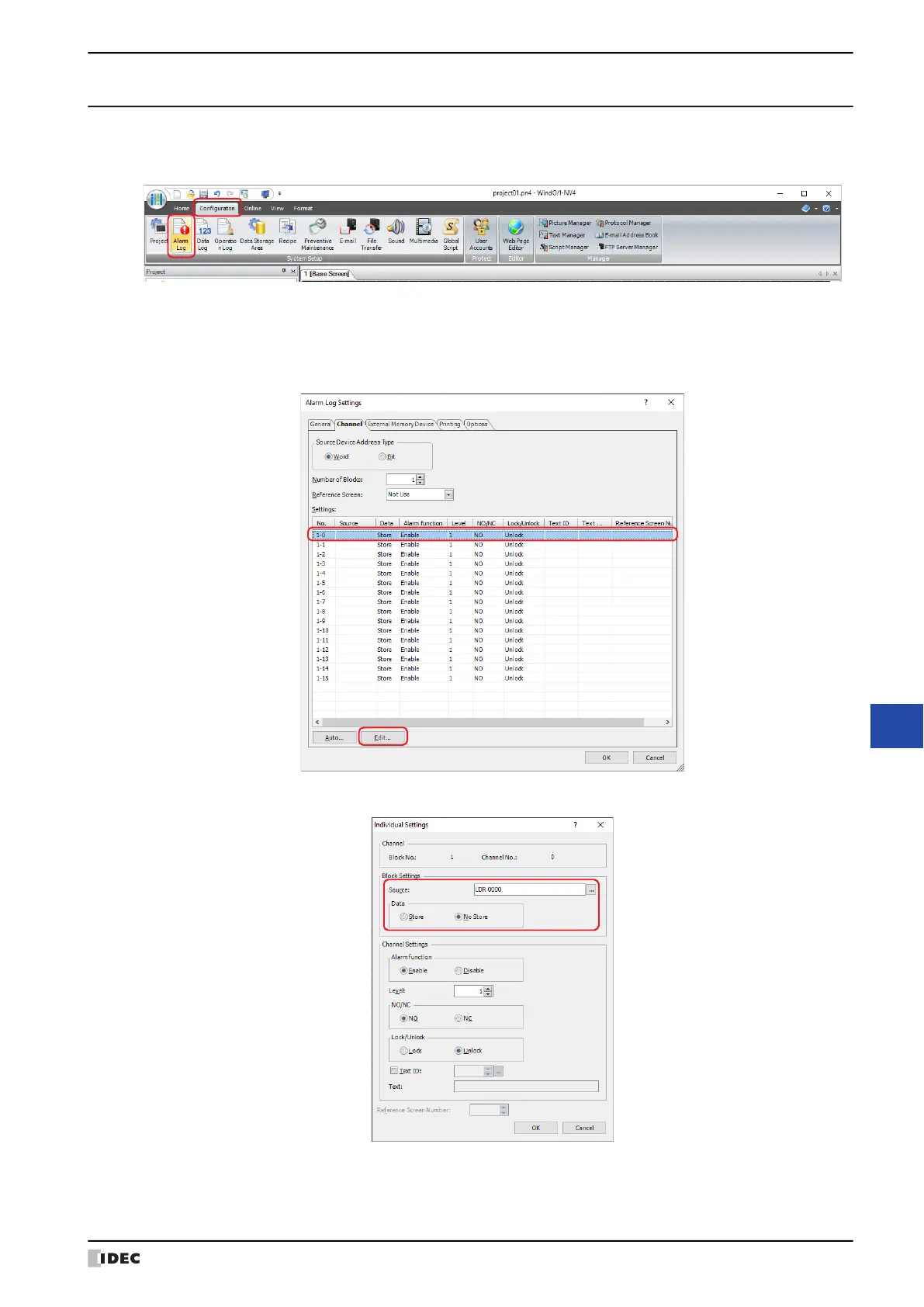

1 On the Configuration tab, in the System Setup group, click Alarm Log.

The Alarm Log Settings dialog box is displayed.

2 Select the type of device address to monitor under Source Device Address Type on the Channel tab and specify

Number of Blocks.

3 Select the channel number to register a message to and click Edit.

The Individual Settings dialog box is displayed.

4 Specify the device address to monitor in Source and select No Store under Data.
