4 Creating and Deleting Data for Recipes

18-14 WindO/I-NV4 User’s Manual

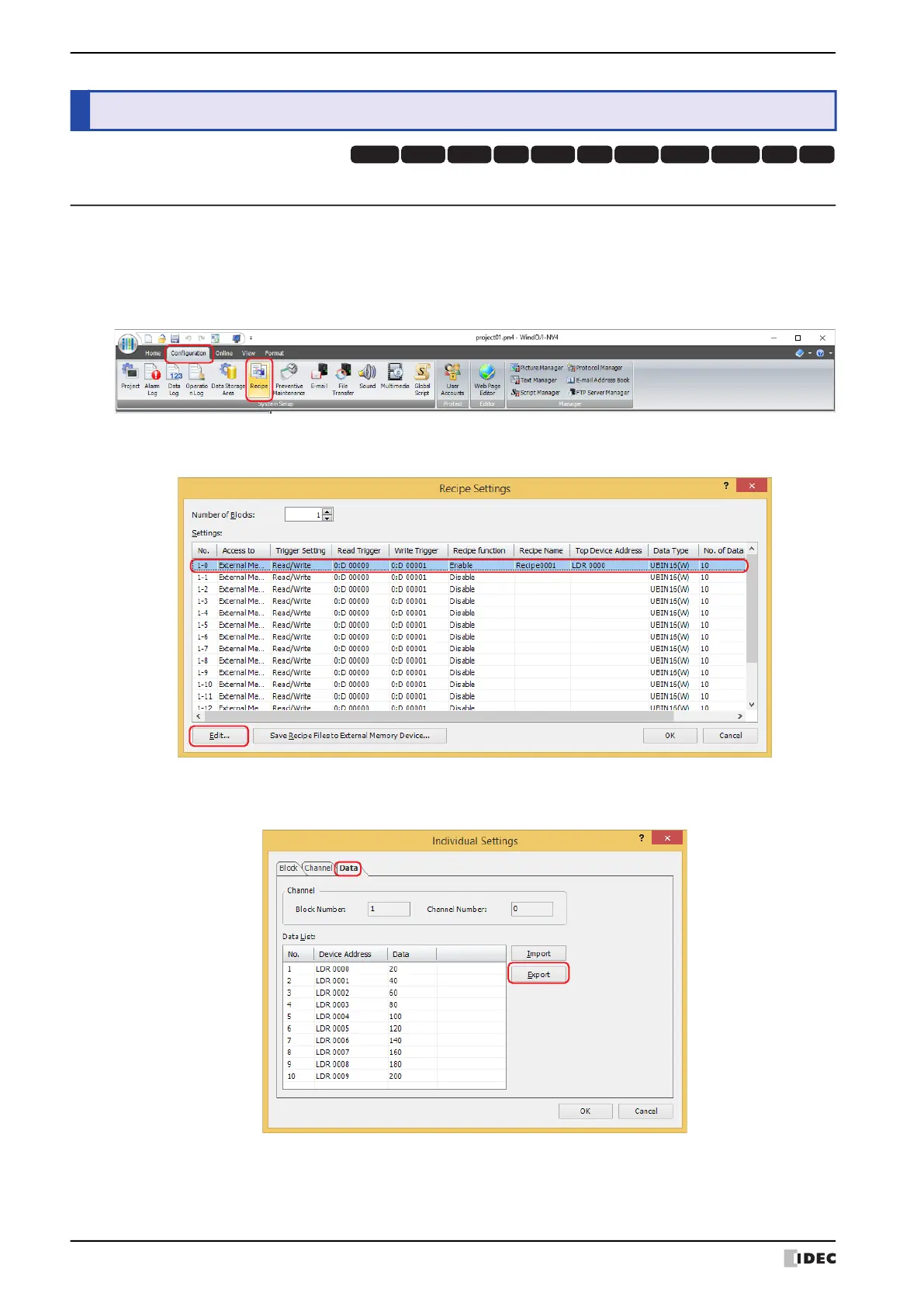

4.1 Editing Recipe Data

You can export recipe data for the selected channel, edit the recipe values in a saved file, and import a recipe file back

into WindO/I-NV4.

1 On the Configuration tab, in the System Setup group, click Recipe.

The Recipe Settings dialog box is displayed.

2 Select the channel number to export its recipe data in Settings, then click Edit.

The Individual Settings dialog box is displayed.

3 Click the Data tab, then click Export.

The Save As dialog box is displayed.

4 Creating and Deleting Data for Recipes

HG3G

HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T

HG4G HG1G HG1P

HG2J-7U
