WindO/I-NV4 User’s Manual 18-15

4 Creating and Deleting Data for Recipes

Recipe Function

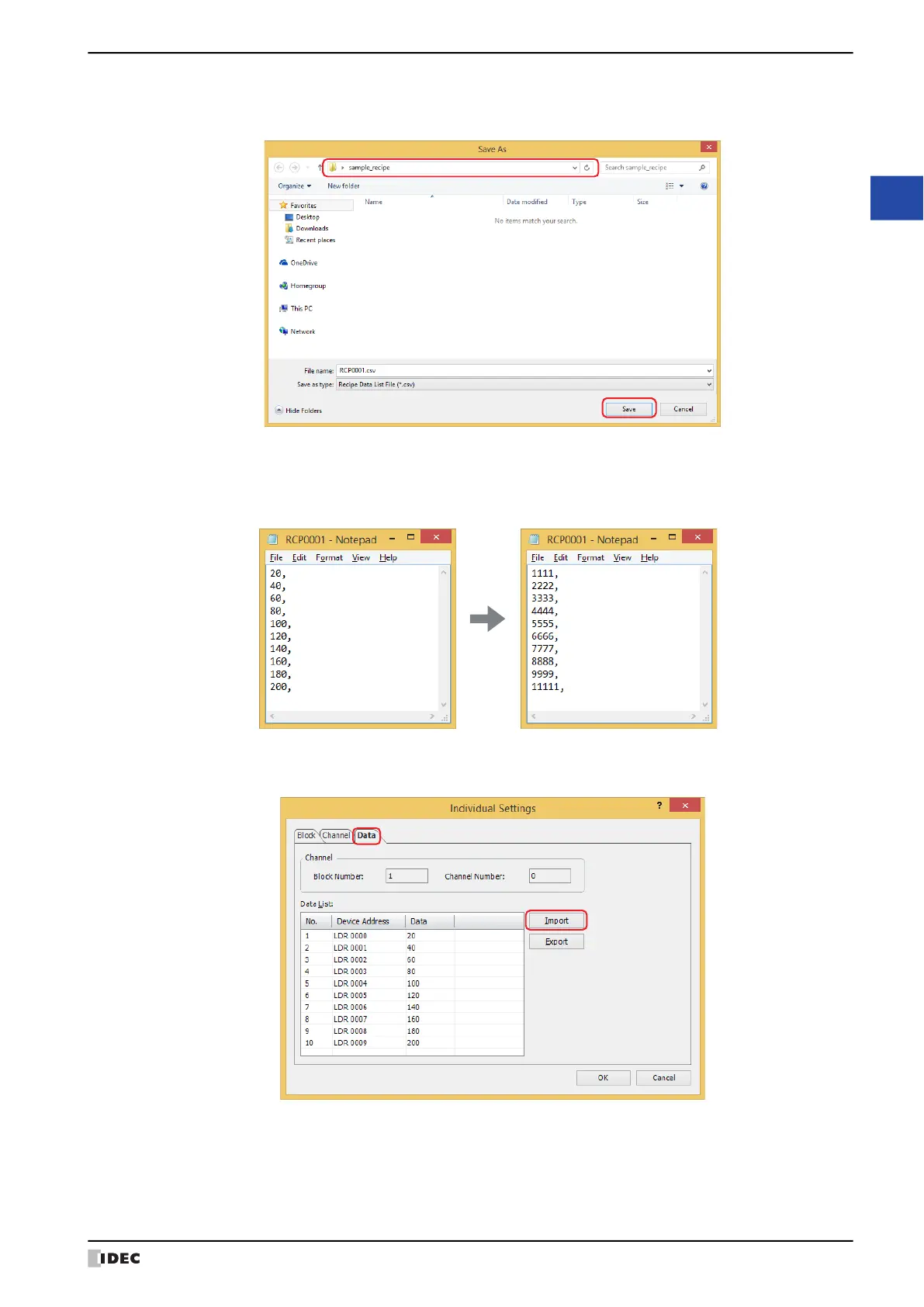

4 Specify the save location and click Save.

The file name specified on the Block tab in the Individual Settings dialog box is entered in File name.

5 Open the exported recipe data file.

Use Notepad, a commercially available text editor, or spreadsheet software.

6 Edit the values and save the file.

7 Return to the Data tab in the Individual Settings dialog box and click Import.

The Open dialog box is displayed.
