3 Project Settings Dialog Box
4-76 WindO/I-NV4 User’s Manual

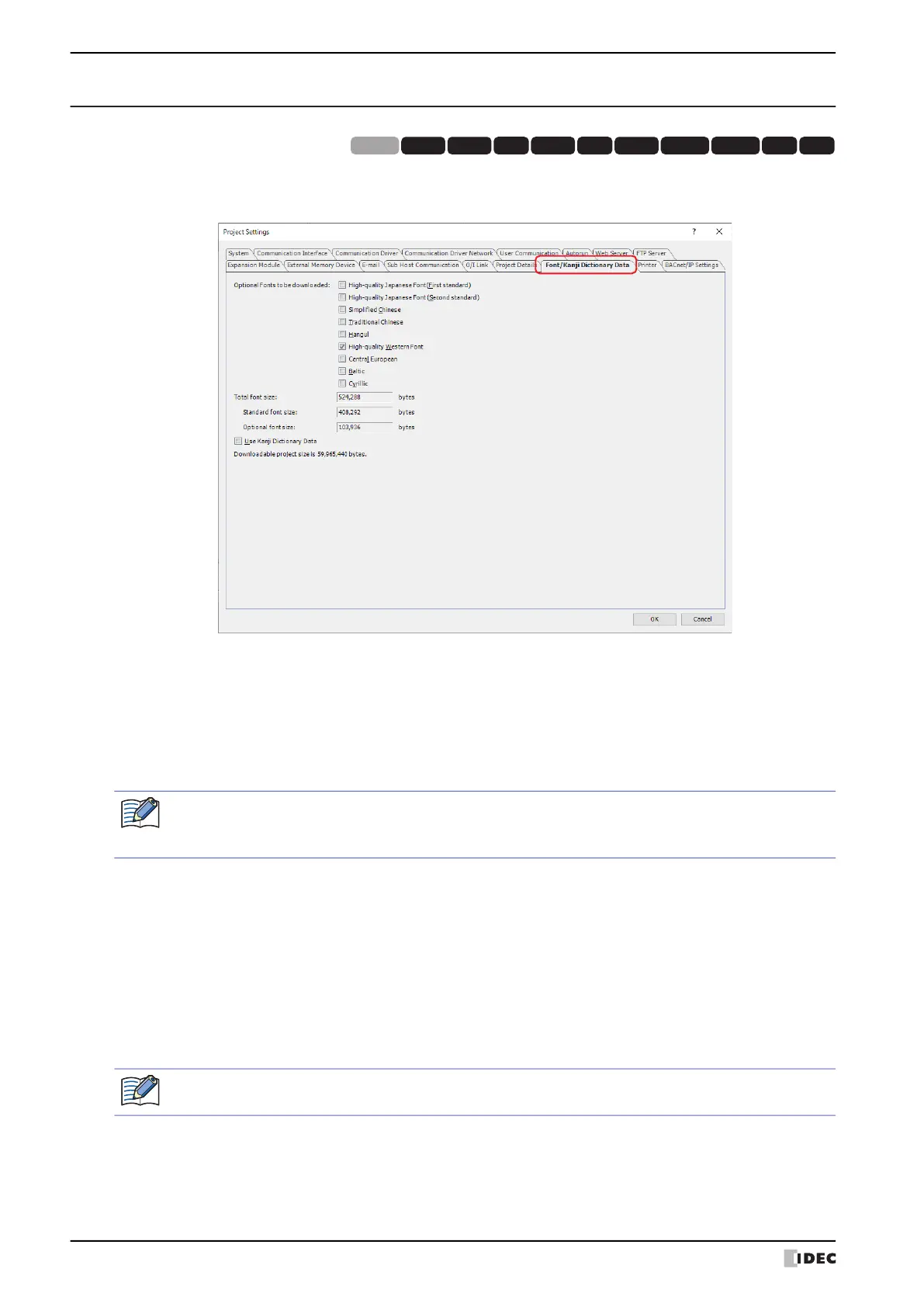

3.16 Font/Kanji Dictionary Data Tab
The Font/Kanji Dictionary Data tab is used to configure the optional fonts and the Kanji dictionary data when
downloading to the MICRO/I.
■ Optional Fonts to be downloaded
Select the optional fonts for download to the MICRO/I. Select the check boxes for the optional fonts when
downloading:
Japanese Large Font (First standard), Japanese Large Font (Second Standard),
High-quality Western Font, Simplified Chinese, Traditional Chinese, Hangul, Central European, Baltic,
Cyrillic.
■ Total font size
Shows the total size of the standard fonts and selected optional fonts.
If no optional fonts are selected for download to the MICRO/I, shows the size of the standard fonts.
■ Use Kanji Dictionary Data
*1
Select this check box to download the Kanji dictionary data to the MICRO/I.
*1 HG5G/4G/3G/2G-V only
HG3G
HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T
HG4G HG1G HG1P
HG2J-7U
• Optional fonts, if left cleared, will be removed from the MICRO/I when the project data is downloaded.
• The check boxes for optional fonts used in drawings, parts, and Text Manager are automatically selected.
For details about optional fonts, refer to Chapter 2 “Installed Fonts in the MICRO/I” on page 2-7.
Standard font size: Shows the total size of the standard fonts.
Optional font size: Shows the total size of the selected optional fonts.
If the Use Kanji Dictionary Data check box was cleared, will be removed the Kanji dictionary data from
the MICRO/I when the project data is downloaded.
