WindO/I-NV4 User’s Manual 10-25
1 Numerical Input
10
Data Displays
1.4 How to Enter Values
Use the keypad or key buttons to write a value to a device address with the Numerical Input. The input methods are
as follows.

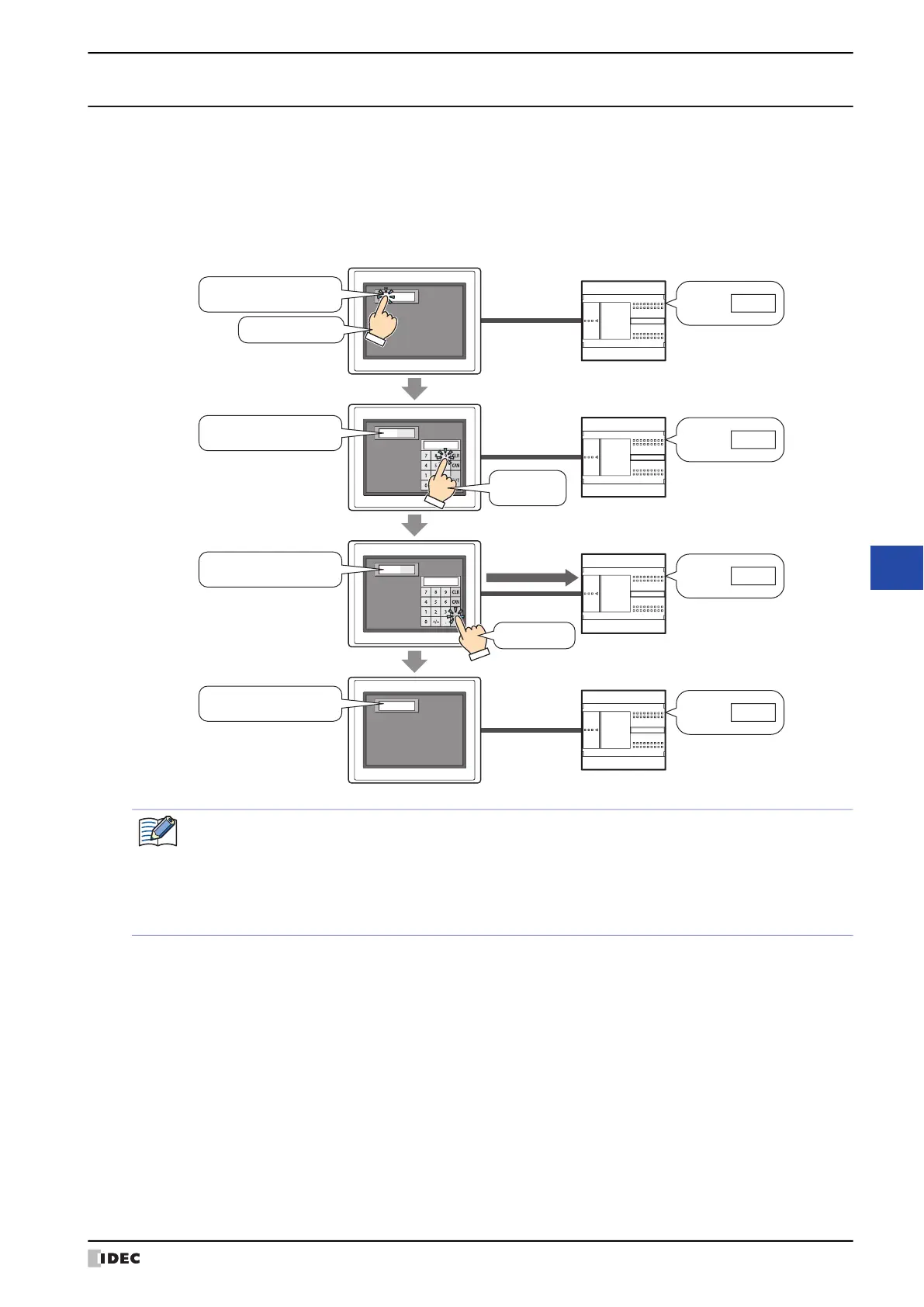

â– Pressing the Numerical Input and Entering Values from the Standard Keypad
Arrange a Numerical Input on the screen and in its properties dialog box, on the General tab, under Keypad, select
Standard for Type.
External device
MICRO/I
1234
999
1234
999
999
D100:
1234
D100:
1234
D100:
999
999
D100:
999
Press Numerical Input
Write value
to device address
Press ENT
Display value of device address
(Entry mode)
Display value of device address
(Entry mode)
Close standard keypad
Display standard keypad
Enter "999"
Display value of device address
(Display mode)
Display value of device address
(Display mode)
When the following operations are performed, entry mode is canceled and the current value of device
address is displayed in the Numerical Input. To enter a value, press the Numerical Input again to set it to
entry mode.
• CAN was pressed
• When the Focus is moved by ENT button check box on the General tab is cleared and ENT was
pressed and a value was written to the device address
