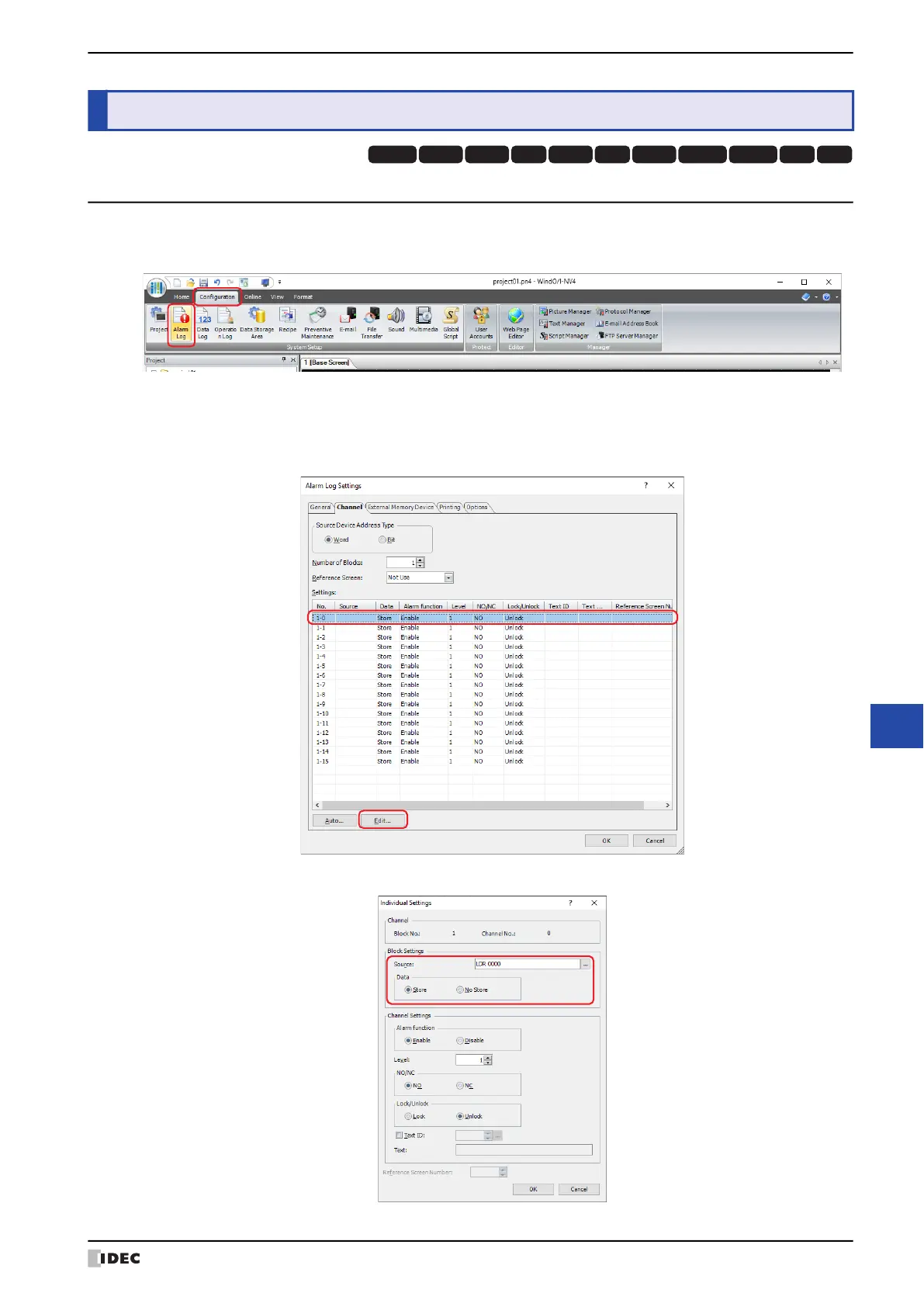

WindO/I-NV4 User’s Manual 13-31

4 Using Data and Detected Alarms

Alarm Log Function

4.1 Displaying Saved Data with the Alarm Log Display

1 On the Configuration tab, in the System Setup group, click Alarm Log.

The Alarm Log Settings dialog box is displayed.

2 Select the type of device address to monitor under Source Device Address Type on the Channel tab and specify

Number of Blocks.

3 Select the channel number to register and click Edit.

The Individual Settings dialog box is displayed.

4 Specify the device address to monitor in Source and select Store under Data.

4 Using Data and Detected Alarms

HG3G

HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T

HG4G HG1G HG1P

HG2J-7U
