Drawings

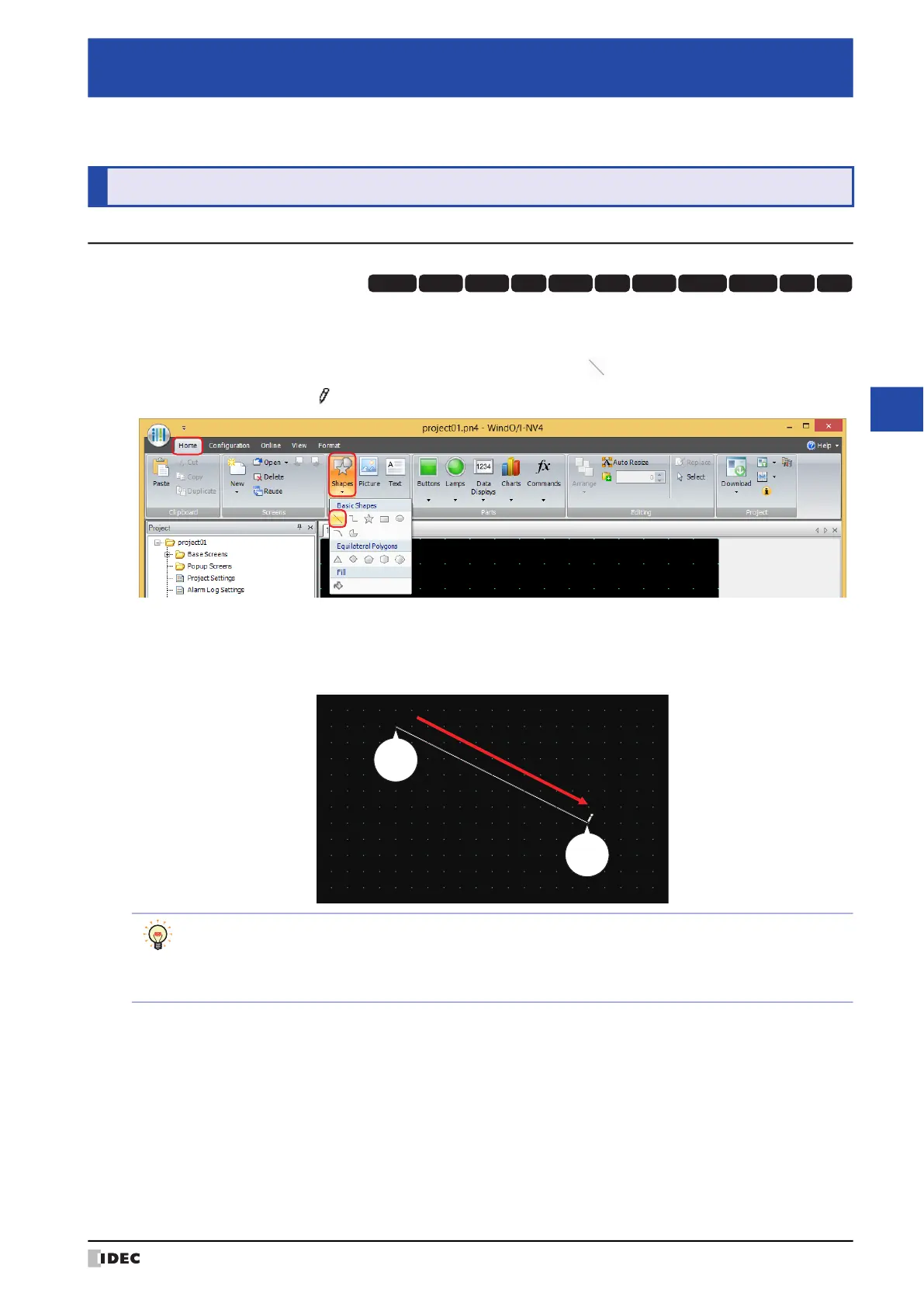

This chapter describes the procedures for drawing with shapes and the procedures for configuring pictures and text.
1.1 Line
● Line Drawing Procedure
This section describes the procedure for drawing lines.
1 On the Home tab, in the Drawings group, click Shapes, and then click (Line) under Basic Shapes.
The mouse cursor changes to (pencil).
2 Click and hold the mouse button at the location (start point) to start drawing the line on the edit screen.
3 Drag the mouse to the stop point location.
A line is drawn that connects the start point and stop point.
Chapter 7 Drawings
1 Shapes
HG3G
HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T
HG4G HG1G HG1P
HG2J-7U
Start
point
Stop
point
Drag
To change the style of the drawn line, perform one of the following operations.
• Double click the line to open the Properties dialog box
• Select the line and select the style with Shape Style on the Format tab
• Select the line and open the right click menu
To Next Page
