2 Multimedia Function Configuration Procedure

Multimedia Function

2.3 Configuring the Video Input

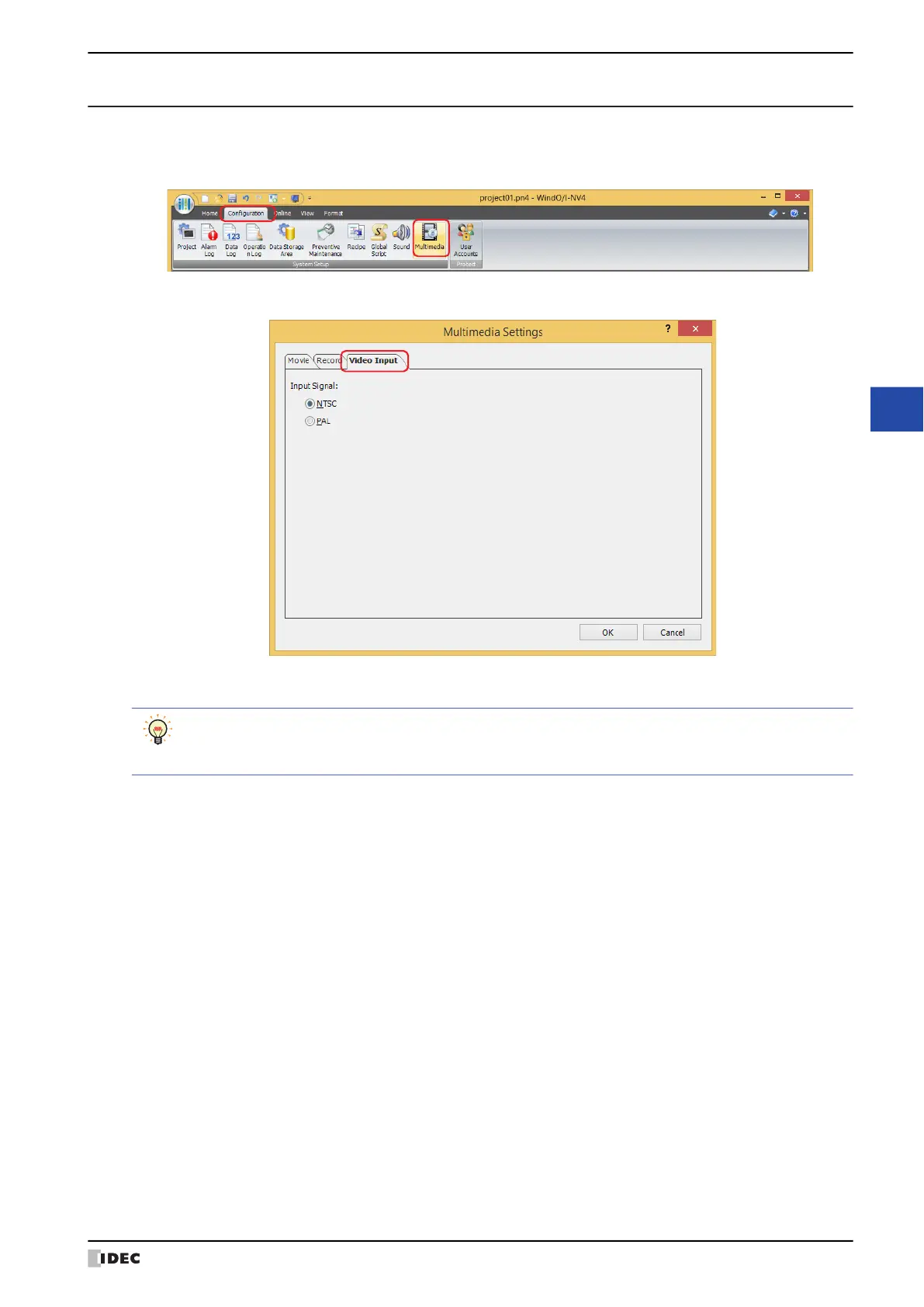

1 On the Configuration tab, in the System Setup group, click Multimedia.

The Multimedia Settings dialog box is displayed.

2 Click the Video Input tab.

3 Select NTSC or PAL for the signal standard of the device connected to the MICRO/I.

4 Click OK.

The Multimedia Settings dialog box closes.

This concludes configuring the video input.

The adopted format for the signal standard differs according to the country or region.

NTSC: Japan, Korea, Taiwan, North America, Central America, South America, others

PAL: Europe, China, the Middle East, South East Asia, others
