3 Analog I/O Modules
30-14 WindO/I-NV4 User’s Manual

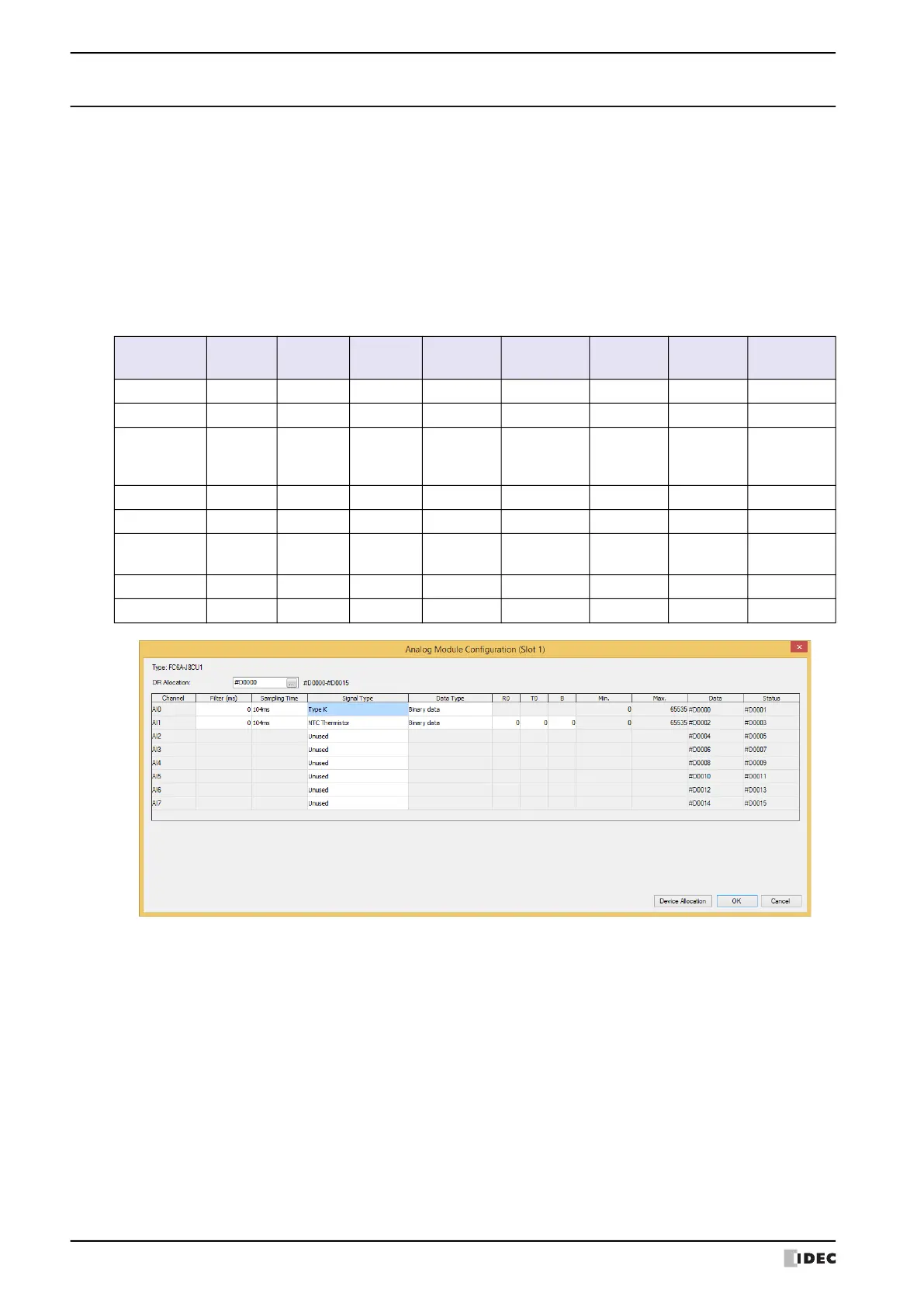

3.2 Analog I/O Module Parameter Settings
Analog I/O Module Parameter Settings are configured for each channel. The parameters to configure differ according
to the analog I/O module type and I/O type. Please configure the parameter settings according the application in the
Analog Module Configuration dialog box.
For details on configuration methods, refer to “5 Module Configuration Dialog Box” on page 30-30
●
Analog Input Type
The following parameters are for configuring the analog inputs on the analog input modules and the mixed analog I/
O modules.
YES: Parameters, NO: No parameters
Parameter
FC6A-J2C1
FC6A-J2C4
FC6A-J4A1
FC6A-J4A4
FC6A-J8A1
FC6A-J8A4
FC6A-J4CN1
FC6A-J4CN4
FC6A-J4CH1Y
FC6A-J4CH4Y
FC6A-J8CU1
FC6A-J8CU4
FC6A-L06A1
FC6A-L06A4
FC6A-L03CN1
FC6A-L03CN4
Signal Type YES YES YES YES YES YES YES YES
Data Type YES YES YES YES YES YES YES YES
Minimum and
maximum
values
YES YES YES YES YES YES YES YES
Filter YES YES YES YES YES YES YES YES
Sample Time YES YES YES YES YES YES YES YES
Thermistor
Settings
NO NO NO NO NO YES NO NO
Data YES YES YES YES YES YES YES YES
Status YES YES YES YES YES YES YES YES
