WindO/I-NV4 User’s Manual 8-163
9 Potentiometer
8
Buttons

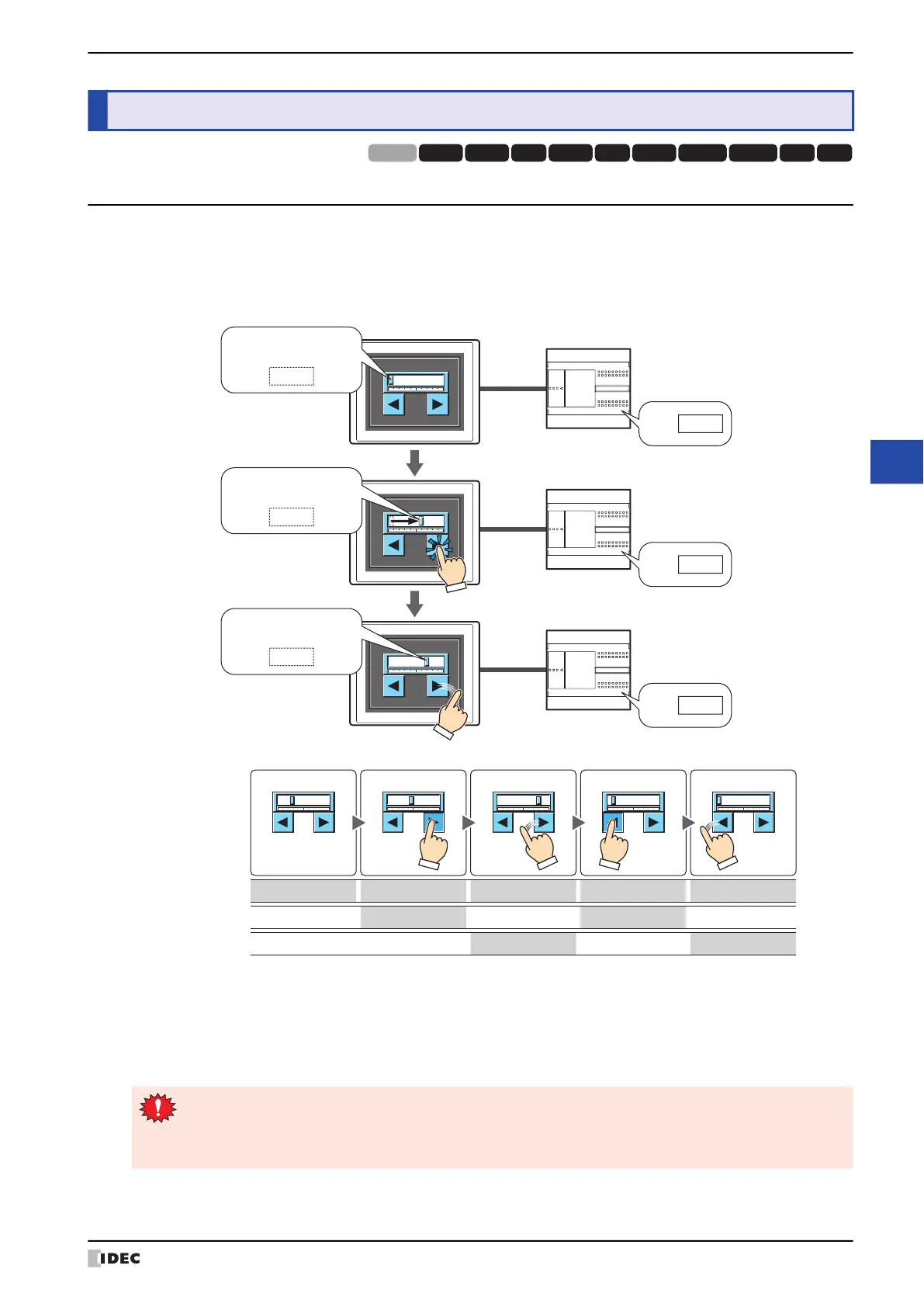

9.1 How the Potentiometer is Used
Writes a value to a word device by pressing a slider button.
• The slider display position increases and decreases while the button is depressed. The value of the slider at the
displayed position is written to the device address when the button is released.
The slider indicates the value written to the device address. When the value is increased or decreased, the slider
display position also changes.
The slider moves between a user-defined minimum and maximum value.
The input value increases and decreases while the button is depressed. The value of the slider at the displayed
position is written to the device address when the button is released.
9 Potentiometer
HG3G
HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T
HG4G HG1G HG1P
HG2J-7U
D0 : 0
Value of slider at
displayed position
105
127
Value of slider at
displayed position
D0 :
127
MICRO/I
D0 :
Value of slider at
displayed position
0
0
Write to device address
External device
Default state Press R-button
Release
Press L-button
Release
Operation
and view
Slider
Stop
Moves rightStop
Stop
Moves left
Value
Increases Decreases
Action
Write
Write
The slider display position does not change when the destination device address value changes unless it
was changed by the Potentiometer buttons. However, immediately after the screen is switched and
immediately after the part is displayed on the screen, the slider is displayed at the position specified by the
value of the destination device address.
