3 Picture Display
10
Data Displays
3.2 Picture Display Configuration Procedure
This section describes the configuration procedure for Picture Displays.

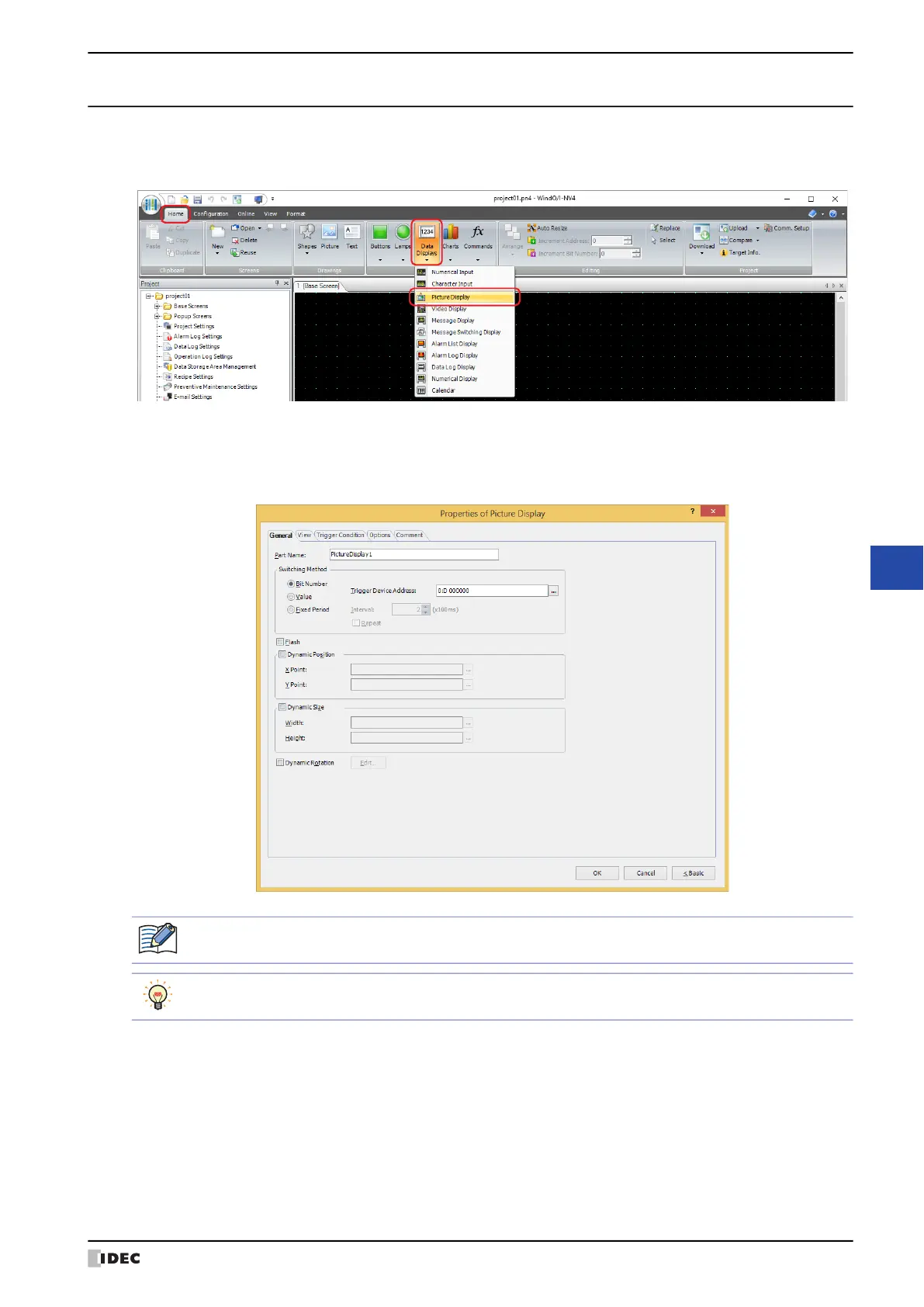

1 On the Home tab, in the Parts group, click Data Displays, and then click Picture Display.
2 Click a point on the edit screen where you wish to place the Picture Display.
3 Double-click the placed Picture Display and a Properties dialog box will be displayed.
4 Change the settings on each tab as necessary.
The Trigger Condition tab and Options tab only appear in Advanced mode.
You can set the default for the Picture Display on the Default Preferences tab of the WindO/I-NV4
Options dialog box. For details, refer to Chapter 2 “Default Preferences Tab” on page 2-63.
