WindO/I-NV4 User’s Manual 12-9
2 Word Write Command
12
Commands
2.1 How the Word Write Command is Used

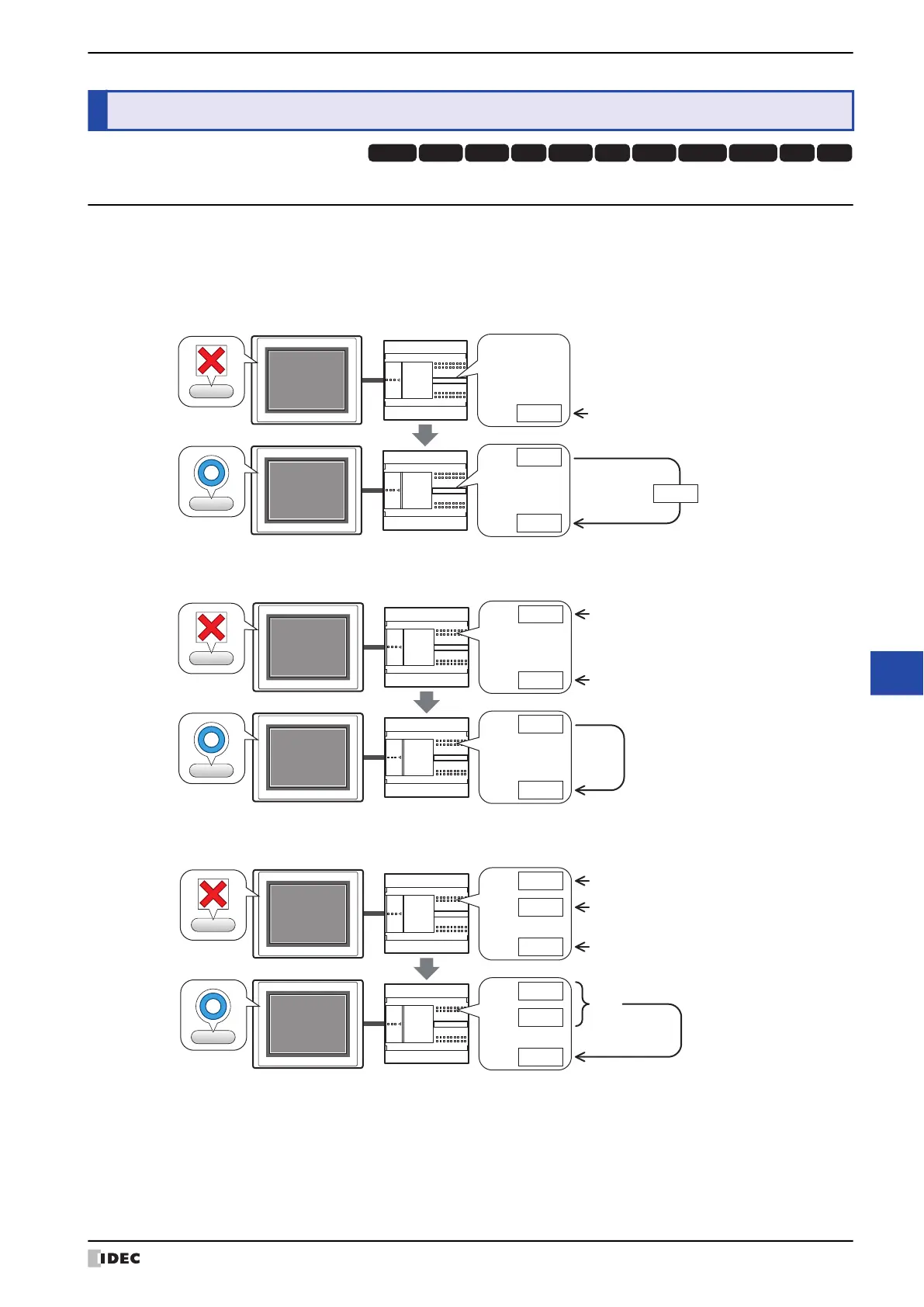

Writes a value to a word device. Can be used to indirectly specify the destination address number or to perform
operations on the written value.
• Writes a fixed value to a word device when the trigger condition is satisfied.
• Writes the value of device address to a word device when the trigger condition is satisfied.
• Performs arithmetic on the value to write before writing it to a word device when the trigger condition is satisfied.
2 Word Write Command
HG3G HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T HG4G HG1G HG1P HG2J-7U
MICRO/I
External device
D1=
0
100
D1=
100
Write
Destination word device
100
Value
Condition
Condition
SatisfiedSatisfiedSatisfied
Not satisfiedNot satisfiedNot satisfied
MICRO/I
External device
D0= 123
D1=
0
D0=
123
D1=
123
Move
Value in device address
Destination word device
Condition
Condition
SatisfiedSatisfiedSatisfied
Not satisfiedNot satisfiedNot satisfied
MICRO/I
External device
D0= 100
D1=
23
D2=
0
D0=
100
D1=
23
D2=
123
Add
Write
Value to write
Operator value
Destination word device
Condition
Condition
Satisfied
Satisfied
Satisfied
Not satisfied
Not satisfied
Not satisfied
