2 Multimedia Function Configuration Procedure
22-6 WindO/I-NV4 User’s Manual
2.2 Configuring the Event Recording Function

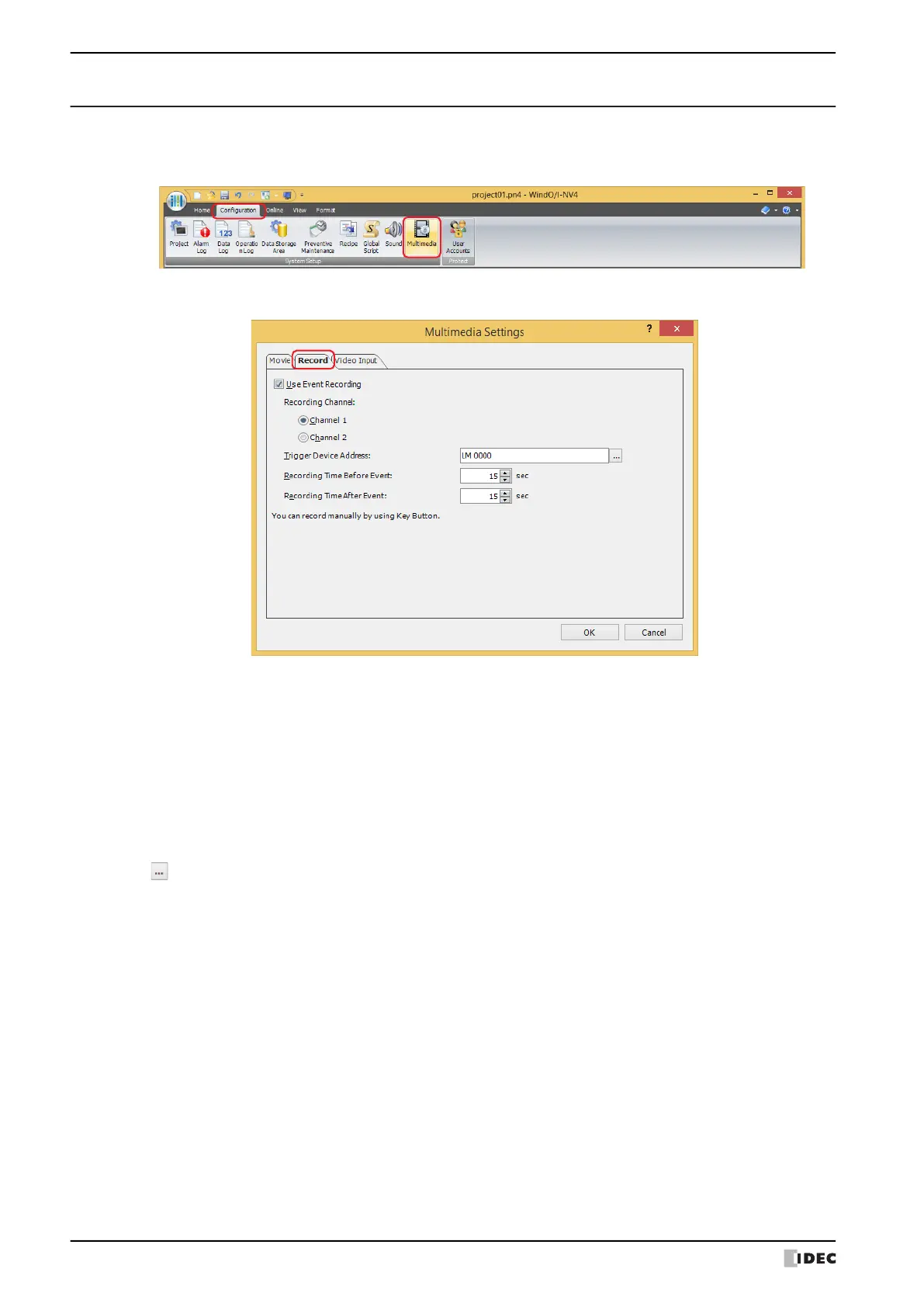

1 On the Configuration tab, in the System Setup group, click Multimedia.
The Multimedia Settings dialog box is displayed.
2 Click the Record tab.
3 Select the Use Event Recording check box.
4 Select a recording channel
*1
or a recording target
*2
.
■ Recording Channel
*1
Selects Channel 1 or Channel 2 to record a video only (no audio) out of the signals input from the device.
■ Recording Target
*2
In the signals input from the device, select Video and Audio or Video only (No Audio) as the recording target.
5 Specify the bit device that will trigger the start of recording in Trigger Device Address.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2 “5.1 Device
Address Settings” on page 2-70.
6 Specify the recording time before and after the event occurs.
■ Recording Time Before Event
With the point in time when the value of device address changes from 0 to 1 as the start point, this setting specifies
how many seconds to record before the start point (1 to 15 sec.).
■ Recording Time After Event
Specifies the time (1 to 15 sec.) until recording stops from when the value of device address changed from 0 to 1.
7 Click OK.
The Multimedia Settings dialog box closes.
This concludes configuring the Record function.
*1 HG5G/4G/3G-V only
*2 This is applicable for HG4G/3G with a video interface only.
To Next Page
