2 Sound Function Configuration Procedure

21-2 WindO/I-NV4 User’s Manual

This section describes the configuration procedure for the Sound function.

2.1 Configuring Sound Files & Trigger Conditions

● To play a sound file when a value of device address changes from 0 to 1

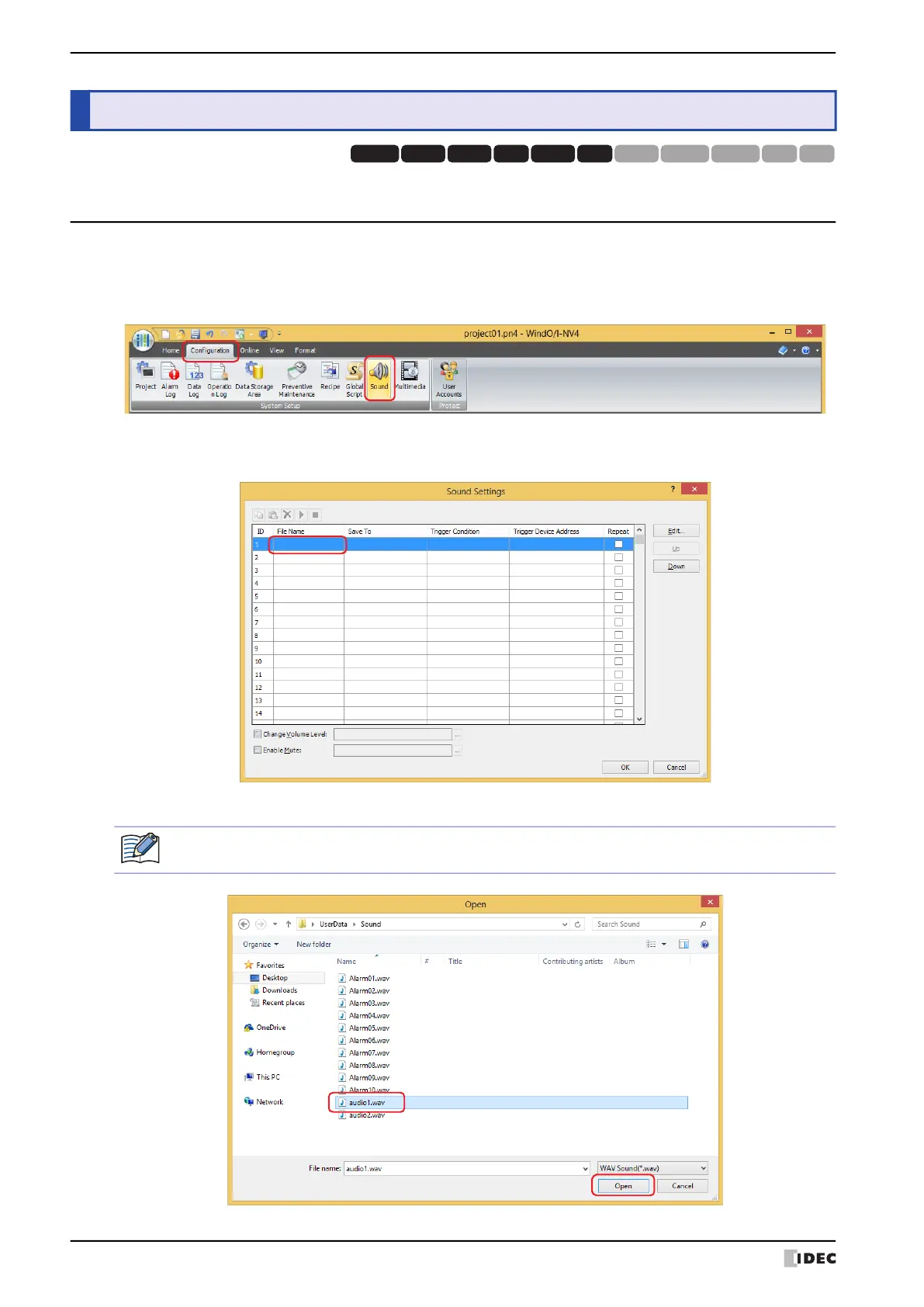

1 On the Configuration tab, in the System Setup group, click Sound.

The Sound Settings dialog box is displayed.

2 Double-click the cell in the File Name column to register a sound file.

The Open dialog box is displayed.

3 Specify the sound file to register and click Open.

2 Sound Function Configuration Procedure

HG3G

HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T

HG4G HG1G HG1P

HG2J-7U

Only sound files with file names that use alphanumeric characters are supported. However, if Save To is set

to Internal Memory, file names with double-byte characters and symbols are also supported.
