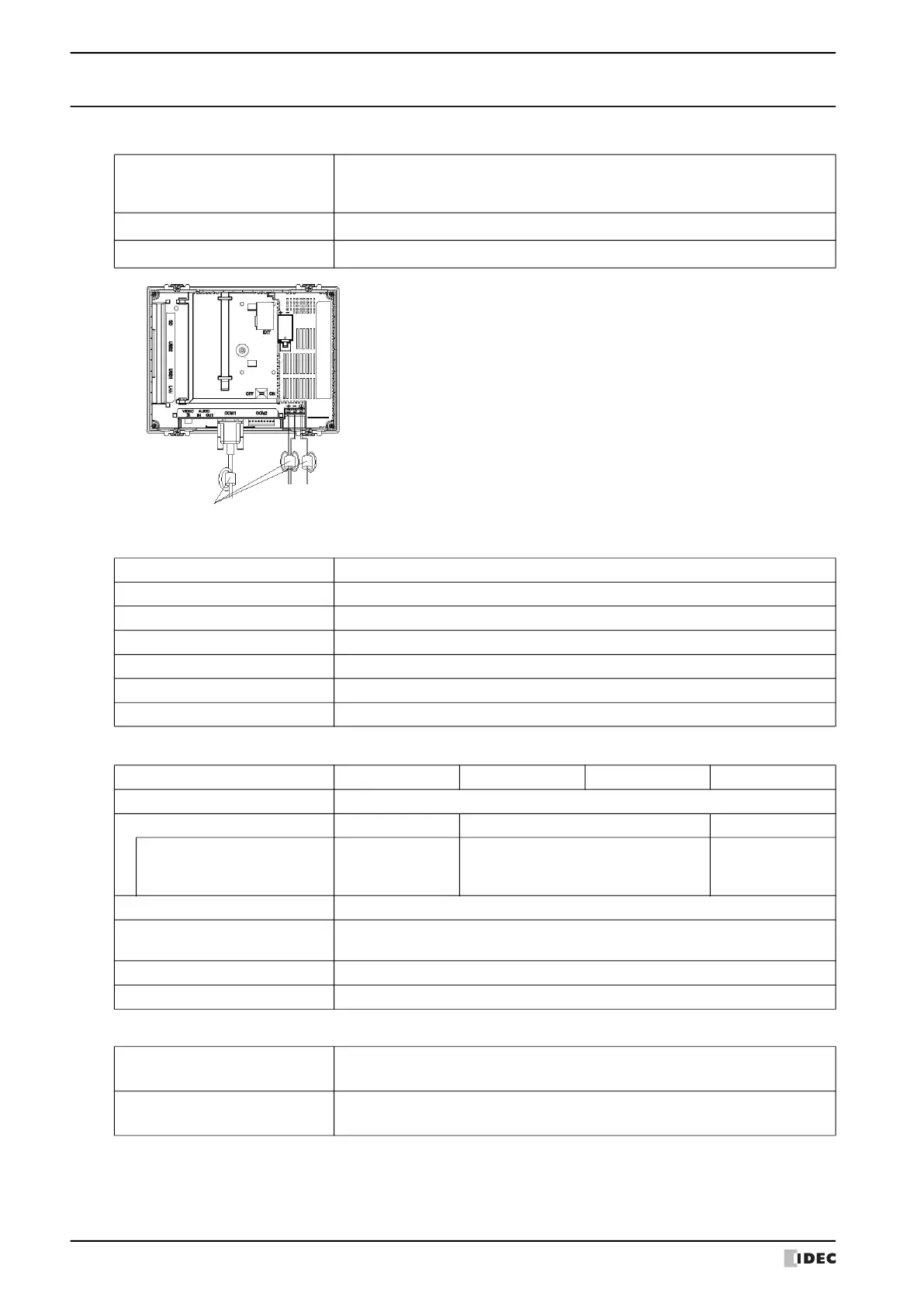

3.5 Specifications
■ Applicable Standards
■ Environmental Specifications
■ Electrical Specifications
■ Construction Specifications
*1 When using the HG4G/3G, HG2G-5F as the EMC Standard Approved Products, or when using the HG4G/3G, HG2G-5F as the
Ship Classification Standard Approved Products, attach a ferrite core (ZCAT3035-1330 manufactured by TDK Corporation) to
the power cables and the communication cables.
Safety Standard
UL508, ANSI/ISA-12.12.01
CSA C22.2 No.142 (c-UL)
CSA C22.2 No.213 (c-UL)
EMC Standard
*1
IEC/EN 61131-2
Ship Classification Standard
*1
ABS, DNV, LR, NK
FerriteCore：ZCAT3035-1330（TDK）
Operating Temperature 0 to +50°C
Operating Humidity 10 to 90% RH (no condensation)
Storage Temperature -20 to +60°C
Storage Humidity 10 to 90% RH (no condensation)
Altitude 0 to 2000m
Pollution Degree 2
Corrosion Immunity Free from corrosive gases
Type No. HG4G HG3G-A HG3G-8 HG2G-5F
Rated Voltage 24V DC
Power Consumption 27W maximum 25W maximum 19W maximum
When not using USB Interface
(USB2) and Expansion Module
Interface (EXT)
18W maximum 15W maximum 10W maximum
Power Voltage Range 20.4 to 28.8V DC
Allowable Momentary Power
Interruption
10 ms maximum
Inrush Current 30A maximum
Dielectric Withstand Voltage AC1000V, 10mA, 1 minute (between power and earth terminals)
Vibration
5 to 8.4Hz amplitude 3.5mm, 8.4 to 150Hz acceleration 9.8m/s
2
10 times on each of three mutually perpendicular axes (IEC61131-2)
Shock
147m/s
2
, 11ms (3 shocks on each of three mutually perpendicular axes)
(IEC61131-2)
