3 Preventive Maintenance Settings Dialog Box
17-8 WindO/I-NV4 User’s Manual

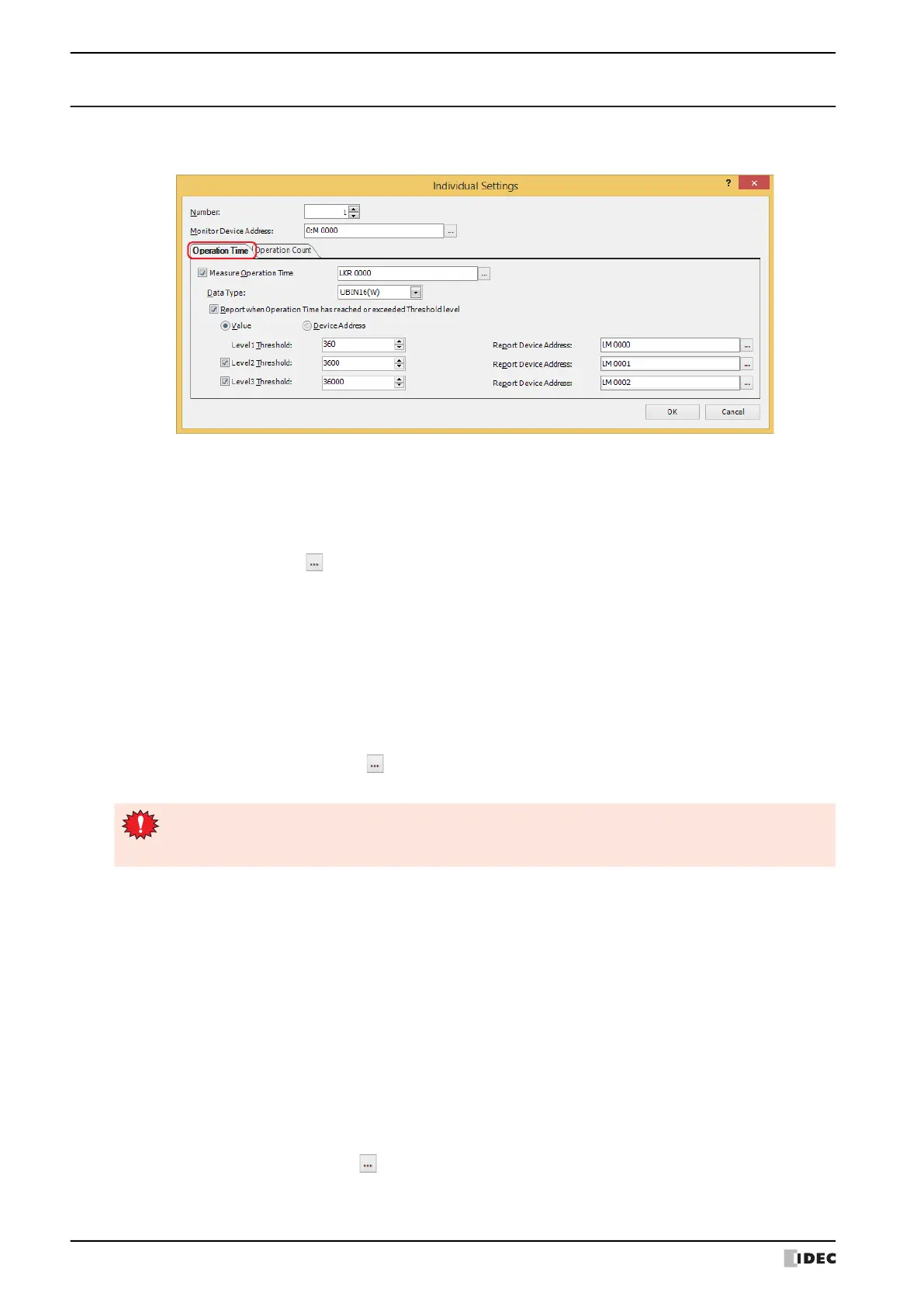

3.2 Individual Settings Dialog Box
The Individual Settings dialog box is used to configure the operation time and operation count settings for each
monitored device address.
●
Operation Time Tab
The Operation Time tab is used to configure the destination device address for the counted operation time and the
report conditions when the threshold is reached or exceeded.
■ Measure Operation Time
Select this check box to count the operation time.
■ Data Type
Select the data type for the Operation Time Device Address as UBIN16(W) or UBIN32(D). For details, refer to
Chapter 2 “1.1 Available Data” on page 2-1.
■ Report when Operation Time has reached or exceeded Threshold level
Select this check box to report when the counted operation time reaches or exceeds the threshold.
■ (Data Type)
Selects the type of data for the threshold.
■ Level 1
Configures the level 1 threshold and Report Device Address.
Number: Shows the number selected in Settings in the Preventive Maintenance Settings dialog
box. To change the set number, specify a number (1 to 256).
You can only specify a number of the amount of devices configured by Number of Items
in the Preventive Maintenance Settings dialog box.
Monitor Device Address: Specifies the bit device or the bit number of the word device to count the operation time or
operation count.
Click to display the Tag Editor. For the device address configuration procedure, refer to
Chapter 2 “5.1 Device Address Settings” on page 2-70.
(Operation Time Device Address): Specifies the destination device address for the counted operation time. You can
only specify an HMI Keep Register (LKR).
Click to display the Tag Editor. For the device address configuration procedure,
refer to Chapter 2 “5.1 Device Address Settings” on page 2-70.
If you specify the same device address as the Operation Time Device Address for multiple numbers, the
counted operation time is added in total by all the monitored device addresses for each number and the
function will not be able to count normally.
Value: Uses a constant as the threshold.
Device Address: Uses a value of device address as the threshold.
Threshold Specifies the time as a constant or a device address that is the criterion for reporting at
level 1. For a constant, the range that can be set varies based on the data type. For a device
address, click to display the Tag Editor. For the device address configuration procedure,
refer to Chapter 2 “5.1 Device Address Settings” on page 2-70.
To Next Page
